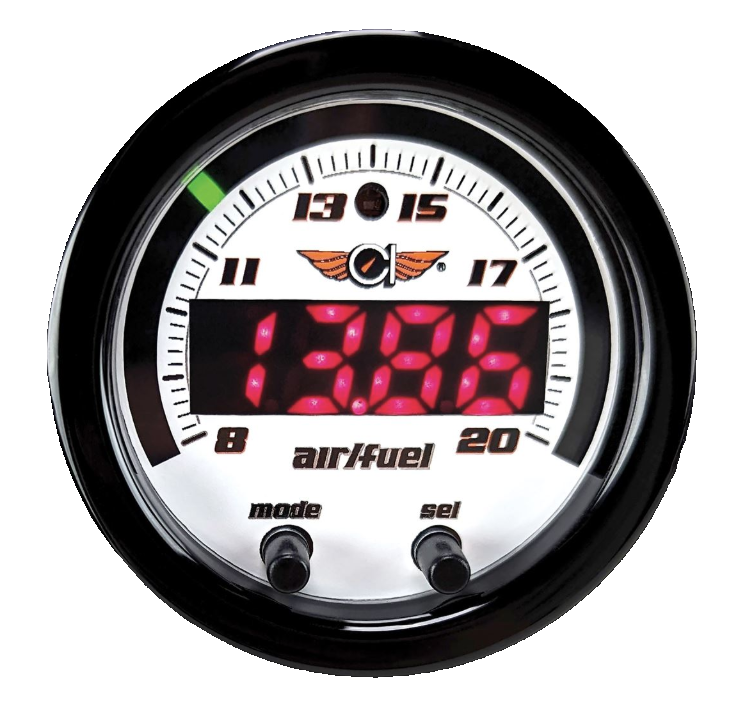

Classic Instruments Velocity White Digital 2-1/8" Air Fuel Ratio Gauge - VS194WD
$220.95
Skip to product information
Classic Instruments Digital Air Fuel Ratio gauge provides the fastest response with patented technology. Its slim depth increases its application base, and the single-board design adds greater durability. Additional features include: X-Series Wideband UEGO AFR Controller Gauge, the fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors, patented X-Digital wideband technology (Patent 9,575,030), includes FAE oxygen sensor and wideband UEGO controller, factory calibrated resistor that does not require free-air calibration, though it allows for free-air calibration as the sensor ages if desired, compatible with vehicle/system voltages up to 16V, 0-5V, RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders, can display AFR values in hundredths of %, 52mm gauge diameter and slim 0.825" gauge depth, gauge cup depth only .200" deep, auto-dimming feature, user-configurable display via buttons on the gauge face for changing AFR values, and 3- or 4-digit display, locking connectors, and made in the USA.
Classic Instruments Velocity White Digital 2-1/8" Air Fuel Ratio Gauge - VS194WD
$220.95
Features:
- Compatible with vehicle/system voltages up to 16V
- Gauge cup depth only .200” deep!
- Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
- 52mm gauge diameter and slim 0.825” gauge depth
- Auto dimming feature
- 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and
- Patented X-Digital wideband technology (Patent 9,575,030)
- X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
- Includes FAE oxygen sensor and wideband UEGO controller
- User configurable display via buttons on the gauge face for changing AFR values, and 3or 4-digit display
- Made in the USA
- Locking connectors
- Can display AFR values in hundredths of %
- Daisy-chaining multiple controllers up to 16 cylinders
