Earl’s Adjustable Coolant Cross-Over Tube -16 AN x(2) -12 AN O-Ring Port Swivels - LS0037ERL
$299.95
Skip to product information

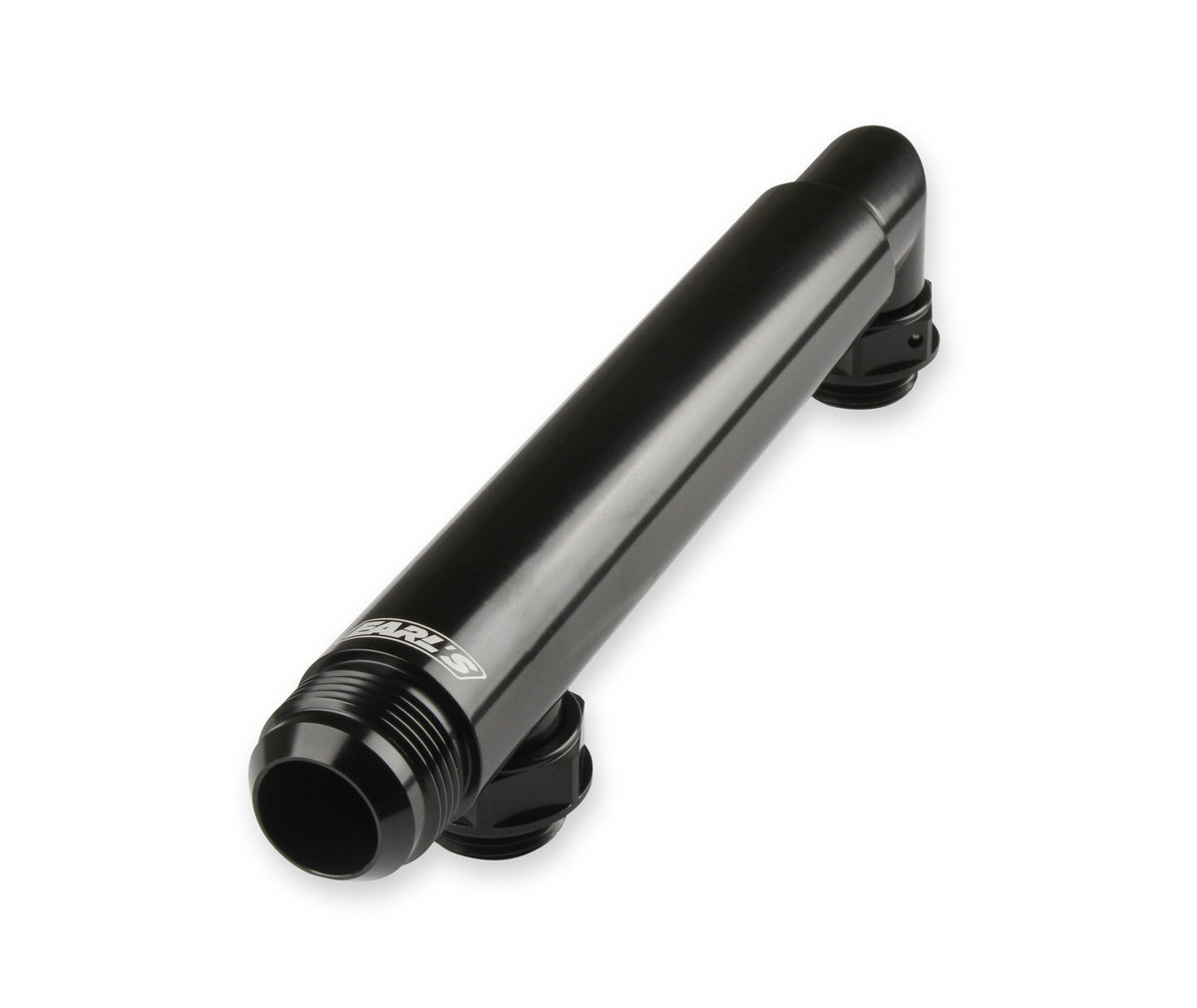

Earls Adjustable Coolant Cross-Over Tube simplifies the plumbing of a remote mounted electric water pump by eliminating T's, Y-Blocks, and extra hose ends. The design of this special cross-over tube allows adjustable length & can be used as a coolant inlet or outlet on your GM LS Engine. Features (1) -16 AN Male Flare & (2) -12 AN Male O-Ring Port Swivels. Billet aluminum construction w/ two O-ring seals & black anodized finish.
The -12 AN O-ring port swivels eliminate adapters & provides a lower profile for extra clearance. This part can be combined with the block adapters (part # LS0022ERL), and a second style coolant cross-over (part # LS0035ERL) for a simple & clean plumbing solution when using a remote mounted electric water pump.
Earl’s Adjustable Coolant Cross-Over Tube -16 AN x(2) -12 AN O-Ring Port Swivels - LS0037ERL
$299.95
Features:
- Similar in Design to LS0035ERL Except w/ -12 AN O-Ring Port Fittings (Eliminates the Need for ORB adapters – Low Profile for Extra Clearance)
Sizes and Connection Specifications:
- Product Details: Adjustable Length Range - 6.8" to 10.5" (c/l to c/l of -12 O-Ring Port Swivels), Billet Aluminum w/ (2) O-ring seals. Ideal for use w/ LS0022ERL & Remote Mounted Electric Water Pump
- Adapter AN Size ( C ): 16 AN MALE (AN -16 thread: 1-5/16-12, 12 TPI)
- Adapter Port Size ( B ): 1-1/16-12 (AN 12) (AN -12 thread: 1-1/16-12, 12 TPI)
- Adapter Port Size (A): 1-1/16-12 (AN 12) (AN -12 thread: 1-1/16-12, 12 TPI)
- Fitting Centers: 6.8" to 10.5"
- Overall Length: 9.8" to 13.5"
