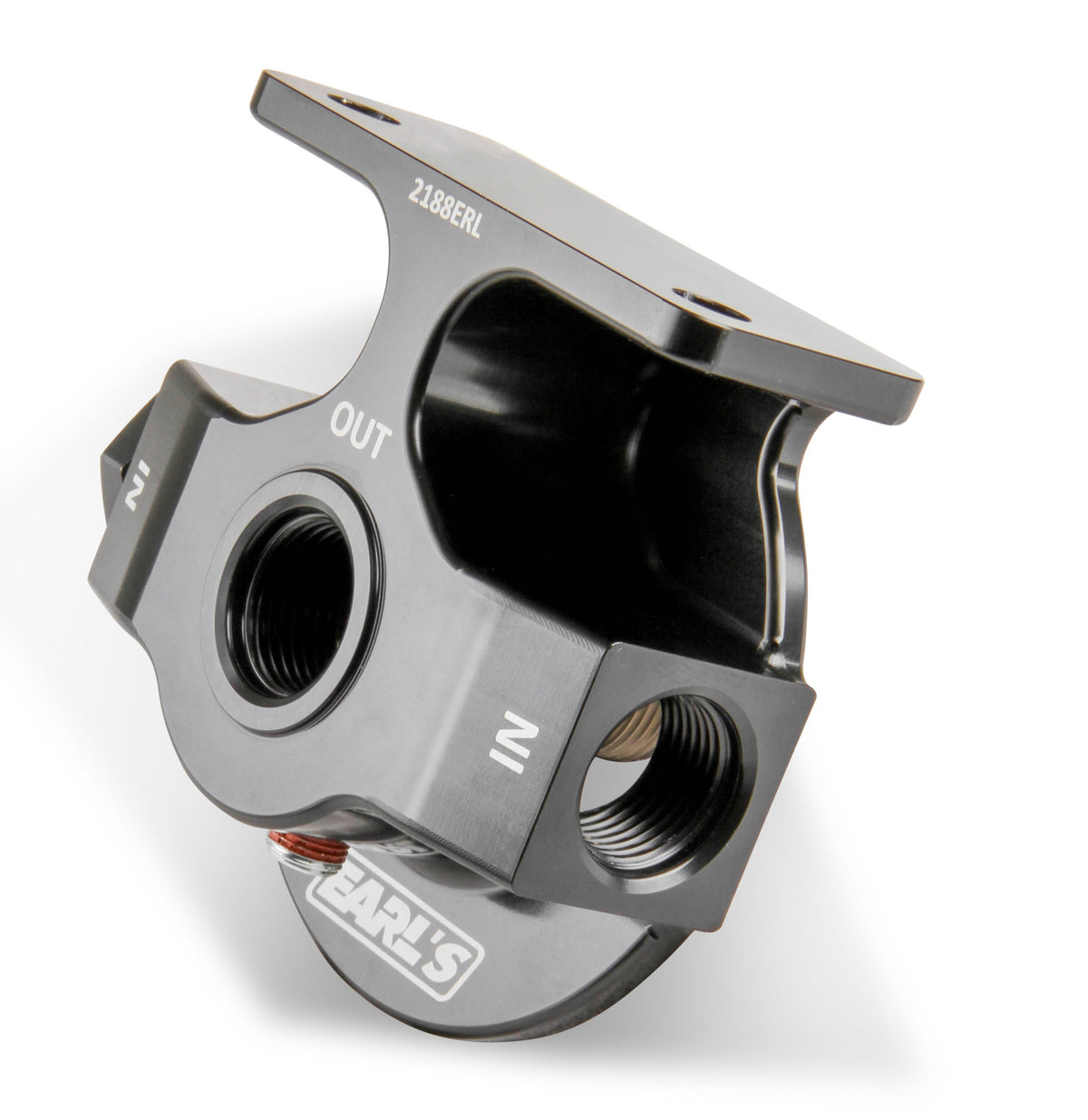

Earl’s Billet Remote Oil Filter Mount - 2188ERL
$124.95
Skip to product information
Move your oil filter to an easy to reach location with Earl's new Billet Remote Oil Filter Mount. This new filter mount features 10 AN O-ring ports, 1/8" NPT port, and dual inlets w/ top outlet for easy plumbing from either side. The kit includes the filter mount, plugs, and hardware. Lightweight aluminum with black anodized finish.
Earl’s Billet Remote Oil Filter Mount - 2188ERL
$124.95
Features:
- (3) 10 AN O-Ring Ports
- 1/8 NPT Port
- 2-Bolt Mounting
- Billet Aluminum
- Black Anodized
- Bolt Spacing: 2-Bolt w/ 2.860" c/l to c/l
- Dimensions: 3.750" Wide x 4.000" Long x 1.630" Tall
- Fits 13/16"-16 Oil Filter (fits Fram PH5 or HP4 Oil Filters)
- Inlet Ports on Both Sides for Easy Routing of Hoses
- Outlet Port on the Top
Sizes and Connection Specifications:
- Product Details: Billet Remote Oil Filter Mount Kit, Black Anodized, 10 AN O-Ring Ports
- Center Stud Size: 13/16-16
- Height: 1.630"
- Length: 4.000"
- Mount Hole Diameter: 3/8"
- O-Ring Diameter: 3.185"
- Port Size: 7/8-14 Female (-10 O-Ring Boss)
- Width: 3.750"
