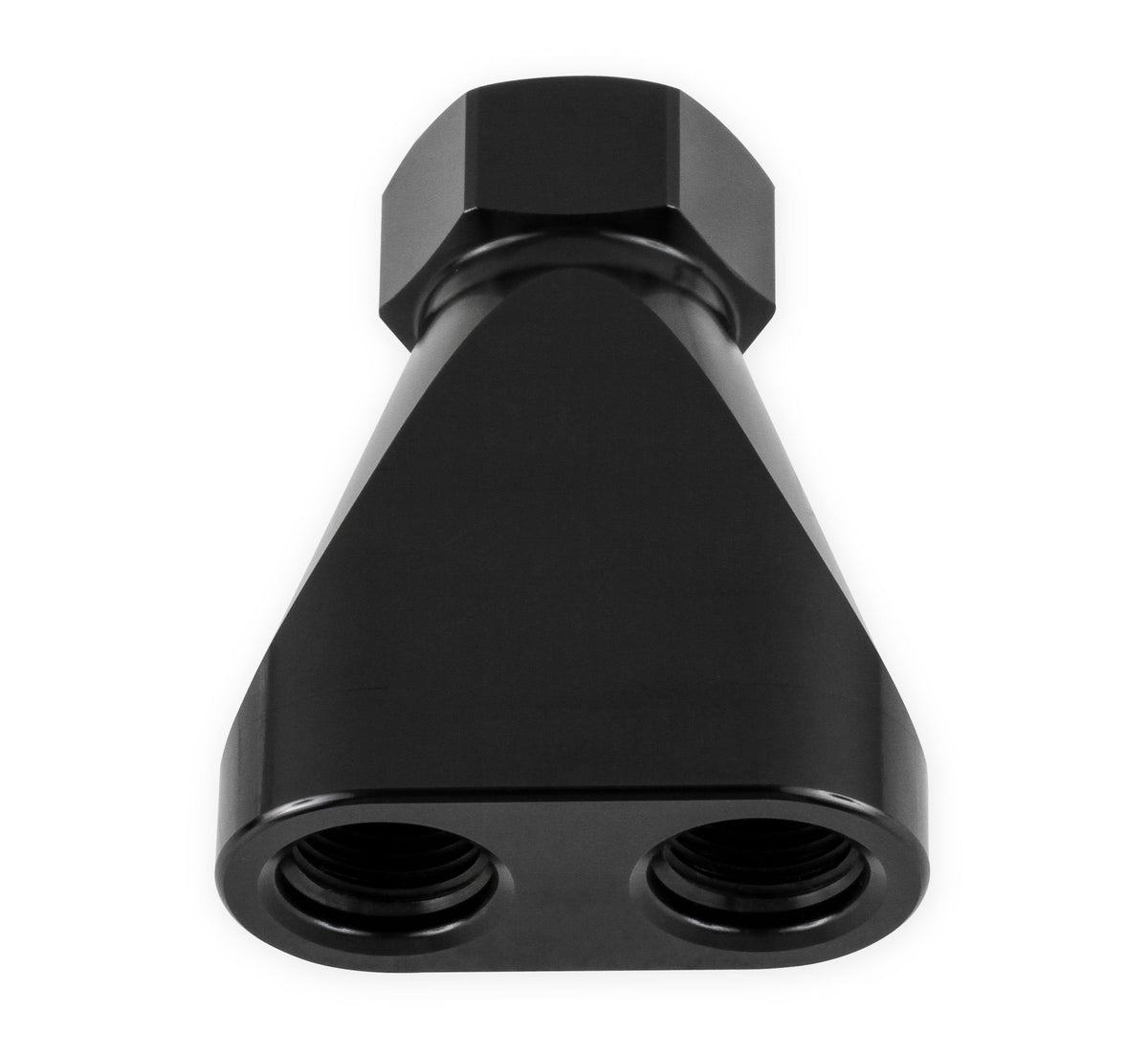

Earl’s Distribution Block - 100160ERL
$59.89
Skip to product information
Earl billet aluminum distribution blocks feature a modern compact design w/ a narrow shape, and smooth flow path for maximum flow. These parts are made from billet 6061-T6 aluminum w/ black anodized finish. The female AN O-ring ports are used w/ Earl's O-ring port adapters (available separately). The wrench hex allows for easy assembly & maintenance.
Earl’s Distribution Block - 100160ERL
$59.89
Features:
- Wrench Hex for Easy Assembly & Maintenance
Sizes and Connection Specifications:
- Product Details: Earls Billet Inline Distribution Block w/ -8 AN O-Ring Port to (2) -6 AN O-Ring Ports
- Adapter AN Size ( A ): 8 AN FEMALE (AN -8 thread: 3/4-16, 16 TPI)
- Adapter AN Size ( B ): 6 AN FEMALE (AN -6 thread: 9/16-18, 18 TPI)
- Adapter AN Size ( C ): 6 AN FEMALE (AN -6 thread: 9/16-18, 18 TPI)
- Adapter Type: Billet Y-Block
