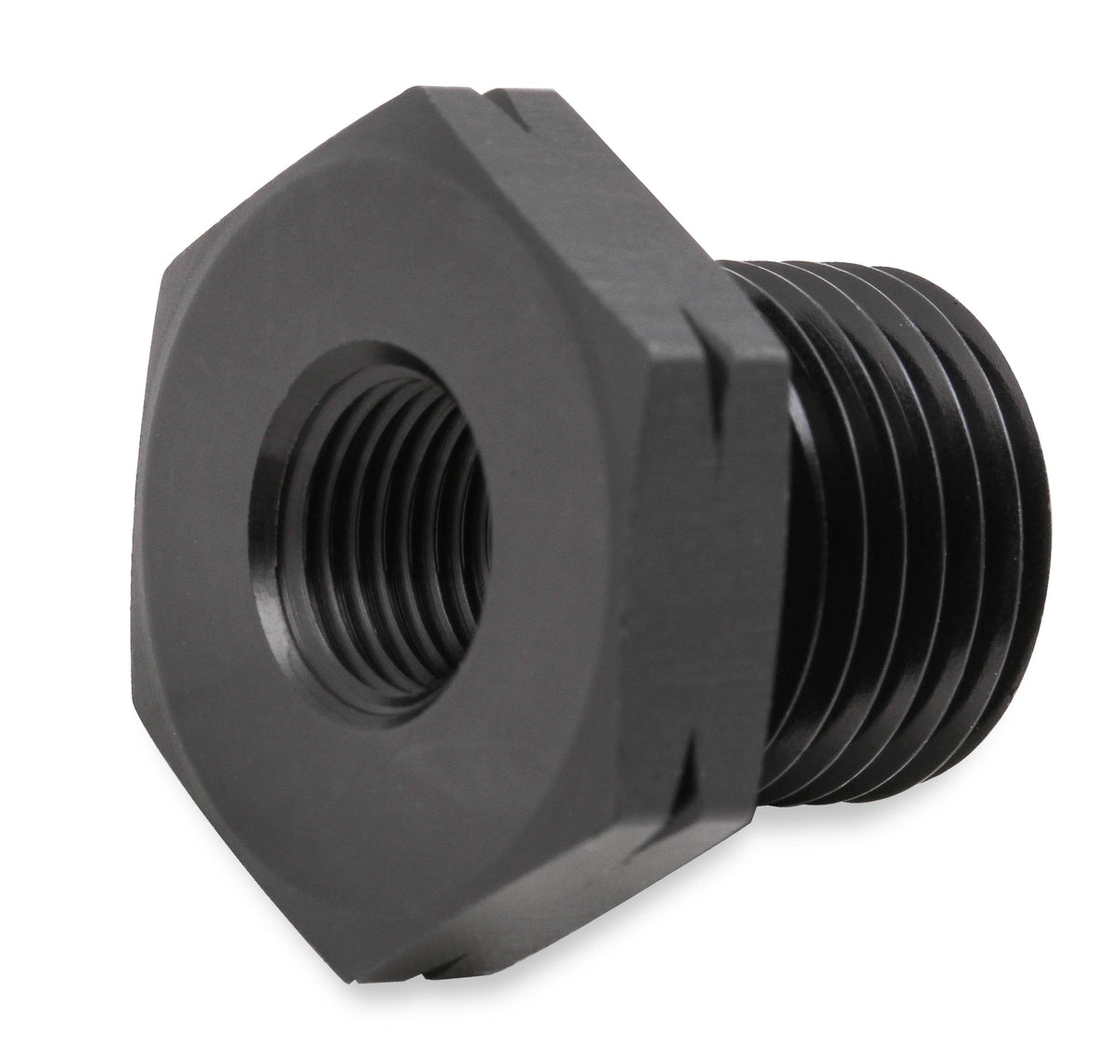

Earl’s GM LS Oil Pressure Gauge Adapter Fittings - Black - AT9919AUJERL
$14.88
Skip to product information
Earl's new adapter fittings are ideal for installing an after-market oil pressure gauge on GM LS engine swaps. These fittings screw directly into the M16 x 1.5mm oil passage on the rear of the GM LS engine block. Options are available to fit most after-market sending units or mechanical gauge hoses (1/8" NPT female, -3 AN male, or -4 AN male). Black anodized 2024-T8 aluminum construction. Made in the USA.
Earl’s GM LS Oil Pressure Gauge Adapter Fittings - Black - AT9919AUJERL
$14.88
Features:
- M16 x 1.5mm Fits GM LS Series Engine Blocks
- Choose From 1/8 NPT Female, -3 AN Male, or -4 AN Male
- Black Anodized Finish
- 2024-T8 Aluminum More Durable than 6061-T6
- Simple & Easy Adapter Fitting for Installing After-Market Gauges on GM LS Engines
- Can Also Be Used on Other M16 x 1.5mm Plumbing Applications
- Made in the USA
Sizes and Connection Specifications:
- Product Details: Earls Straight 1/8" NPT Female to M16 x 1.5mm w/ Crush Washer
- Adapter NPT Size ( A ): 1/8 NPT FEMALE (27 TPI NPT)
- Adapter Type: Oil Pressure Adapter
- Metric Thread ( B ): 16MM X 1.5
