Earl’s Oil Pressure Gauge Installation Kit - GM LS w/ 36" Long Hose - LS0032ERL
$70.99
Skip to product information

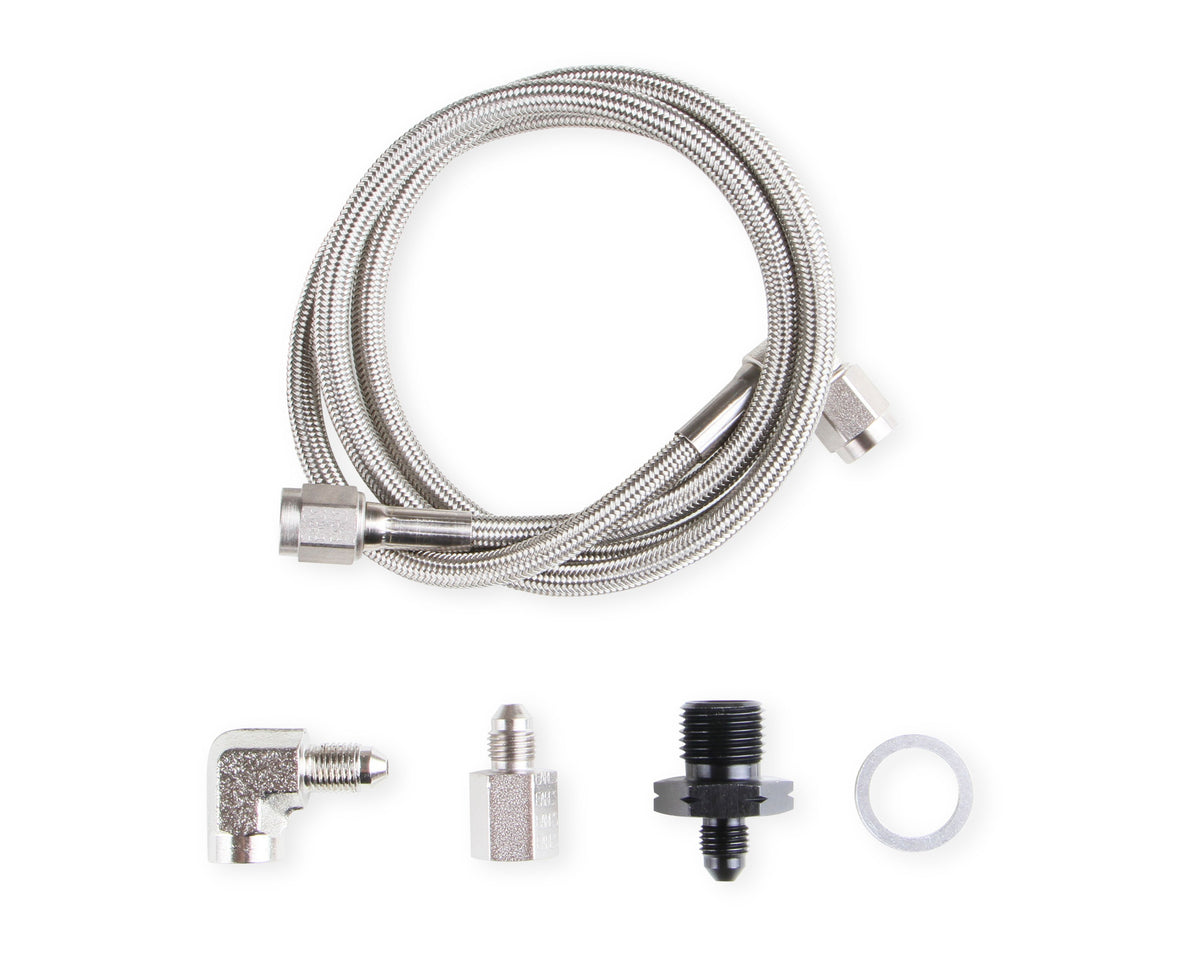

This handy kit from Earl's includes all the parts needed to install a mechanical oil pressure gauge on the GM LS engine. This kit includes the special 16mm x 1.5 adapter fitting w/ crush washer (fits oil passage at the top rear of the LS engine block), pre-made -3 AN Speed-Seal® hose assembly, and two adapters for the gauge end of the hose. Choose the kit that fits your vehicle application w/ 36", 48", or 72" long hose. This kit is ideal for engine swaps & race cars that use a mechanical oil pressure gauge w/ the GM LS engine.
Earl’s Oil Pressure Gauge Installation Kit - GM LS w/ 36" Long Hose - LS0032ERL
$70.99
Features:
- Fits GM LS Series Engines
Sizes and Connection Specifications:
- Product Details: Use w/ Mechanical Oil Pressure Gauge - Includes (3) Adapters & -3 AN Speed-Seal® Stainless Braided PTFE Lined Hose Assembly - 36" Long.
- Adapter AN Size ( B ): 3 AN MALE (AN -3 thread: 3/8-24, 24 TPI)
- Adapter NPT Size ( A ): 1/8 NPT FEMALE (27 TPI NPT)
- Adapter Type: Plumbing Kit
- Hose Length: 3 Feet
- Hose Size: 3 AN
