Earl’s Remote Electric Water Pump Plumbing Kit - LS0040ERL
$675.95
Skip to product information

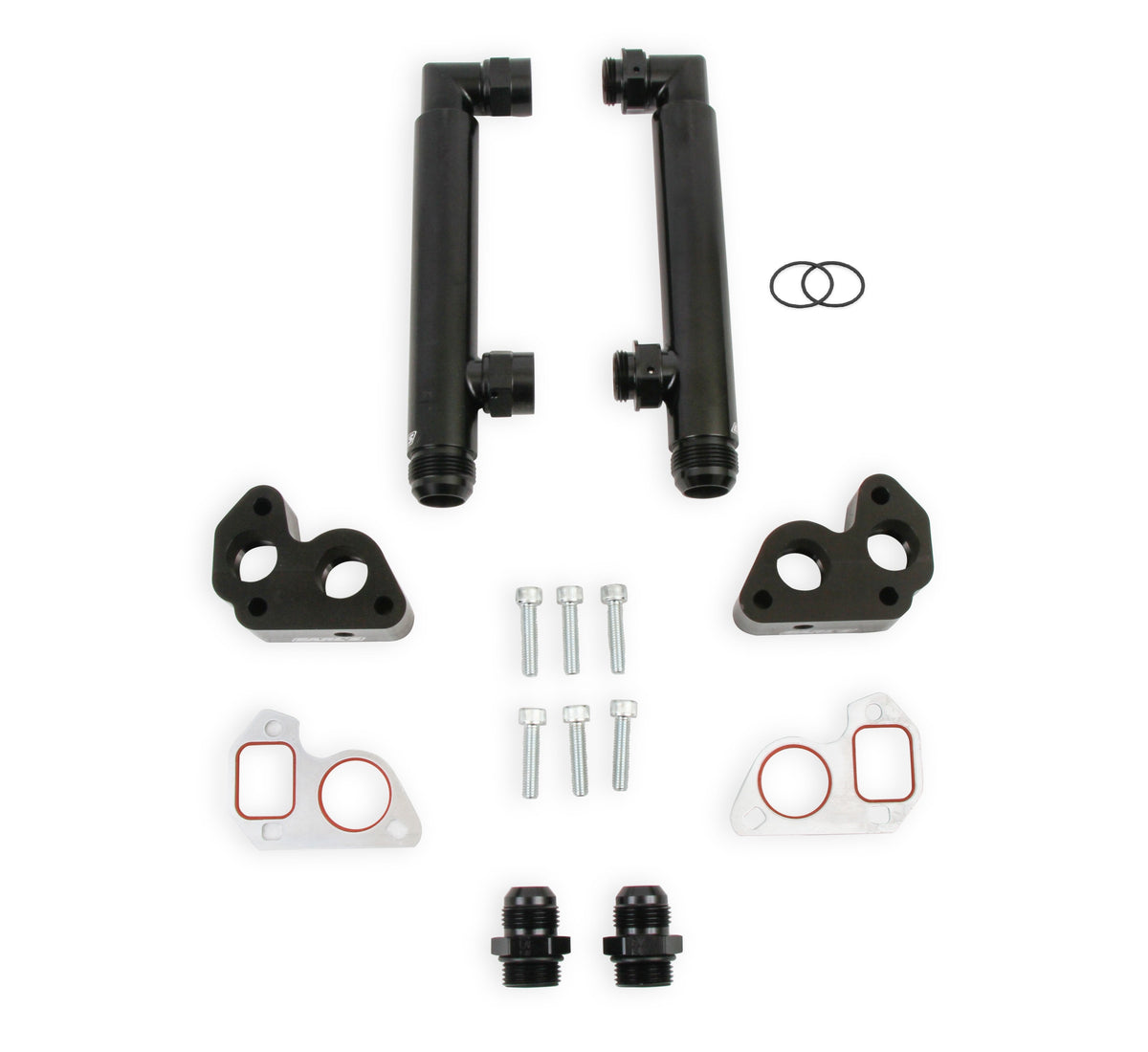

This plumbing kit simplifies the installation of a remote mounted electric water pump on the General Motors (GM) LS series engine. The special adjustable coolant cross-over tubes eliminate the Tees, Y-blocks & extra hose ends needed to make all the connections. The block adapters feature -12 AN O-ring ports for easy maintenance and a leak free seal. Kit includes (2) adjustable cross-over tubes, block adapters, (2) port fittings, and hardware. Billet aluminum construction w/ o-ring seals & black anodized finish.
Earl’s Remote Electric Water Pump Plumbing Kit - LS0040ERL
$675.95
Features:
- Block Adapters Have 1/8” NPT Ports for Connection of the Steam Tube Hose
Sizes and Connection Specifications:
- Product Details: Fits GM LS Series Engines w/ Remote Electric Water Pump, -16 AN Male Inlet & Outlet, Billet Aluminim w/ Black Anodized Finish
- Adapter AN Size ( A ): 12 AN FEMALE (AN -12 thread: 1-1/16-12, 12 TPI)
- Adapter AN Size ( B ): 12 AN FEMALE (AN -12 thread: 1-1/16-12, 12 TPI)
- Adapter AN Size ( C ): 16 AN MALE (AN -16 thread: 1-5/16-12, 12 TPI)
- Adapter Port Size ( B ): 1-1/16-12 (AN 12) (AN -12 thread: 1-1/16-12, 12 TPI)
- Adapter Port Size (A): 1-1/16-12 (AN 12) (AN -12 thread: 1-1/16-12, 12 TPI)
- Fitting Centers: 6.8" to 10.5"
- Overall Length: 9.8" to 13.5"
