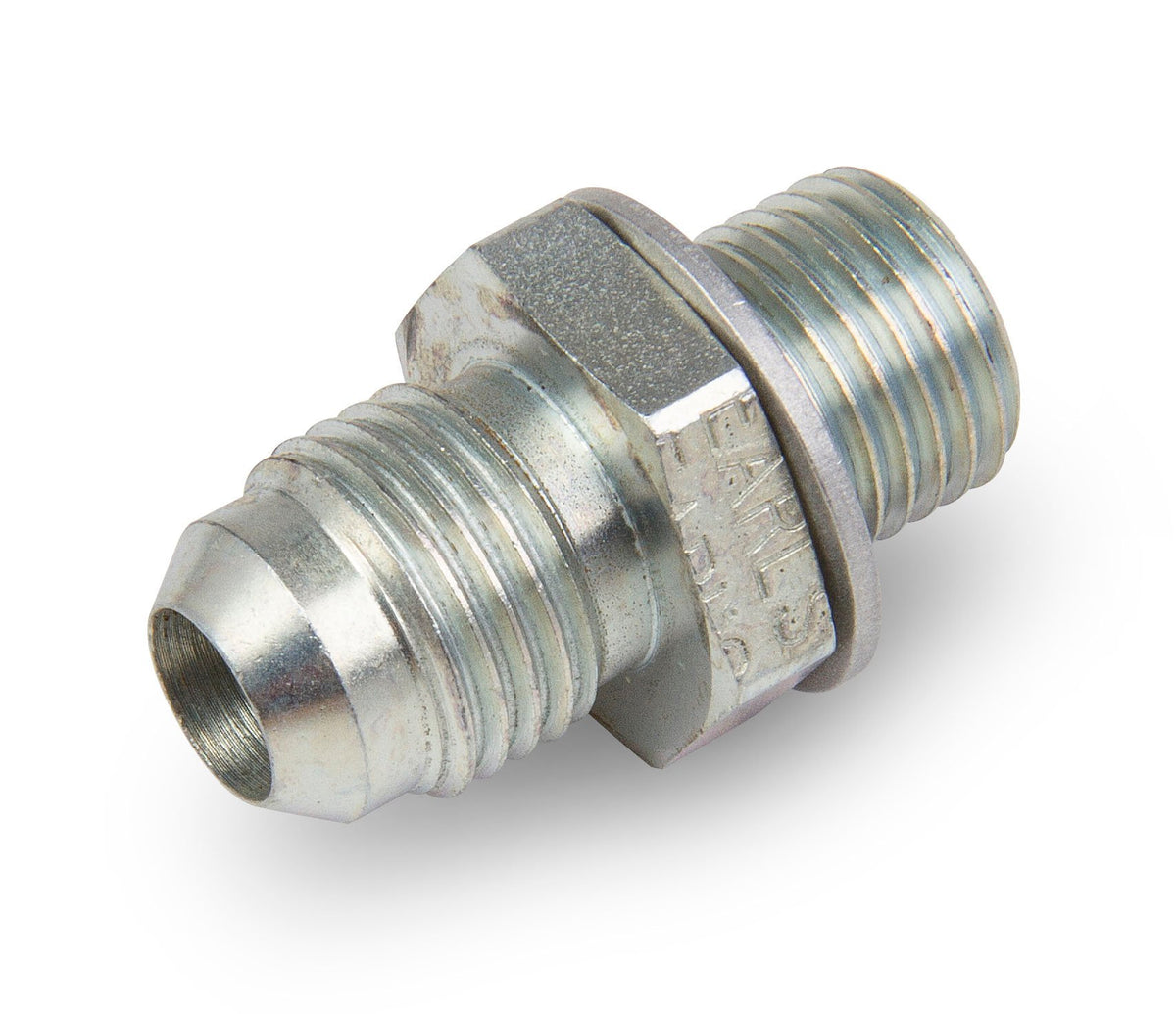

Earl’s Straight Transmission Adapter -6 Male to 1/4-18 NPSM Male - Short (Front) - 961980ERL
$20.89
Skip to product information
There are always clearance challenges when doing an engine swap. One of these is routing the transmission cooler lines off the side of the transmission while cleaning the trans tunnel. Earl's makes this easier with their line adapters. Integrating into the GM transmission and adapting to AN lines allows additional clearance and freedom that the original hard lines cannot. Adapters are available for the popular GM Transmissions 4L80E (Fits Transmissions w/ 1/4-18 NPSM Threads Short/Front). Order Two adapters (one short for the front and one long for the rear to match the threads on your transmission). The thread size varies depending on the application.
Earl’s Straight Transmission Adapter -6 Male to 1/4-18 NPSM Male - Short (Front) - 961980ERL
$20.89
Features:
- Nickel-plated steel construction
- Includes crush washer
- 1/4"-18 threads
- Short Adapter (4L80E Front)
- GM changed thread pitch in 1997 - confirm thread pitch on transmission before purchase!
Sizes and Connection Specifications:
- Product Details: Earls Transmission Adapter, One Adapter w/ Crush Washer, Fits 4L80E (Some 1997 & Later) w/ 1/4-18 threads - Short (Front), Nickel Plated Steel
- Adapter AN Size ( A ): 6 AN MALE (AN -6 thread: 9/16-18, 18 TPI)
- Adapter NPT Size ( B ): 1/4-18 NPSM MALE (18 TPI NPT)
- Adapter Type: Transmission Cooler
