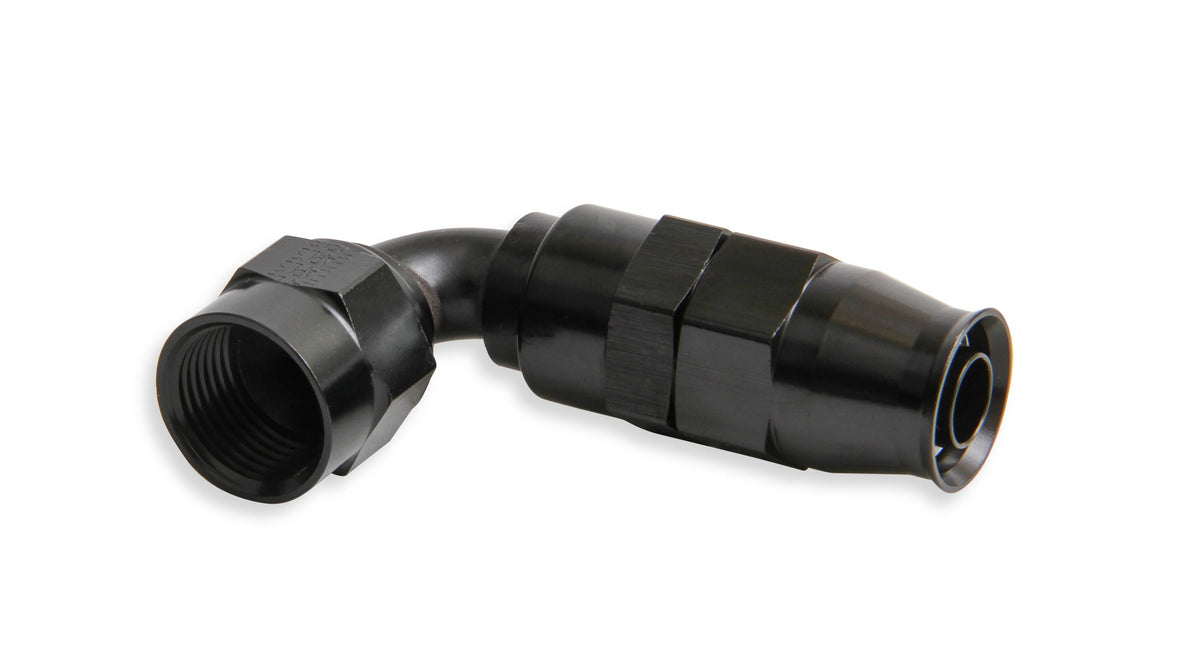

Earl’s UltraPro Hose End - 629120ERL
$135.95
Skip to product information
Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and fluoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.
Earl’s UltraPro Hose End - 629120ERL
$135.95
Features:
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
- Available Dynamic Swivel, technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
- Available in Twist-on and Crimp-on styles for more plumbing options at home or at the track!
- Black Anodized
- Designed to withstand harsh environments, brutal vibration, high flow requirements and extreme pressures!
- High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
- Internal seals are a‚uoroelastomer material which is resistant to all known fuel, oil and coolant!
- SAE port, jump size, and Wiggins connector adapter/hose-ends available
- Straight, 30º, 45º, 60º, 90º, 120º, 150º, and 180º angles available
- Traditional Mil-Spec Bent tube design for unmatched strength and flow!
- UltraPro bent tube hose-ends are dip-brazed for a permanent and robust bond!
Sizes and Connection Specifications:
- Product Details: -20 AN Twist-on (Dynamic Swivel) 90 Degree Bent Tube Hose-End
- AN Thread: 20 AN (AN -20 thread: 1-5/8-12, 12 TPI)
- Angle: 90 Degree
- Compatible Hose: UltraPro
- Fitting to Hose Mate Type: Twist On
- Hose End Family: UltraPro - Twist On
- Hose End Series: 62
- Hose End Size: 20 AN (AN -20 thread: 1-5/8-12, 12 TPI)
- Hose Size: 20 AN (AN -20 thread: 1-5/8-12, 12 TPI)
