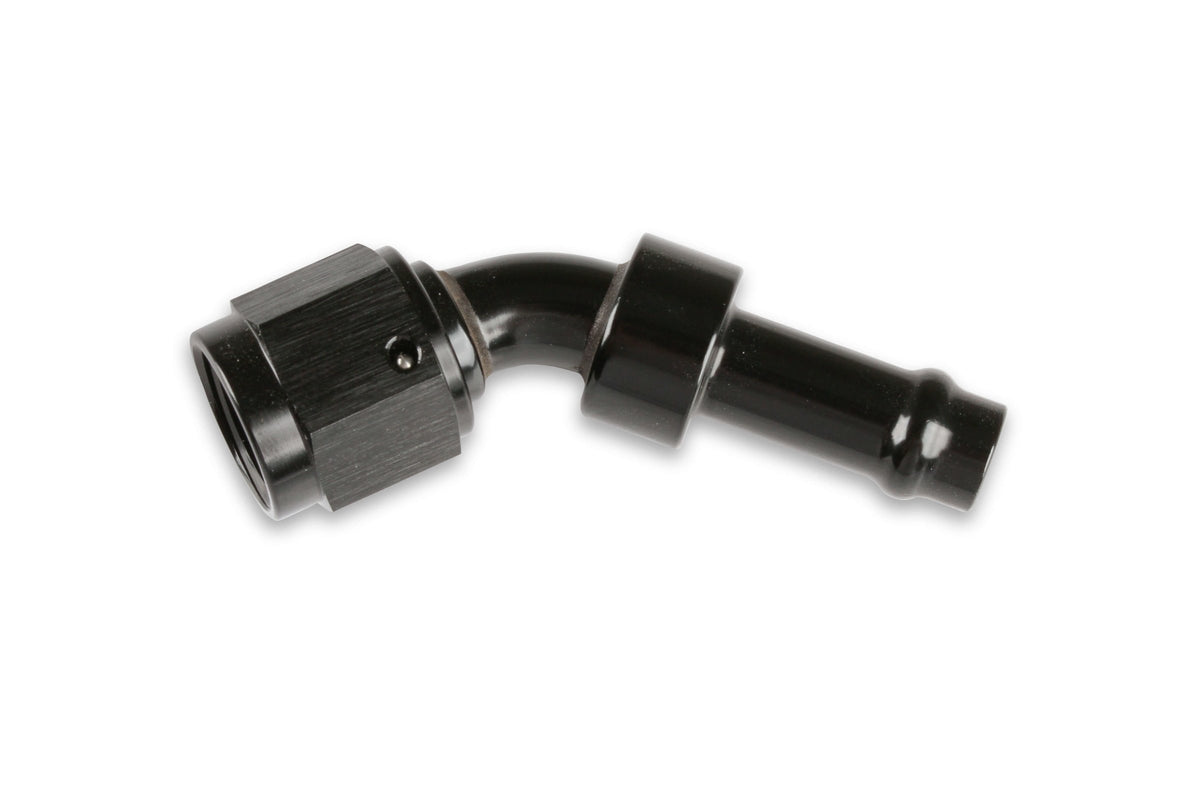

Earl’s Vapor Guard™ Hose End - 754166ERL
$16.43
Skip to product information
Vapor Guard hose ends feature a special smooth retention bead that retains the hose under pressure while assuring the hose liner is not damaged. They're black brite-dip anodized for good looks and corrosion protection. Assembly is a snap! Simply cut the hose, push it on and tighten the clamps! Put Earl's Vapor Guard™ in your arsenal and defend your ride from modern fuels!
Earl’s Vapor Guard™ Hose End - 754166ERL
$16.43
Features:
- Aluminum AN style, NPT, and O-ring port hose ends
- Black bright-dip anodizing offers long life even when used with today's harsh fuels
- Brazed bent tube design provides unsurpassed strength
- Special retention bead retains hose under pressure whileassuring hose liner is not damaged
- Available in 5/16 & 3/8 Sizes
- Easy assembly of hose to hose ends w/ clamps
- Single & dual ear crimp style and screw style stainless steel hose clamps available for a secure assembly
Sizes and Connection Specifications:
- Product Details: -6 45 DEG TO 3/8" VAPOR GUARD HOSE END
- AN Thread: 6 AN (AN -6 thread: 9/16-18, 18 TPI)
- Angle: 45 Degree
- Compatible Hose: Vapor Guard
- Fitting to Hose Mate Type: Barb & Band Clamp
- Hose Barb: 3/8"
- Hose End Family: Vapor Guard
- Hose End Series: 75/78
- Hose Size: 3/8
- Thread Size: 6AN Female (AN -6 thread: 9/16-18, 18 TPI)
