Earl's Vapor Guard hose ends feature a special smooth retention bead that retains the hose under pressure while assuring the hose liner is not damaged. They're black brite-dip anodized for good looks and corrosion protection. Assembly is a snap! Simply cut the hose, push it on and tighten the clamps! Put Earl's Vapor Guard™ in your arsenal and defend your ride from modern fuels!
Earl’s Vapor Guard™ Hose End - 785056ERL
$14.90
Features:
- Single & dual ear crimp style and screw style stainless steel hose clamps available for a secure assembly
Sizes and Connection Specifications:

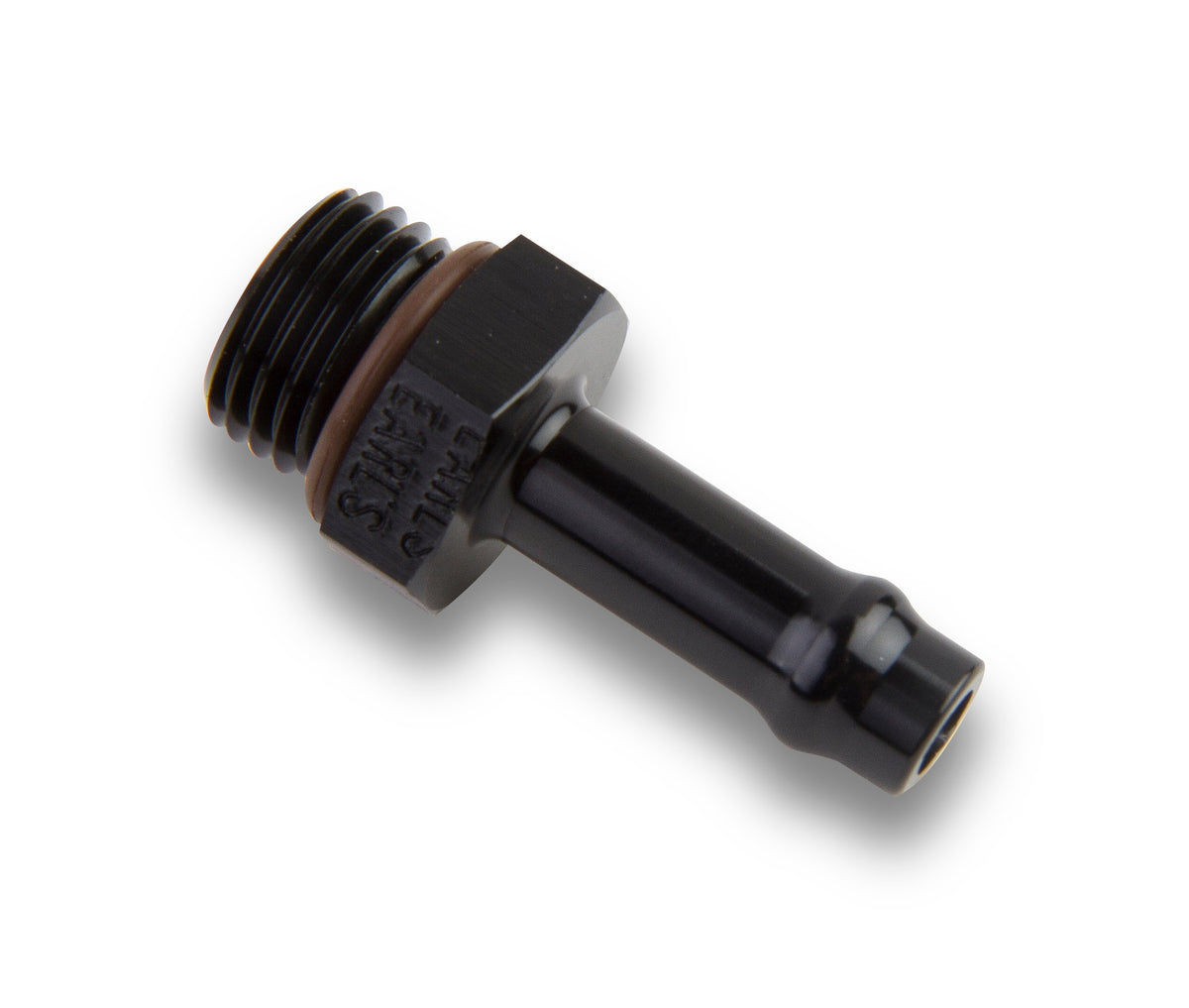

- Product Details: 9/16-18 (AN 6) MALE O-RING PORT STRAIGHT TO 5/16" Earl's VAPOR GUARD HOSE END
- Adapter AN Size ( A ): 9/16-18 Male O-Ring (6 AN) (AN -6 thread: 9/16-18, 18 TPI)
- Angle: Straight
- Compatible Hose: Vapor Guard
- Fitting to Hose Mate Type: Barb & Band Clamp
- Hose Barb: 5/16"
- Hose End Family: Vapor Guard
- Hose End Series: 75/78
- Hose Size: 5/16
- Thread Size: 6AN Male O-Ring (AN -6 thread: 9/16-18, 18 TPI)
