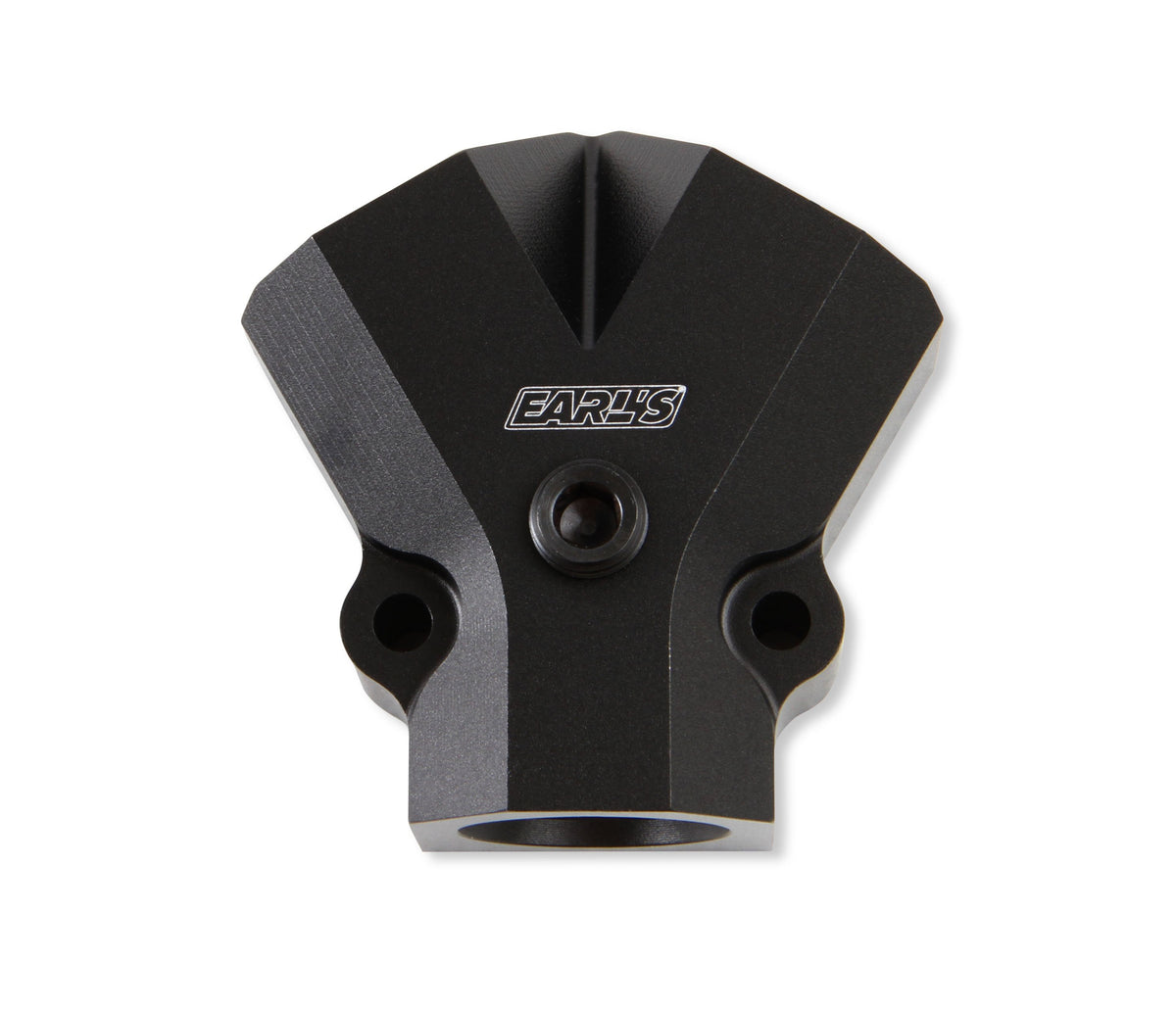

Earl’s Y-Block - 100176ERL
$96.05
Skip to product information
TWO FULLY CNC MACHINED STYLES to choose from: Straight or "Y" for various applications. Straight unit features filter screen. Both feature 1/8 NPT outlet for fuel pressure gauge.
Earl’s Y-Block - 100176ERL
$96.05
Features:
- 1/8" NPT Gauge Outlet
- 10 ORB Female Inlet Port
- 2x 10 ORB Female Outlet Ports
Sizes and Connection Specifications:
- Product Details: Fuel Distribution Block - 10AN O-ring Ports on the Inlet and two Outlets., Black Anodized.
- Adapter AN Size ( A ): 10 ORB Female (AN -10 thread: 7/8-14, 14 TPI)
- Adapter AN Size ( B ): 10 ORB Female (AN -10 thread: 7/8-14, 14 TPI)
- Adapter AN Size ( C ): 10 ORB Female (AN -10 thread: 7/8-14, 14 TPI)
- Adapter NPT Size ( C ): 1/8 NPT FEMALE (27 TPI NPT)
- Adapter Type: Classic Y-Block
- Inlet Port Gender: Female
- Inlet Thread Type Standard: ORB
- Outlet Port Gender: Female
