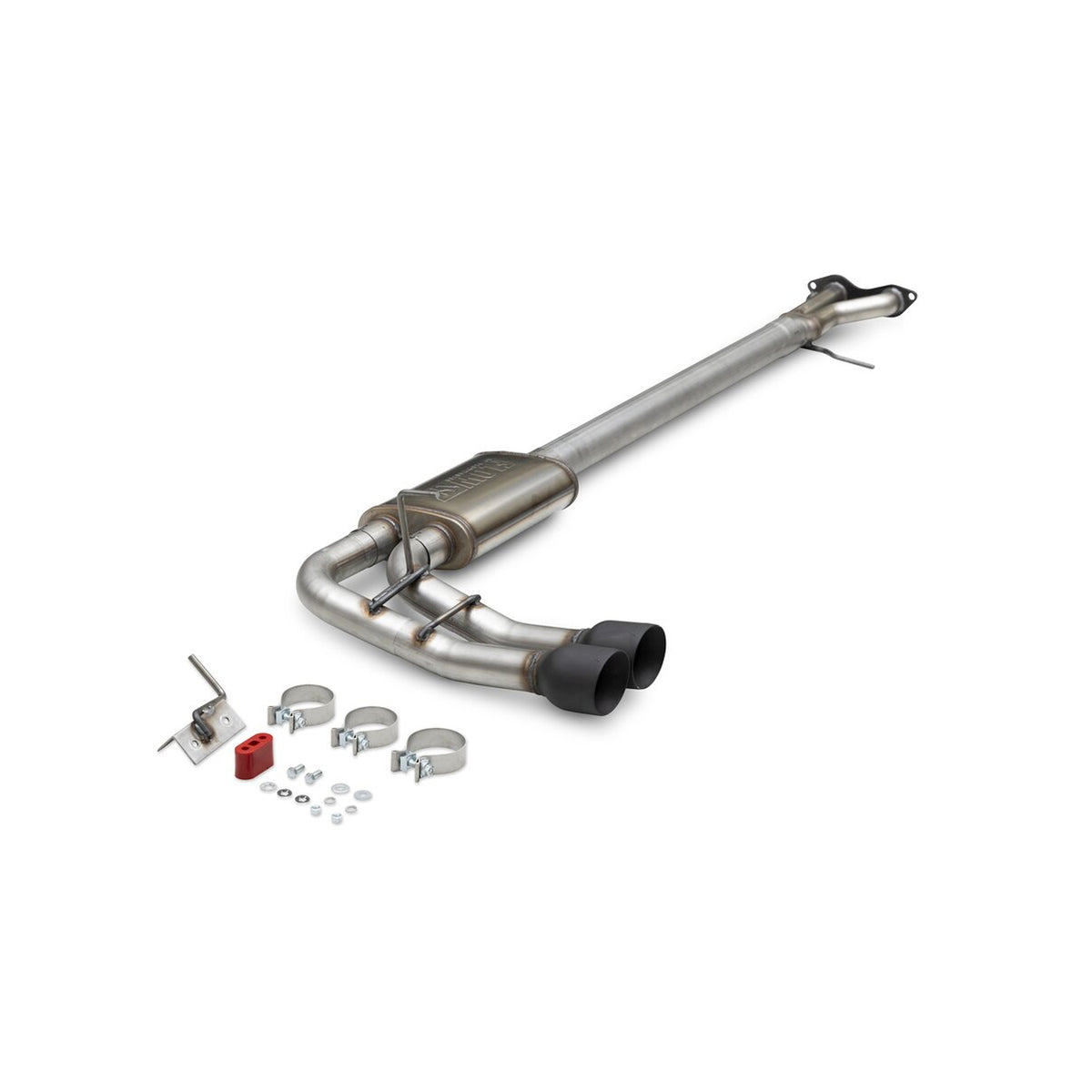

Flowmaster Flow FX Cat-Back Exhaust System - 718188
$727.95
Skip to product information
This Flowmaster® Flow FX cat-back exhaust system is for the 1996-1999 GM 1500 trucks with the 5.7-liter engine. This system is manufactured using durable 409 stainless steel tubing and is mandrel bent for better exhaust gas flow. A Flow FX Series muffler is used for an improved sound level and maximum performance. This system uses dual 4.0-inch black ceramic coated tips that exit on the passenger side of the truck, just in front of the rear wheel. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This system fits all single cab and extended cab models in both 2 and 4 wheel drive. Backed by Flowmaster's Lifetime Limited Warranty.
Flowmaster Flow FX Cat-Back Exhaust System - 718188
$727.95
Features:
- · 3.0 and 2.5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
- · This kit exits on the passenger side, just before the rear tire for a unique performance look
- · Dual 4.0-inch black ceramic coated stainless steal tips add a custom look to the vehicle
- · Kit includes complete hardware and factory styled hangers in the stock locations for an easy installation
- · A Flow FX Series muffler delivers a deep performance tone and improve exhaust flow
- · Fits all single cab and extended cab models in both 2 and 4 wheel drive
- · Lifetime Limited Warranty
Product Specifications:
- Product Details: Fits 1996-1999 GM 1500 trucks with 5.7L, Cat-Back, dual out same side exit, stainless steel exhaust system
- California Proposition 65: Yes
- California Proposition 65 Chemical Name: Chromium (hexavalent compounds), Nickel (Metallic)
- CARB (California) Compliant: Yes
- Catalytic Converter Included: No
- Catalytic Converter Quantity: 0
- Clamping Type: Flat Band
- Clamps Included: Yes
- Exhaust Series: Flow FX
- Exhaust Tip Color: Black
- Exhaust Tip Connection: Welded
- Exhaust Tip Cut: Angled
- Exhaust Tip Diameter: 4.00 IN
- Exhaust Tip Edge: Angle Cut
- Exhaust Tip Finish: Black Ceramic Coating
- Exhaust Tip Intercooled: No
- Exhaust Tip Length: 5.25 IN
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Quantity: 2
- Exhaust Tip Resonated: No
- Exhaust Tip Shape: Round
- Exhaust Tip Wall: Double Wall
- Exit Style: Dual Out Same Side
- Finish: Natural
- Gasket Or Seal Included: No
- Grade Type: Performance
- Hangers Included: Yes
- Inlet Type: Flanged
- Main Piping Diameter: 2.50 IN
- Mount Type: Uses Factory Hangers
- Mounting Bracket Included: Yes
- Muffler Body Height: 4.00 IN
- Muffler Body Length: 14.00 IN
- Muffler Body Material: 409 Stainless Steel
- Muffler Body Shape: Oval
- Muffler Body Width: 9.00 IN
- Muffler Color: Silver
- Muffler Finish: Natural
- Muffler Flanged Inlet: No
- Muffler Flanged Outlet: No
- Muffler Included: Yes
- Muffler Inlet Connection: Slip-Fit
- Muffler Inlet Inside Diameter: 3.00 IN
- Muffler Inlet Location: Center
- Muffler Inlet Outside Diameter: 3.13 IN
- Muffler Outlet Connection: Slip-Fit
- Muffler Outlet Diameter: 2.50 IN
- Muffler Outlet Location: Dual
- Muffler Outlet Quantity: 2
- Muffler Overall Length: 20.00 IN
- Muffler Part Number: Kit Only
- Muffler Quantity: 1
- Muffler Series: Flow FX
- Muffler Type: Absorption
- Part Type: Exhaust System
- Pipe Color: Silver
- Pipe Material: 409 Stainless Steel
- Product Type: Exhaust System
- Sound Level: Aggressive / Moderate
- Spring Bolt Kit Included: No
- Tail Pipe Outlet Outside Diameter: 2.50 IN
- Tail Pipe Quantity: 2, Dual
- Tail Pipe Tapered Outlet: No
- Tip Logo: Embossed
- Type: Cat-Back
- Valve Included: No
- Valve Type: Not Applicable
Installation Notes:
This exhaust kit is designed to fit 1500 and some 2500LD trucks with both left and right bank catalytic converters on the engine side of the 3-bolt flange of the down pipe. If your C/K 2500 truck has one catalytic converter on the engine side of the 3-bolt flange and one catalytic converter on the muffler side of the 3 bolt flange this kit will not work.
