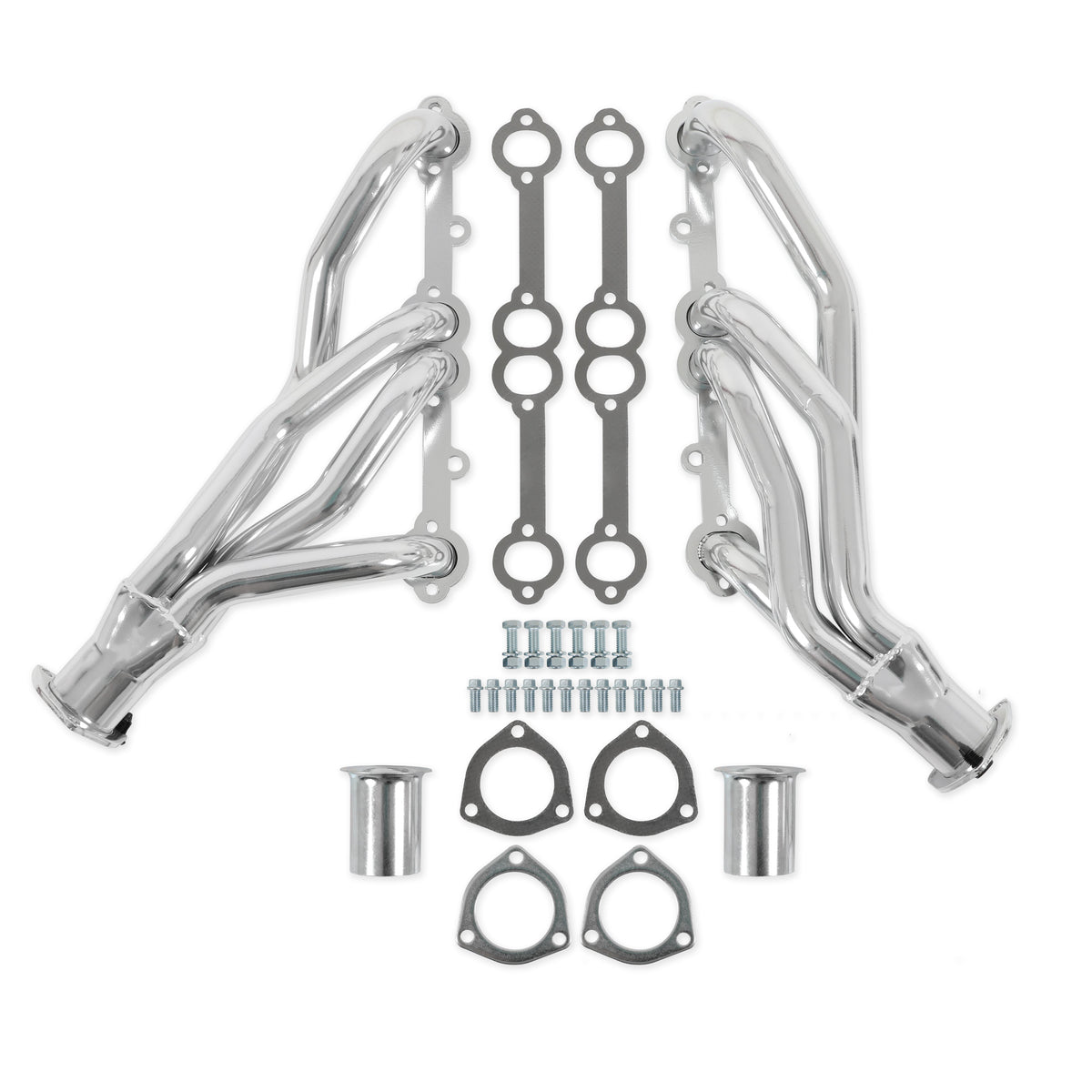

Flowtech Mid-Length Header - Ceramic Coated - 31108FLT

Flowtech Mid-Length Header - Ceramic Coated - 31108FLT

$519.95
Skip to product information
Flowtech Mid-Length Header - Ceramic Coated - 31108FLT
  • Flowtech Mid-Length Header - Ceramic Coated - 31108FLT
  • Flowtech Mid-Length Header - Ceramic Coated - 31108FLT
Flowtech Mid-Length Header - Ceramic Coated - 31108FLT

Flowtech Mid-Length Header - Ceramic Coated - 31108FLT

$519.95
Flowtech headers are the perfect combination of performance and value. Flowtech long tube headers are precision engineered using mandrel bent tubing, formed collectors and 5/16" flanges with sealing rings for a leak-free seal. All mounting hardware and gaskets are included for a simple installation. This header is coated in a high heat and corrosion resistant metallic ceramic thermal coating that increases exhaust velocity and reduces underhood temps for increased performance.

Features:

  • Tuned-length primary tubes for better performance
  • Mandrel-bent tubing for smooth exhaust flow
  • Light weight & sturdy 16 gauge tubing
  • Mandrel-formed Power Plenum collector for low back pressure
  • Sturdy, leak-tested O-Ring port seals
  • Engineered for a precision fit
  • Designed for easy, trouble-free installation
  • Includes all mounting hardware and premium gaskets
  • Shorty style header, will also work on catalytic converter equipped vehicles. Head pipe fabrication required

Product Specifications:

  • Product Details: Fits 1967-1974 Camaro, 1968-1974 Chevelle, 1968-1974 Nova, 1970-1974 Monte Carlo, 1971-1974 Mid Length Size: 283-400, Primary Tube Size 1.5", Collector Size 2.5"
  • Air Injection Tubes: No
  • Bolt Size: 3/8-16 x 3/4 IN
  • Bolts Included: Yes
  • California Proposition 65: Yes
  • CARB (California) Compliant: No
  • Catalytic Converter Quantity: 0
  • Collector Attachment: 3-Bolt Flange
  • Collector Diameter: 2.50 IN
  • Collector Reducer Included: Yes
  • Collector Reducer Outlet Dia.: 2.25 IN
  • Color: Silver
  • Design: Mid-Length
  • Drive: 2WD
  • EGT Port: No
  • Engine: Chevrolet Small Block Gen I
  • Finish: Ceramic Coated
  • Flange Thickness: 0.3125 IN, 0.375 IN, 3/8 IN, 5/16 IN
  • Gasket Or Seal Included: Yes
  • Grade Type: Performance
  • Header Series: Mid-Length
  • Header Style: Mid Length
  • Material: Mild Steel
  • Mounting Hardware Included: Yes
  • Oxygen Sensor Port: No
  • Part Type: Exhaust Header
  • Port Shape: Oval
  • Primary Tubing Diameter: 1 1/2 IN, 1.50 IN
  • Product Type: Headers
  • Quantity: Sold as a Pair
  • Tube Wall Thickness: 16 GU

Installation Notes:

Installation requires Flowtech air conditioning bracket 10042FLT. Fits angle-plug heads. Not compatible with manual transmissions. Do not use header wraps; they can cause header tube cracking from excessive heat or rust from moisture build-up and void the warranty. Breaking in an engine with ceramic-coated headers can damage the coating and void the warranty. Use cast-iron exhaust manifolds or old headers during engine break-in to prevent coating damage. Ceramic-coated headers require several heat cycles to fully cure before withstanding extreme heat. Please call Flowtech Technical Service at 270-781-9741 for additional information regarding ceramic-coated exhaust products.
