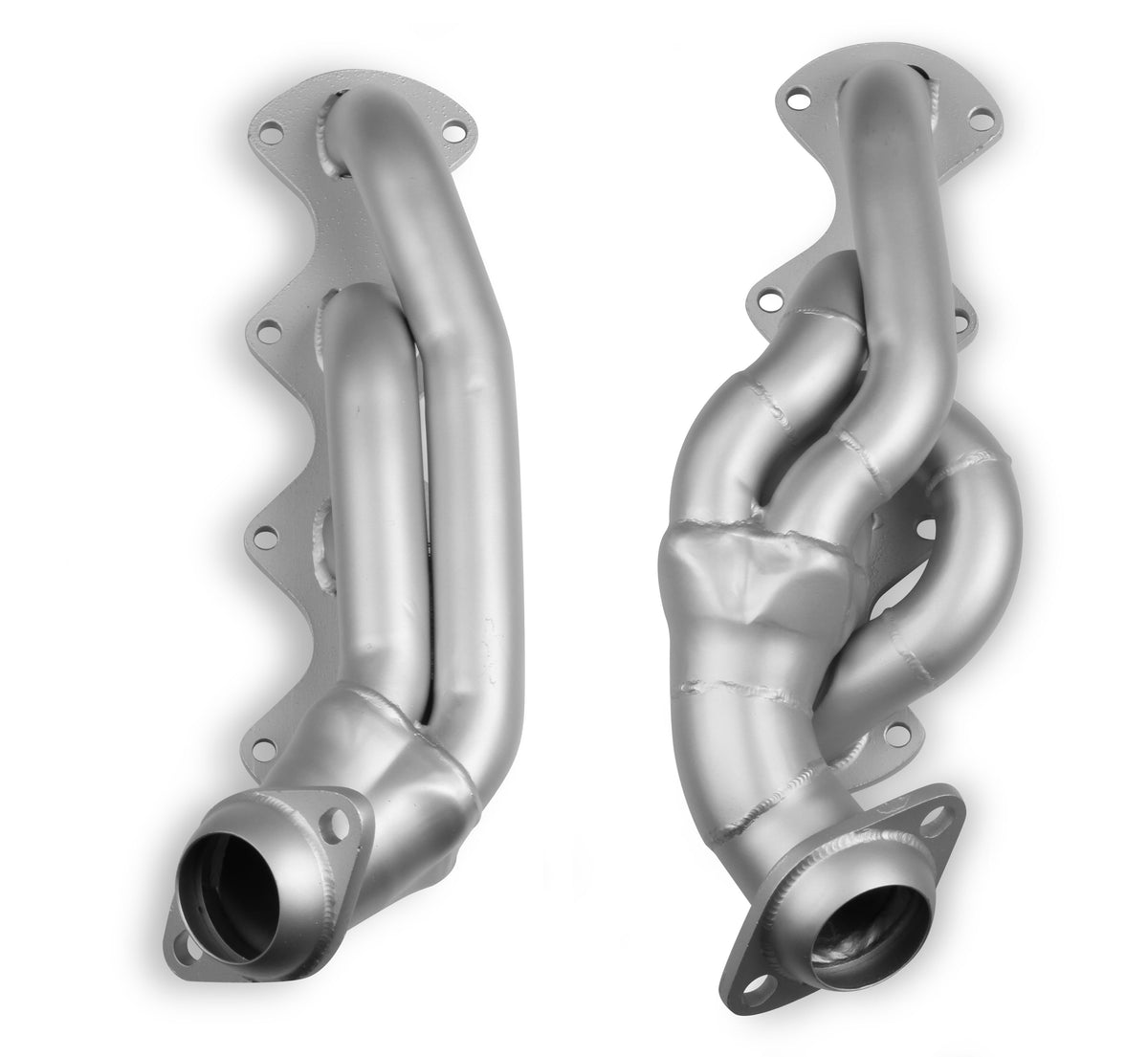

Flowtech Shorty Headers - Ceramic Coated - 91673-1FLT
$711.95
Skip to product information
Flowtech Headers are the perfect combination of quality and value. This header fits the popular 2004-08 Ford F-150 V8-5.4L 2WD/4WD. This header features 1-5/8" primary tubes and a 2-1/2" collector for increased exhaust flow for increasing performance, improving throttle response and providing a broad torque curve. This header accommodates all emission control devices and comes with premium aluminum header gaskets and hardware. This header is coated with Satin Silver Metallic Ceramic Coating. 50 state legal - CARB EO D-115-19
Flowtech Shorty Headers - Ceramic Coated - 91673-1FLT
$711.95
Features:
- 50 state legal
- Heavy duty 16-gauge tubing for increased strength and durability
- 1-5/8” primary tube diameter for increased exhaust flow increasing performance and improving throttle response
- OE style 2-1/2” ball and socket collector connects to factory exhaust head pipe
- TIG-welded, machined 3/8” header flange for a leak-free seal and maximum strength
- Mandrel-bent tubing provide consistent tubing diameter for smooth flow and increased exhaust velocity
- Accommodates all factory OE components
- Available in a high heat resistant black paint or a satin silver metallic ceramic thermal barrier coating
- Premium aluminum header gaskets included
- Headers are a must if you are using a cold air intake, cat-back exhaust system or tuner
Product Specifications:
- Product Details: 2004-08 Ford F-150 V8-5.4L Shorty Header, 1-5/8" Primaries, 2-1/2" Collector, Silver Metallic Ceramic, CARB EO D-115-19
- Air Injection Tubes: No
- Bolt Size: M8 x 1.25 x 25 MM
- Bolts Included: Yes
- C.A.R.B. EO #: D-115-19
- California Proposition 65: Yes
- CARB (California) Compliant: Yes
- Collector Attachment: 2-Bolt Flange
- Collector Diameter: 2.50 IN
- Collector Reducer Included: No
- Collector Reducer Outlet Dia.: N/A
- Color: Silver
- Design: Shorty
- Drive: 2WD, 4WD
- EGT Port: No
- Engine: Ford Mod Motor
- Finish: Ceramic Coated
- Flange Thickness: 0.375 IN, 0.4375 IN, 3/8 IN, 7/16 IN
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Header Series: Shorty Smog
- Header Style: Shorty
- Material: Mild Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Part Type: Exhaust Header
- Port Shape: D-Port
- Primary Tubing Diameter: 1 5/8 IN, 1.625 IN
- Product Type: Headers
- Quantity: Sold as a Pair
- Tube Wall Thickness: 16 GU
- Type of Component: Mild Steel
Installation Notes:
The installation of this header requires the motor to be lifted off of the mounts to fit the passenger side header. If you don't have this capability, we recommend professional installation. Please read the installation instructions completely prior to installation.
