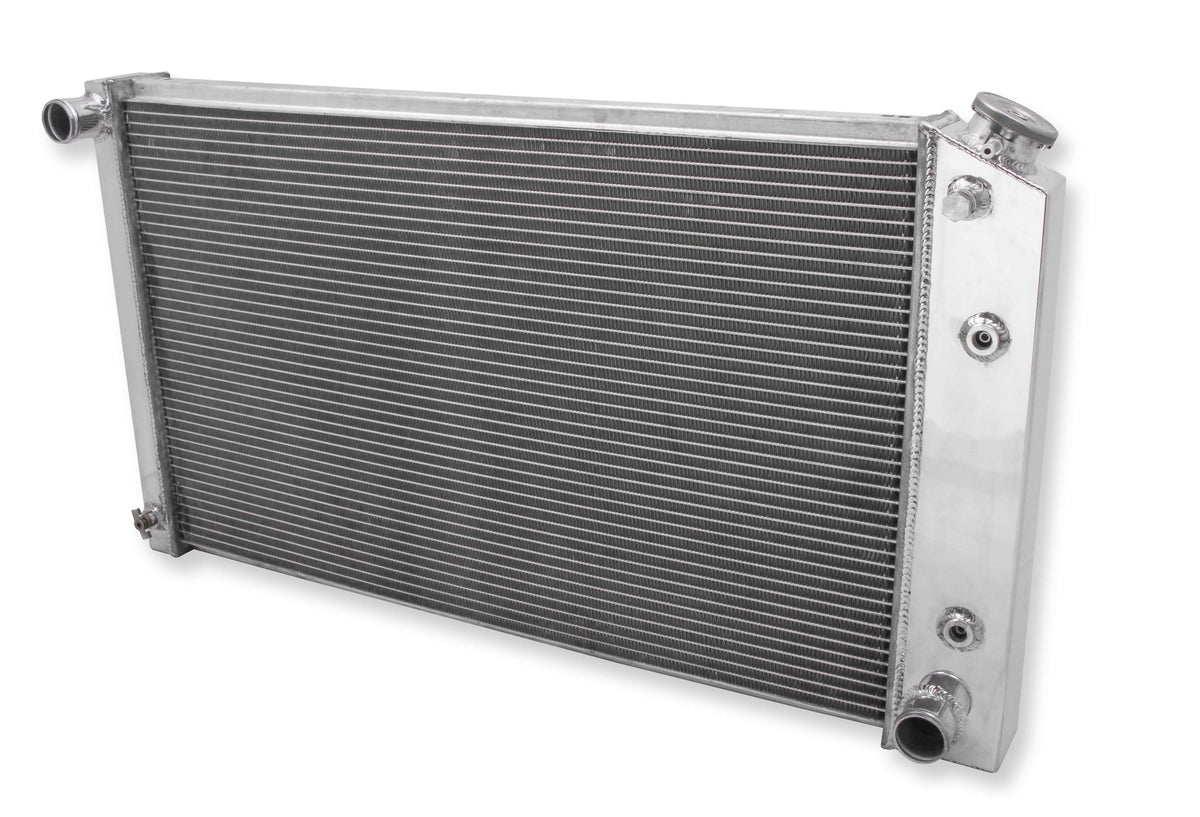

Frostbite Aluminum Radiator- 2 Row - FB132

Features:

• 100% TIG welded (brazed) seams
• Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
• Billet Aluminum Filler Neck and OEM style Brass Petcock
• More cooling fins per inch for more efficient cooling
• Custom Frostbite High Performance 16lb. radiator cap
• Polished top and tanks for custom show appearance
• 2-Row Radiators supporting applications with 300-500 horsepower
• Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
• Manufacturer’s 1-year Limited Warranty

Product Specifications:

• Product Details: 2-Row radiator for 1963-1990 GM L6/V8 engines. Fits 1967-1990 Chevrolet, 1967-1981 Pontiac, 1966-1990 Oldsmobile, 1972-1980 GMC, 1963-1990 Buick, and 1965-1982 Cadillac. Review fitment tab for specific models and years.
• # of Passes: Single
• Cooling Row Diameter: 3/4"
• Core Dimension: 17 x 28 1/4
• Core Thickness: 1.57"
• Flow Style: Cross Flow
• Heater Return Port Size: 1/8" NPT
• Hose Location Inlet: Driver
• Hose Location Outlet: Passenger
• Inlet Diameter: 1-1/2 in.
• Inlet Location: Driver
• Inlet Size: 1-1/2 in.
• Mounting Type: Saddle Mount
• Outlet Diameter: 1-1/2 in.
• Outlet Location: Passenger
• Outlet Size: 1-1/2 in.
• Overall Dimension: 19-1/8 x 29-1/4
• Part Type: Radiator
• Product Type: Radiator
• Row Quantity: 2
• Rows: 2
• Transcooler Provision: 1/2-20 Straight Thread G 1/4
• Transmission Oil Cooler Included: 1/2-20 Straight Thread G 1/4

Installation Notes:

This radiator fits the following vehicle-specific applications (all engines and models unless noted otherwise): Buick: 1963-1970 Wildcat, 1965-1990 LeSabre, 1967-1972 Skylark, 1967-1985 Riviera, 1968-1984 Electra, 1970-1979 Estate Wagon, 1973 Centurion, 1973-1976 Century, 1973-1977 Regal, Cadillac: 1965-1974 Calais, 1965-1974 Deville, 1965-1974 Fleetwood, 1965-1982 Eldorado, 1980-1982 Seville, Chevrolet: 1968-1973 Chevelle, 1968-1977 El Camino, 1970-1977 Monte Carlo, 1971-1972 Biscayne, 1971-1972 Brookwood, 1971-1972 Kingswood, 1971-1974 Bel Air, 1971-1979 Impala, 1971-1990 Caprice, 1973-1977 Malibu, 1973-1980 C10/C20 Suburban, 1973-1980 K10/K20 Suburban, 1972-1974 G10/G20/G30 Van, 1973-1974 Blazer, 1973-1974 C10/C20/C30 P/U, 1973-1974 K10/K20/K30 P/U, 1975-1978 C10/C20/C30 P/U, 1975-1978 G10/G20/G30 Van, 1975-1980 K10/K20 P/U, 1977-1980 K30 P/U, 1975-1980 K5 Blazer, 1975-1980 P10/P20/P30 Panel Truck, 1976 Laguna,GMC: 1972-1974 G15/G25/G35/G1500/G2500/G3500 Van, 1973-1974 C15/1500/C25/2500/C35/3500 P/U, 1973-1974 C15/1500/C25/2500/C35/3500 Suburban, 1973-1974 K15/1500/K25/2500/K35/3500 P/U, 1973-1974 P15/P25/P35/P1500/P2500/P3500 Panel Truck, 1973-1974 P10/P20/P30 Van, 1975-1978 C15/C25/C35 P/U, 1975-1978 C15/C25/C35 Suburban, 1975-1978 G15/G25/G35 P/U, 1975-1978 K15/K25 P/U, 1975-1978 K15/K25 Suburban, 1975-1978 P15/P25/P35 Panel Truck, 1977-1978 K35 P/U, 1973-1980 Jimmy, 1979-1980 C1500/C2500 P/U, 1979-1980 C1500/C2500 Suburban,1979-1980 K1500/K2500 Suburban, 1979-1980 K1500/K2500/K3500 P/U, 1979-1980 P1500/P2500/P3500 Panel Van, 1979-1980 G1500/G2500/G3500 Van ,Oldsmobile:1966-1977 Cutlass, 1968-1978 Delta 88, 1968-1984 98, 1972-1977 Cutlass Supreme, 1974-1990 Custom Cruiser, 1980-1985 Toronado, Pontiac:1973-1975 Grand Am,1967-1977 Grand Prix, 1967-1981 Bonneville, 1967-1981 Catalina, 1968-1970 Tempest, 1968-1973 GTO, 1968-1977 Le Mans
