Frostbite Aluminum Radiator - 3 Row - FB209
$324.95
Skip to product information
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.
Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.
When it comes to keeping your ride cool, Make it Frostbite!

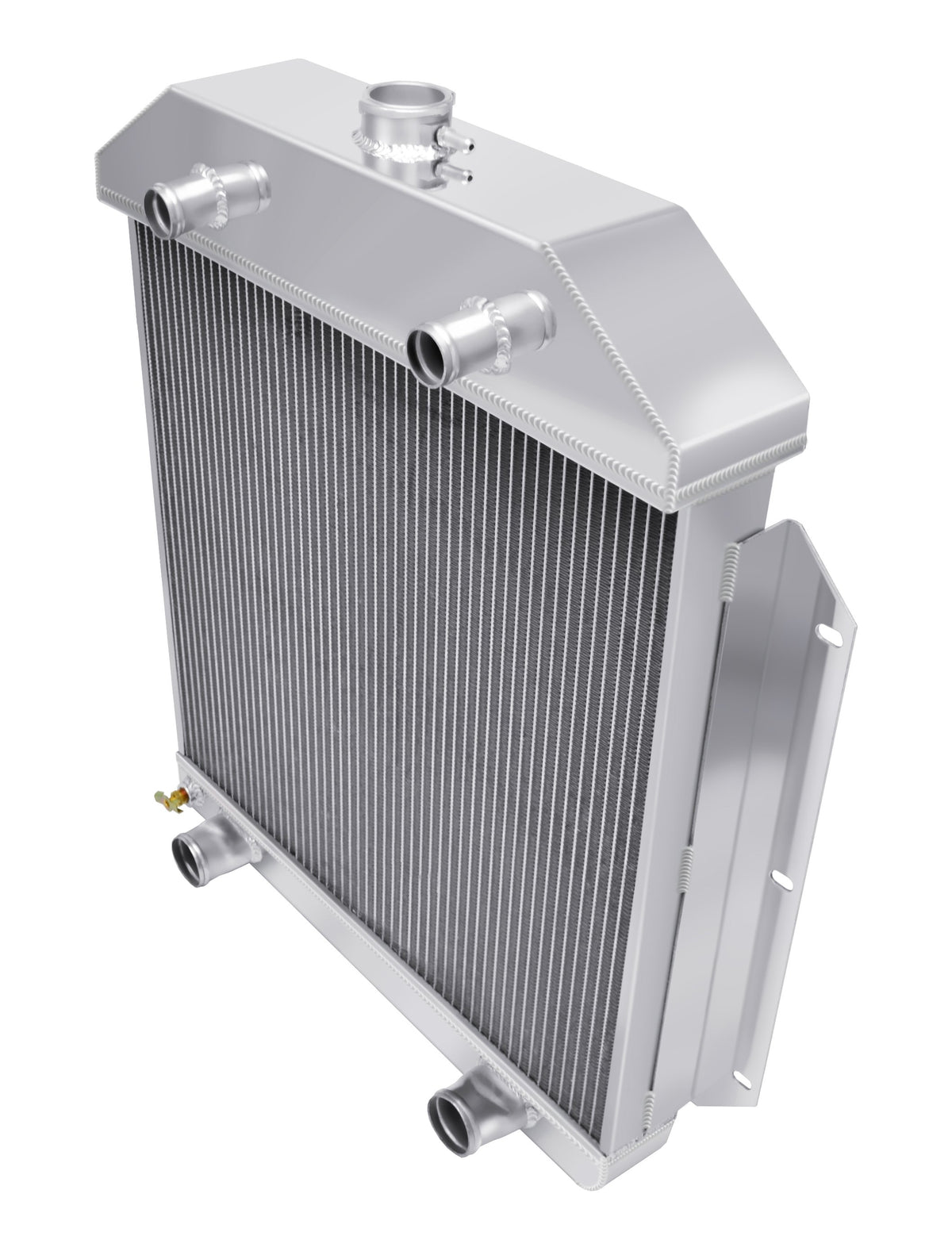

Frostbite Aluminum Radiator - 3 Row - FB209
$324.95
Features:
- 100% TIG Welded (Brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (Up to 30% weight savings)
- Billet Aluminum Filler Neck & OEM style Brass Petcock
- More cooling surface area (16 fins per inch) for more efficient cooling
- Custom Frostbite High Performance 16lb. Radiator Cap
- Polished Top and tanks for custom show appearance
- Applications supporting up to 1000+ horsepower
Product Specifications:
- Product Details: Frostbite Aluminum Radiator 3-Row 1949-1953 Ford Passenger Vehicles - w/Flathead V8
- # of Passes: Single
- Cooling Row Diameter: 11/16"
- Core Dimension: 19-3/8" x 20-1/2"
- Core Thickness: 2.20"
- Flow Style: Down Flow
- Hose Location Inlet: Dual
- Hose Location Outlet: Dual
- Inlet Diameter: 1-1/4 in.
- Inlet Location: Dual
- Inlet Size: 1-1/4 in.
- Mounting Type: Bracket Mount
- Outlet Diameter: 1-3/4 in.
- Outlet Location: Dual
- Outlet Size: 1-3/4 in.
- Overall Dimension: 26-3/4" x 24-3/4"
- Part Type: Radiator
- Product Type: Radiator
- Row Quantity: 3
- Rows: 3
- Transcooler Provision: No
- Transmission Oil Cooler Included: No
Installation Notes:
Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan.
