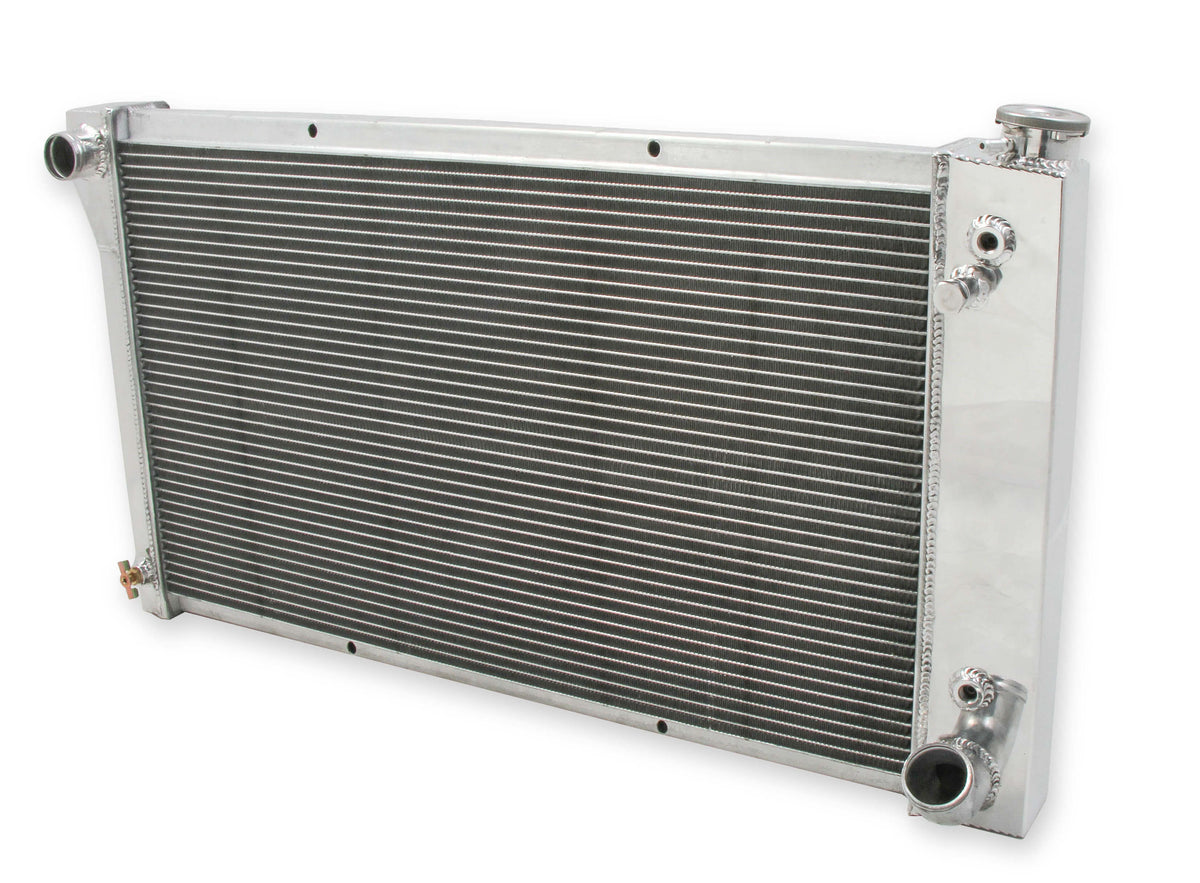

Frostbite Aluminum Radiator- 4 Row - FB155
$699.95
Skip to product information
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.
When it comes to keeping your ride cool, Make it Frostbite!
Frostbite Aluminum Radiator- 4 Row - FB155
$699.95
Features:
- 100% TIG welded (brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
- Billet Aluminum Filler Neck and OEM style Brass Petcock
- More cooling fins per inch for more efficient cooling
- Custom Frostbite High Performance 16lb. radiator cap
- Polished top and tanks for custom show appearance
- 4-Row Radiators supporting applications with 550-1000 horsepower
- Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
- Manufacturer’s 1-year Limited Warranty
Product Specifications:
- Product Details: 1967-1972 Chevy/GMC P/U V8 (283/307/327/350/396/402) (4-Row) equipped with 28" wide core
- # of Passes: Single
- Cooling Row Diameter: 11/16"
- Core Dimension: 17 x 28 1/4
- Core Thickness: 2.76"
- Flow Style: Cross Flow
- Heater Return Port Size: 1/8" NPT
- Hose Location Inlet: Driver
- Hose Location Outlet: Passenger
- Inlet Diameter: 1-1/2 in.
- Inlet Location: Driver
- Inlet Size: 1-1/2 in.
- Mounting Type: Saddle Mount
- Outlet Diameter: 1-3/4 in.
- Outlet Location: Passenger
- Outlet Size: 1-3/4 in.
- Overall Dimension: 18-1/2 x 33
- Part Type: Radiator
- Product Type: Radiator
- Row Quantity: 4
- Rows: 4
- Transcooler Provision: 1/2-20 Straight Thread G 1/4
- Transmission Oil Cooler Included: 1/2-20 Straight Thread G 1/4
Installation Notes:
Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan.
