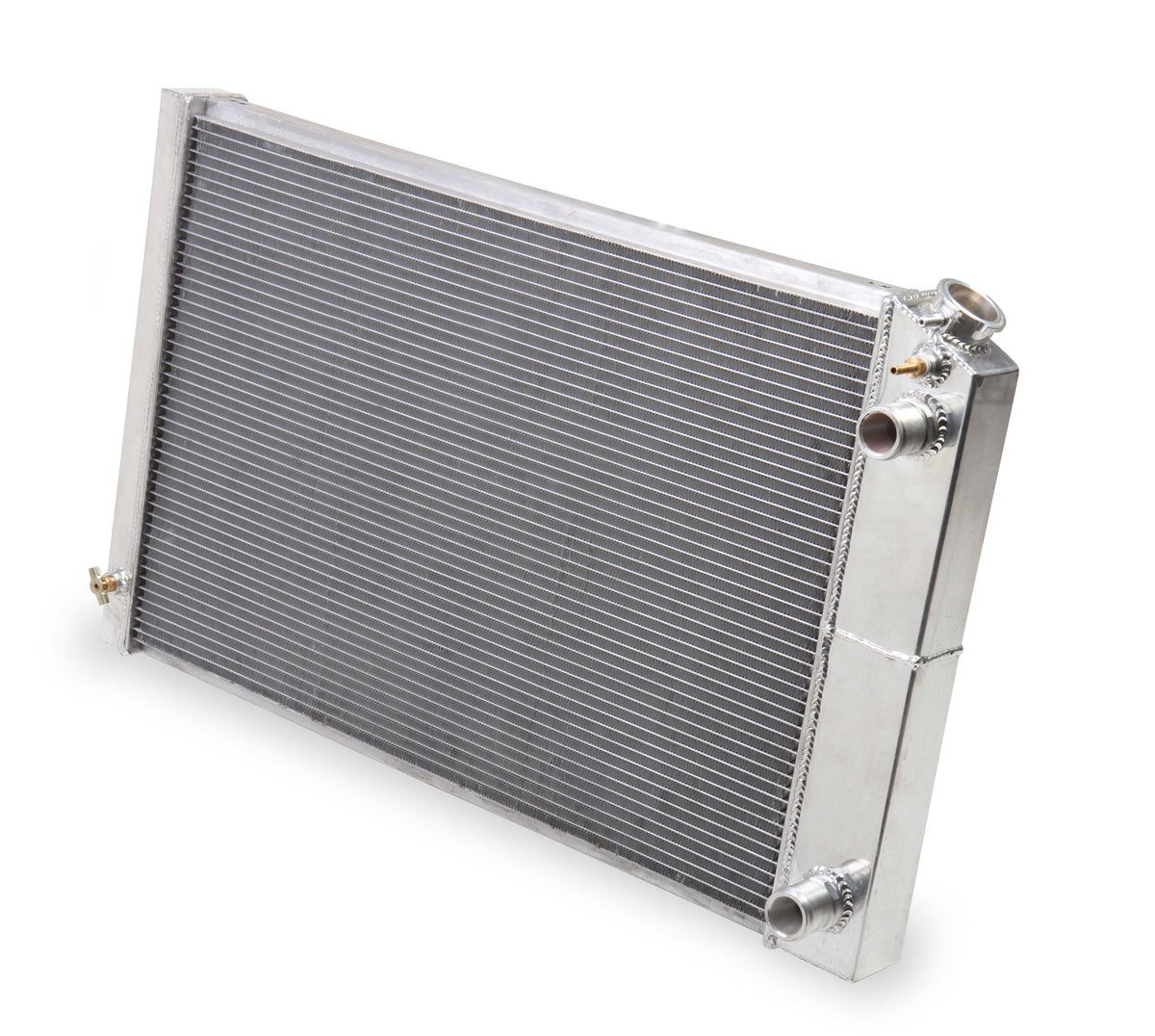

Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303

Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303

$467.95
Skip to product information
Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303
  • Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303
  • Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303
Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303

Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row - FB303

$467.95
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. When it comes to keeping your ride cool, Make it Frostbite!

Features:

  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
  • Dual Pass, Cross Flow design to maximize cooling efficiency
  • Billet Aluminum Filler Neck and Factory style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 3-Row Radiators supporting applications with 600+ horsepower
  • Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
  • Manufacturer’s 1-year Limited Warranty

Product Specifications:

  • Product Details: "1982-1992 Camaro/Firebird with GM LS Swap 4.8/5.3/6.0/6.2/7.0L (3-Row)
  • # of Passes: Dual
  • Cooling Row Diameter: 11/16"
  • Core Dimension: 17-1/4 x 26-1/4
  • Core Thickness: 2.20"
  • Flow Style: Dual Pass
  • Hose Location Inlet: Passenger
  • Hose Location Outlet: Passenger
  • Inlet / Outlet Size: AN Bungs
  • Inlet Diameter: AN Bungs
  • Inlet Location: Passenger
  • Inlet Size: AN Bungs
  • Mounting Type: Saddle Mount
  • Outlet Diameter: AN Bungs
  • Outlet Location: Passenger
  • Outlet Size: AN Bungs
  • Overall Dimension: 20 x 32
  • Product Type: Radiator
  • Row Quantity: 3
  • Rows: 3
  • Steam Port Fitting Size: 1/4" NPT
  • Transcooler Provision: No
  • Transmission Oil Cooler Included: No

Installation Notes:

*** Inlet and Outlet hose ends show on photo for representative purposes. Fittings must be purchased separately *** While there is no specific size to use with a particular swap, a good general rule of thumb 4.8L GM LS Engine 1.25" inlet (FB400), 1.50" outlet (FB401) 5.3L GM LS Engine 1.50" inlet (FB401). 1.50" outlet (FB401) 5.7L GM LS Engine 1.50" inlet (FB401), 1.50" outlet (FB401) 6.0L GM LS Engine 1.50" inlet (FB401), 1.75" outlet (FB402) 6.2L GM LS Engine 1.50" inlet (FB401), 1.75" outlet (FB402) 7.0L GM LS Engine 1.75" inlet (FB402), 1.75" outlet (FB402) This again only serves as a guide and any size fitting can be utilized with any LS-Swap Radiator. Our Frostbite LS-Swap Series Radiators do not come with Inlet and Outlet fittings. Please reference Related Parts & Kits for fitting options based on your engine swap needs.
