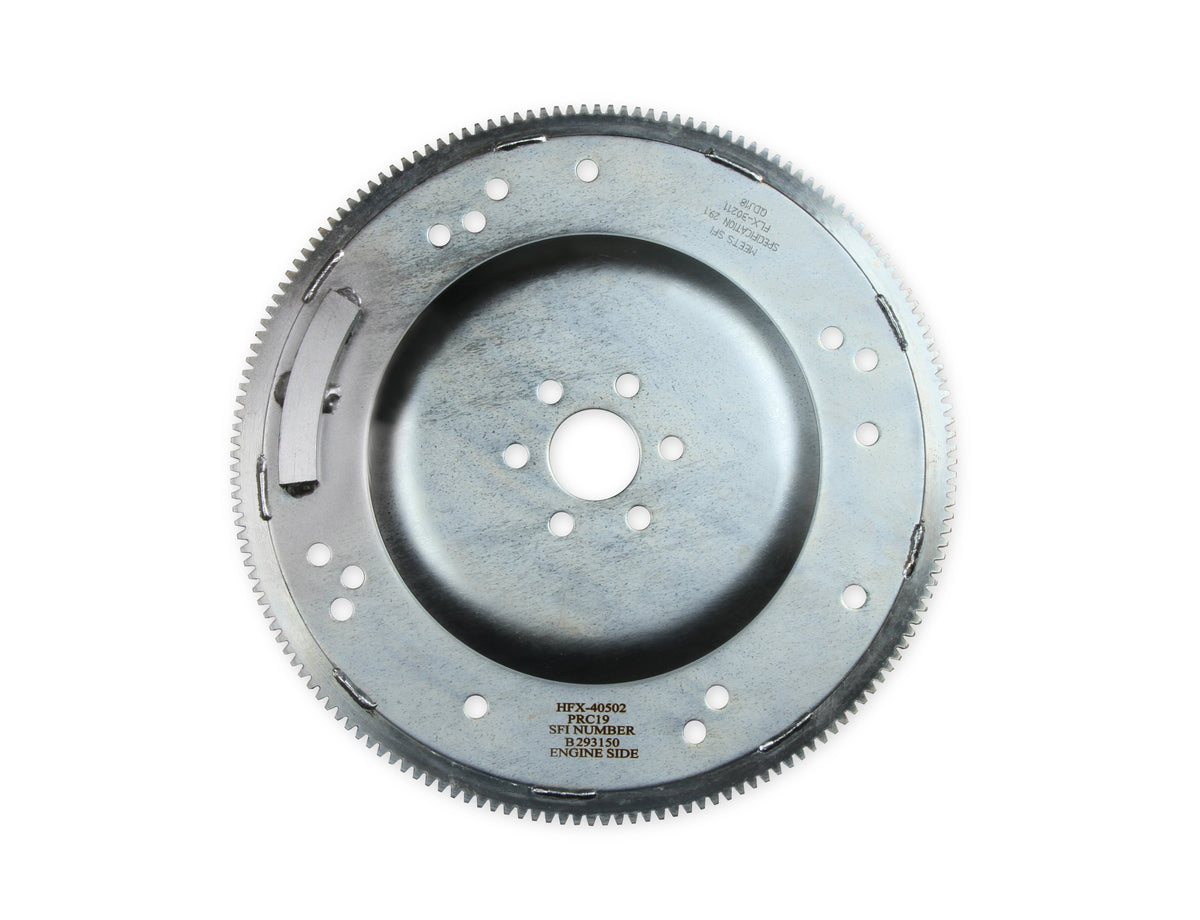

Hays Steel SFI Certified Flexplate - Small Block Ford - 40-502
$199.95
Skip to product information
Hays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Hays Steel SFI Certified Flexplate - Small Block Ford - 40-502
$199.95
Features:
- SFI-approved – legal for use in racing classes that require SFI certification
- Flexplate features a precision double welded ring gear
- Has 4mm thick center plate to resist cracking near crankshaft flange
- Zinc-dichromate plated to resist corrosion
- CAD designed to provide optimum performance and reliability
- Available in Internal or External balanced versions
- Applications offered for a wide variety of engine and transmission bolt patterns
Product Specifications:
- Product Details: 1963-1982 Ford 289-302 Small Block, 164 Tooth, 28oz. External Balanced, Ford and GM Converter Bolt Patterns
- # of Teeth: 164
- Application: Ford
- Bolt Pattern: Ford 10-1/2", Ford 11-7/16", GM 10-3/4", GM 11-1/2"
- Centerplate Thickness: 4 mm
- Engine: Ford Small Block
- Engine Balance: External
- Finish: Silver
- Material: Steel
- Part Type: Automatic Transmission Flexplate
- Product Type: Flexplates
- SFI Approved: Yes
- SFI Certification: 29.1
- Transmission: Category
