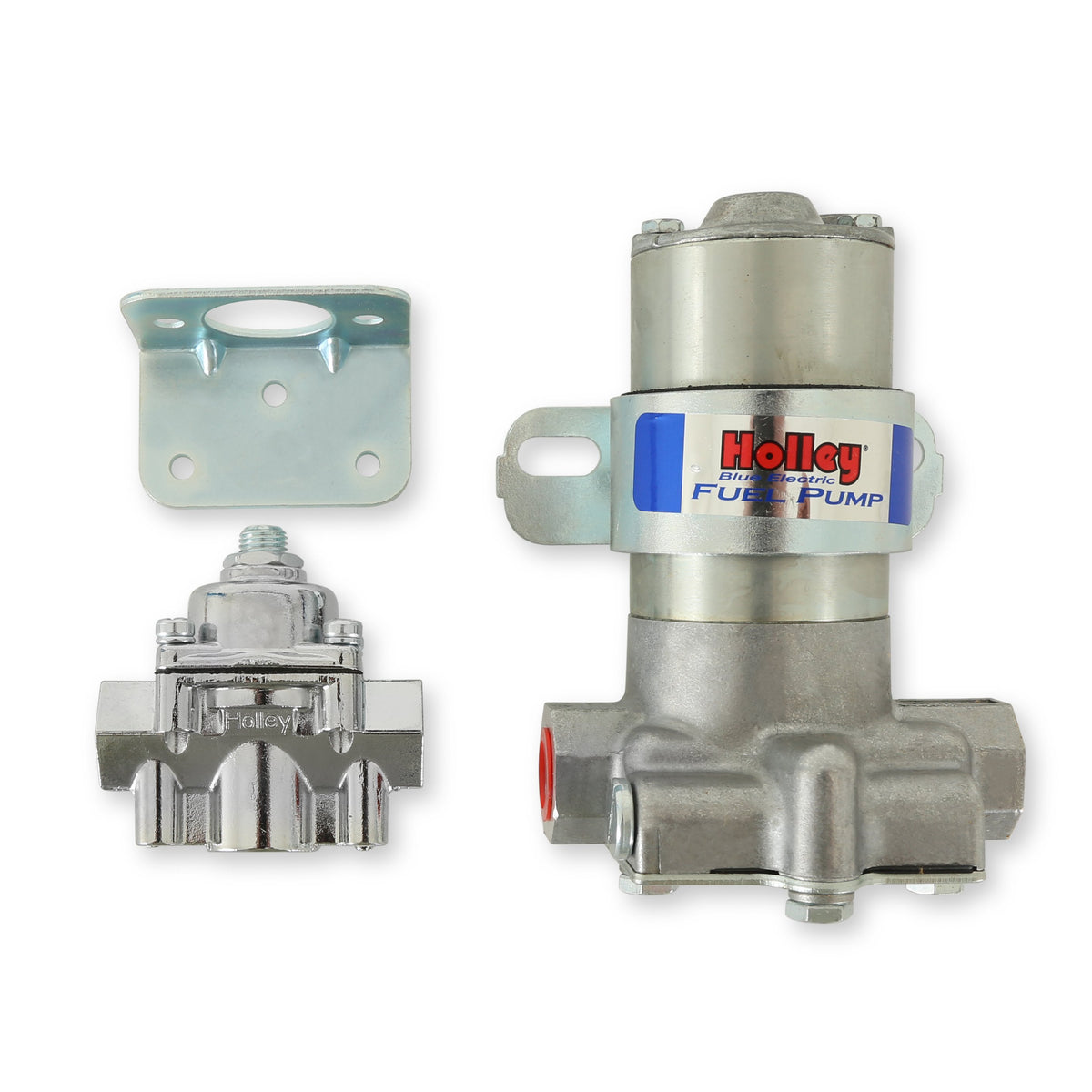

Holley 110 GPH Blue® Electric Fuel Pump With Regulator - 12-802-1
$254.95
Skip to product information
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
Holley 110 GPH Blue® Electric Fuel Pump With Regulator - 12-802-1
$254.95
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Motor draws only 3 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- maximum pressure is 14 psi
- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
Product Specifications:
- Product Details: Street/Strip Carbureted Applications Gasoline Only
- Application: Automotive
- Average Flow Rating: 110 GPH
- Bracket Color: Silver
- Color: Silver
- Finish: Zinc
- Free Flow GPH: 110
- Free Flow LPH: 416
- Fuel Delivery Type: Carburetor
- Fuel Sending Unit Included: No
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 3/8" IN
- Inlet Type: NPT
- Internal Or External: External
- Material: Aluminum
- Maximum Amperage Draw: 3
- Maximum Flow Rating: 110
- Maximum Pressure: 14 PS
- Motor Finish: Silver
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Fitting Thread Size: 3/8" IN
- Outlet Quantity: 1
- Outlet Type: NPT
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Pump Body Color: Silver
- Regulator Included: Yes
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Voltage: 12 2H
- Wire Quantity: 2
- Wiring Harness Included: No
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
