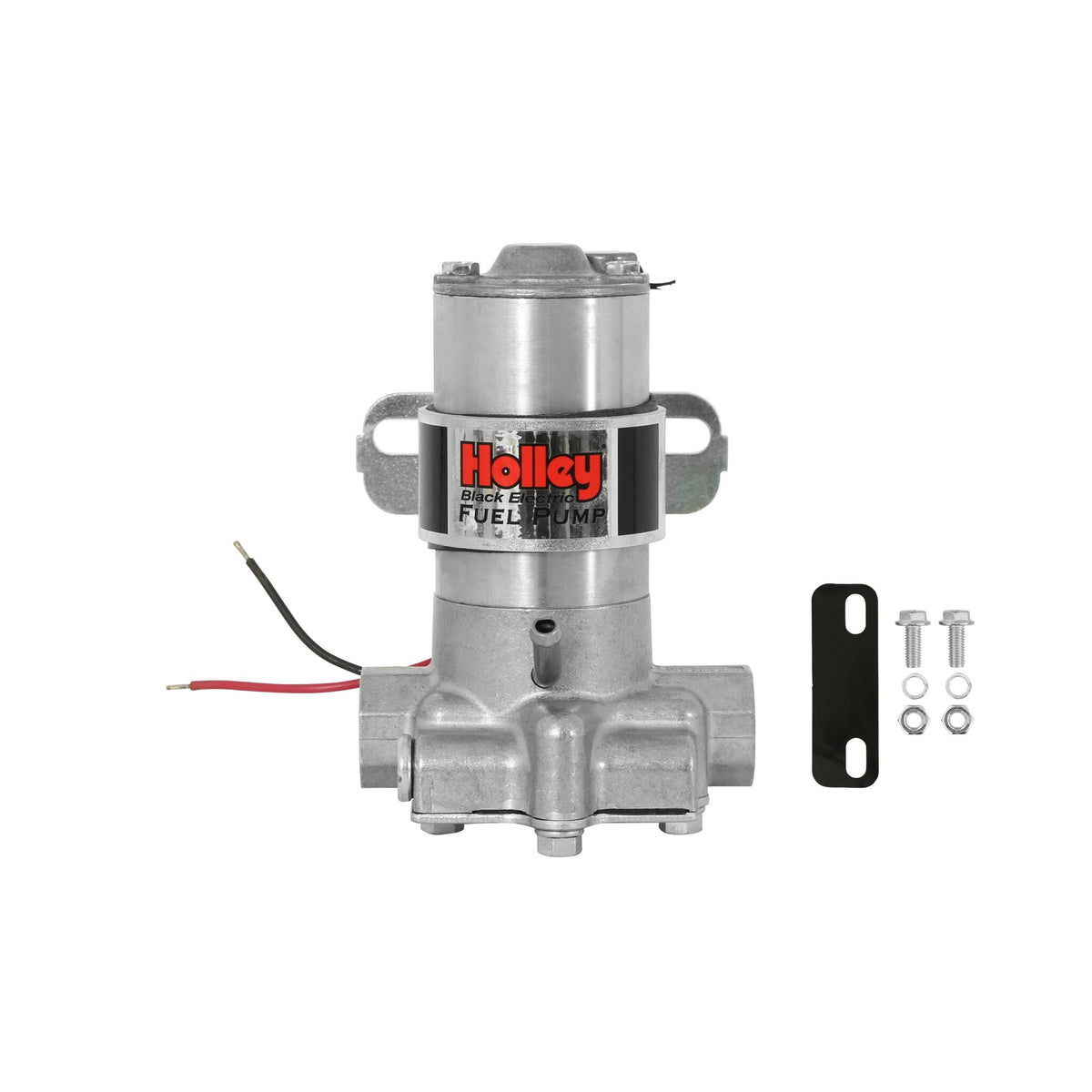

Holley 140 GPH Black® Electric Fuel Pump - 712-815-1
$432.95
Skip to product information
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
Holley 140 GPH Black® Electric Fuel Pump - 712-815-1
$432.95
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow.
- Improved design for street/strip applications
- Distinctive Holley Black® logo
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline)
- Motor draws only 4 amps current
- 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Product Specifications:
- Product Details: Marine Carbureted Applications Compatible with Gasoline Only
- Application: Marine
- Bracket Color: Silver
- Color: Silver
- Finish: Zinc
- Free Flow GPH: 140
- Free Flow LPH: 530
- Fuel Delivery Type: Carburetor
- Fuel Pump Type: Electric
- Fuel Sending Unit Included: No
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 3/8" IN
- Inlet Type: NPT
- Internal Or External: External
- Material: Aluminum
- Maximum Amperage Draw: 4
- Maximum Flow Rating: 140
- Maximum Pressure: 14 PS
- Motor Finish: Silver
- Mounting Hardware Included: Yes
- Negative Ground: Yes
- Outlet Fitting Thread Size: 3/8" IN
- Outlet Quantity: 1
- Outlet Type: NPT
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Pump Body Color: Silver
- Regulator Included: No
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Voltage: 12 2H
- Wire Quantity: 2
- Wiring Harness Included: No
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.
