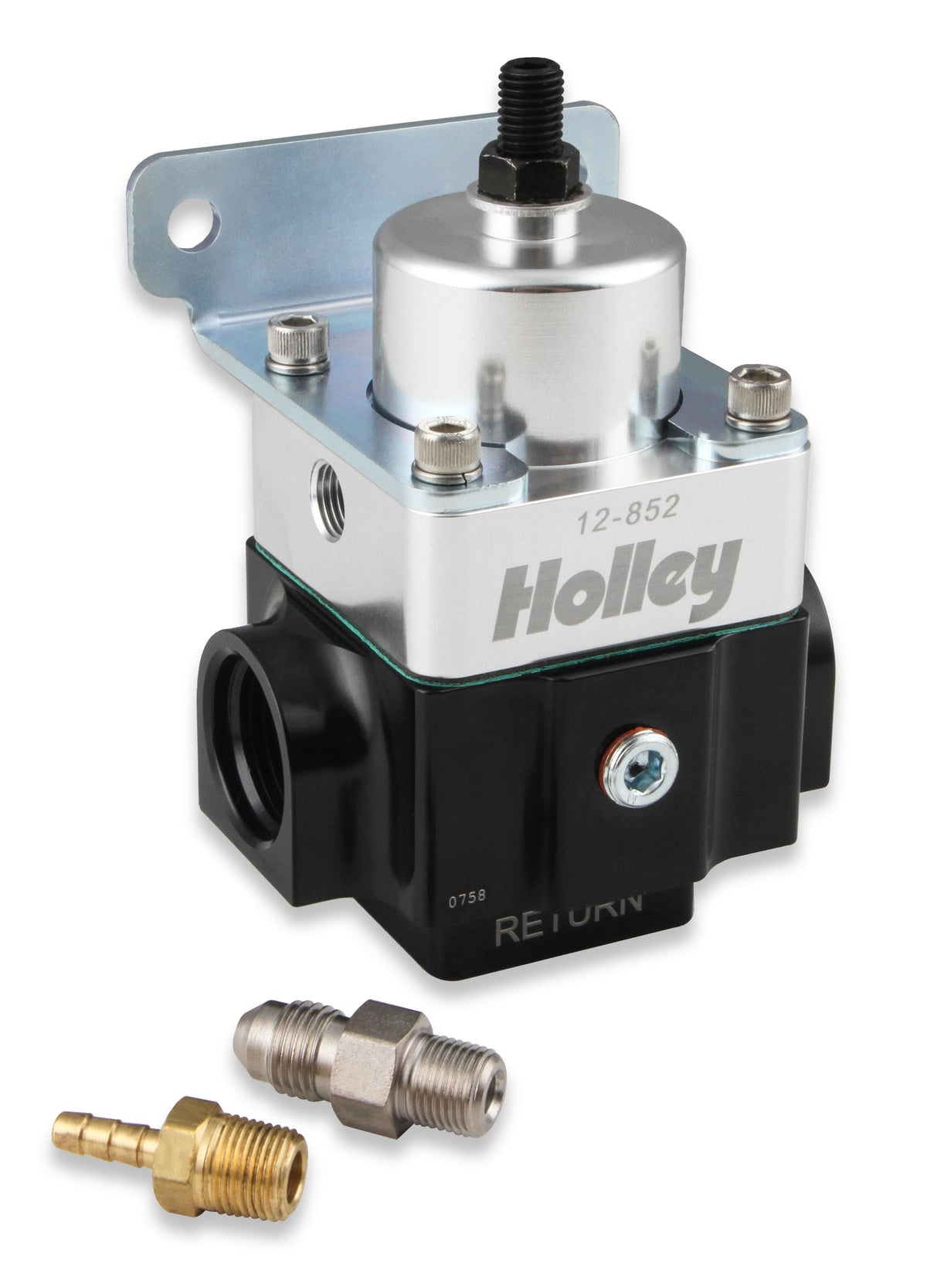

Holley 2 Port VR Series Fuel Pressure Regulator - 12-852
$415.95
Skip to product information
The Holley VR Series billet fuel pressure regulators are part of the VR1 and VR2 Series brushless fuel pump systems product line. These regulators can support 3000+ horsepower engines that require high volumes of fuel flow. Both EFI and carbureted versions can be referenced on a 1:1 ratio. They are precision machined from 6061-T6 billet aluminum for strength and durability and feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Offered in 2 port and 4 port versions for carbureted or EFI pressures, Holley has the regulator to cover your needs!
Holley 2 Port VR Series Fuel Pressure Regulator - 12-852
$415.95
Features:
- EFI regulators are adjustable from 40-100 PSI base pressure
- Carbureted regulators are adjustable from 4 to 9 PSI base pressure
- Compatible with gasoline, methanol, and E85*
- 1/8” NPT gauge port
- Designed for use with the Holley VR1 and VR2 Brushless in-line fuel pumps
- Can be referenced on a 1:1 ratio – includes a barb fitting and a -4 AN fitting for reference connection
- 2 port regulators feature a 10 AN O-ring inlet/outlet and return
- 4 port regulators feature a 10 AN O-ring inlet and return with (4) 8 AN O-ring outlets
Product Specifications:
- Product Details: Two Port Low Pressure 4 to 9 PSI Boost Reference 1:1
- Adjustable: Yes
- Color: Black Anodized
- Fuel System: Carbureted
- Fuel Type: Diesel, E85, Gasoline, Methanol
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: 10 ORB
- Inlet Port Quantity: 1
- Inlet Type: ORB
- Material: Aluminum
- Maximum Pressure: 9 PSI
- Minimum Pressure: 4 PSI
- Mounting Bracket Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 10 ORB
- Outlet Port Quantity: 2
- Outlet Type: ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 2
- Pressure Range: 4-9 PSI
- Pressure Rating: 4-9 PSI
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Return Size: 10 ORB
- Style: EFI
- Vacuum Port Quantity: 1
Installation Notes:
Regulator is compatible with Diesel #1 and Diesel #2.
