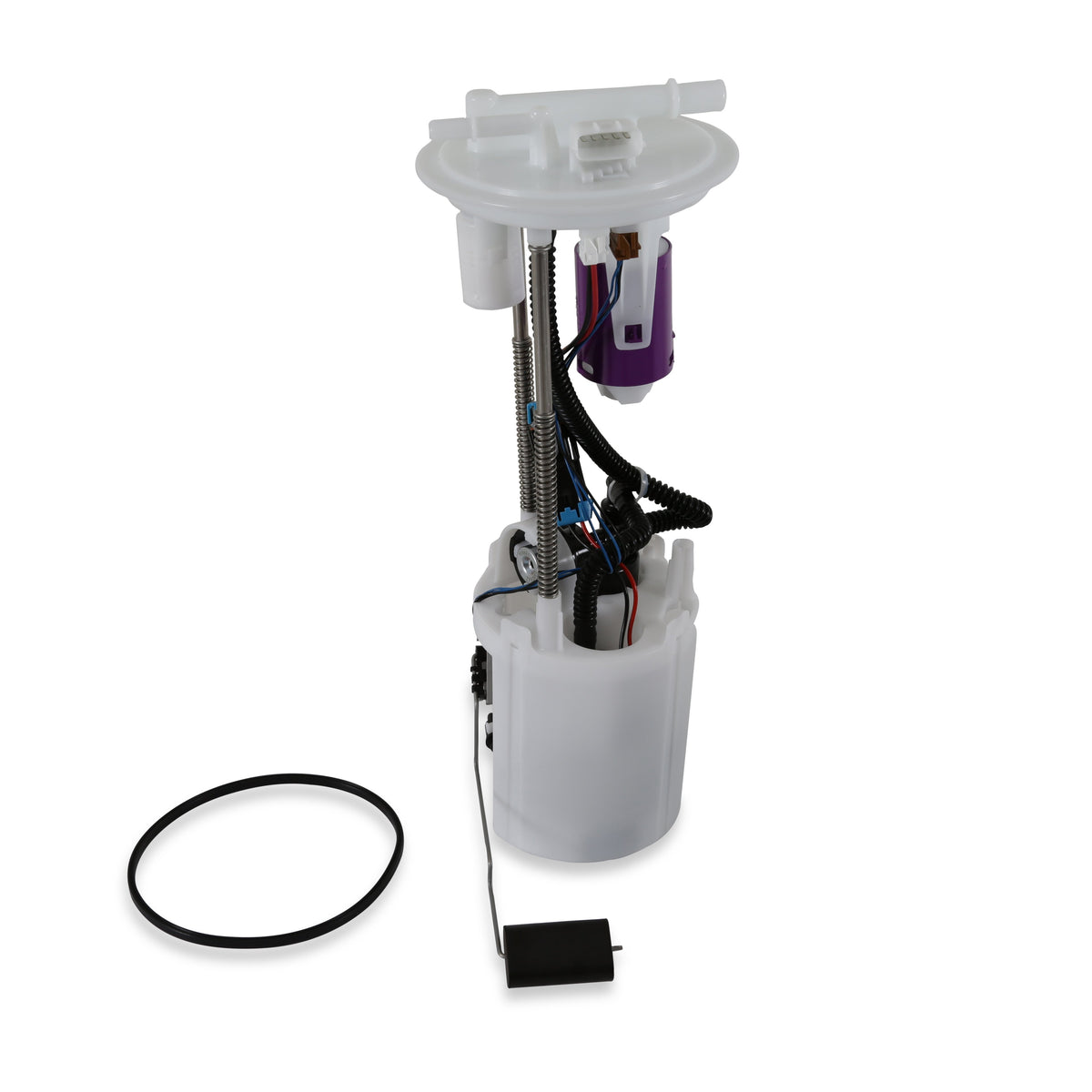

Holley 255 LPH Drop-In Fuel Module Assembly - 12-985
$571.95
Skip to product information
Holley now offers offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks.
These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 550+ horsepower.
Holley 255 LPH Drop-In Fuel Module Assembly - 12-985
$571.95
Features:
- Complete drop-in fuel module assembly
- Integrated fuel storage and filtration technology
- Built in, pre-calibrated fuel level sensors
- Plug and play wiring harnesses
- Capable of supporting 550+ hp right out of the box
- Designed for return line and pulse width modulation (PWM)
Product Specifications:
- Product Details: 255 LPH Drop-In Fuel Module assembly fits Nissan/Infiniti 2005-15 Armada -2012-19 NV1500, 2500, 3500 4.0 & 5.6 - 2004 Pathfinder Armada - 2004-07 Titan 5.6 - 2008-09 Titan 5.6 139.8" wheelbase only - 2010-15 Titan 5.6 - 2004-05 QX56 5.6- Gasoline
- Application: 2005-15 Nissan/Infiniti Cars and Trucks
- Average Flow Rating: 255 LPH
- Free Flow GPH: 50
- Free Flow LPH: 255
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel System: EFI
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Gasket Or Seal Material: Rubber
- Grade Type: Performance
- Height: Standard
- Housing Material: Plastic
- In Tank or External: In Tank
- Inlet Quantity: One
- Inlet Type: Barb
- Internal Or External Strainer: External
- Lock Ring Included: No
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: One
- Outlet Type: Barb
- Part Type: Fuel Pump Module Assembly
- Product Type: Fuel Pump Module
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 3 82
- Resistance Ohms Full: 80 82
- Universal Or Specific Fit: Specific
- Voltage: 12 2H
