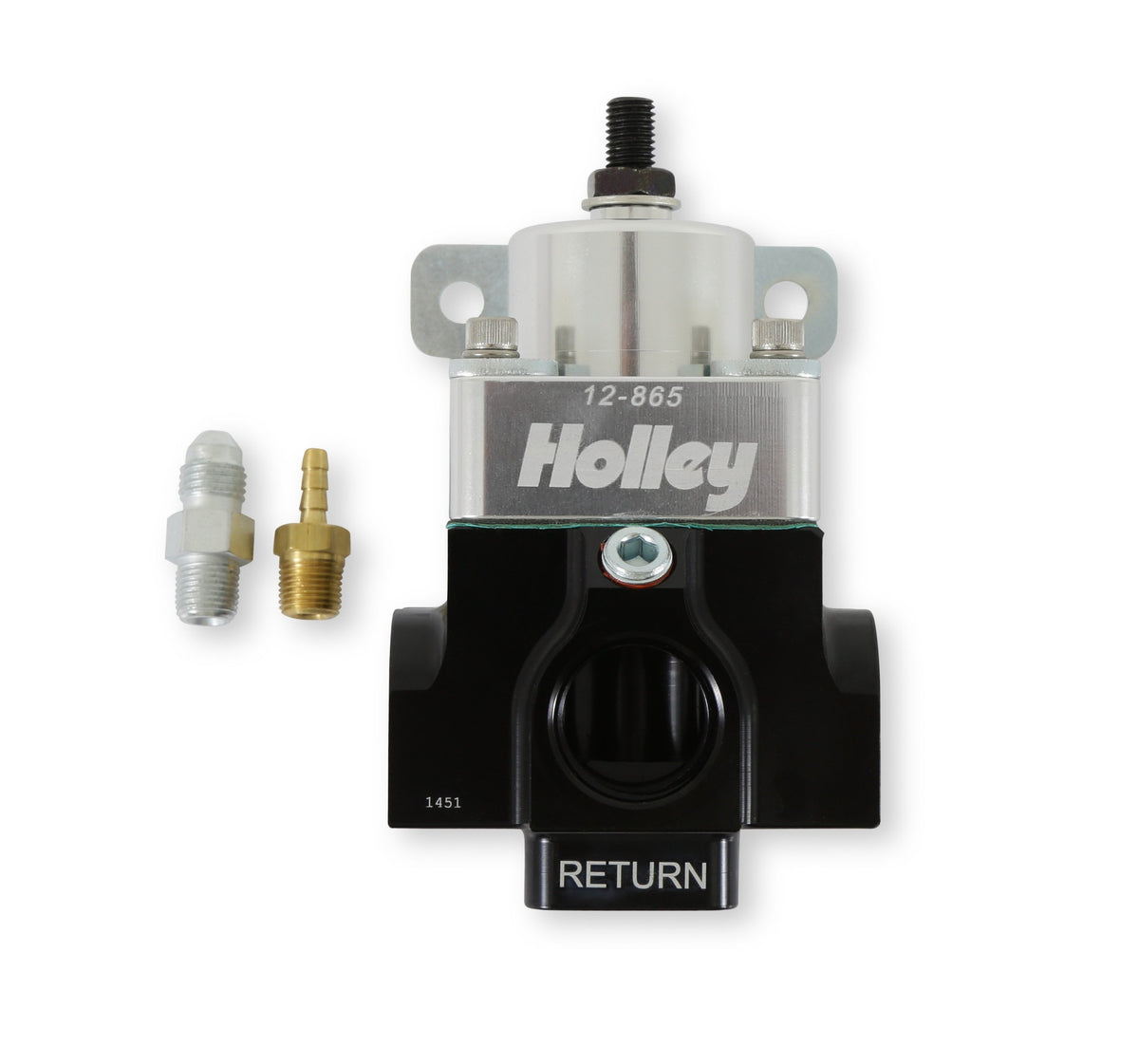

Holley 4 Port VR Series Fuel Pressure Regulator - 12-865
$425.95
Skip to product information
The Holley VR Series billet fuel pressure regulators are part of the VR1 and VR2 Series brushless fuel systems product line. These regulators can support 3000+ horsepower engines that require high volumes of fuel flow. Both EFI and carbureted versions can be referenced on a 1:1 ratio. They are precision machined from 6061-T6 billet aluminum for strength and durability and feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Offered in 2 port and 4 port versions for carbureted or EFI pressures, Holley has the regulator to cover your needs!
Holley 4 Port VR Series Fuel Pressure Regulator - 12-865
$425.95
Features:
- EFI regulators are adjustable from 40-100 PSI base pressure
- Carbureted regulators are adjustable from 4 to 9 PSI base pressure
- Compatible with gasoline, methanol, and E85* (Compatible with
- 1/8” NPT gauge port
- Designed for use with the Holley VR1 and VR2 Series Brushless in-line fuel pumps
- Can be referenced on a 1:1 ratio – includes a barb fitting and a -4 AN fitting for reference connection
- 2 port regulators feature a 10 AN O-ring inlet/outlet and return
- 4 port regulators feature a 10 AN O-ring inlet and return with (4) 8 AN O-ring outlets
Product Specifications:
- Product Details: Four Port Adjustable 4 to 9 PSI Boost Reference 1:1
- Adjustable: Yes
- Color: Black Anodized
- Fuel System: Carbureted
- Fuel Type: Diesel, Gasoline
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: 10 ORB
- Inlet Port Quantity: 1
- Inlet Type: ORB
- Material: Aluminum
- Maximum Pressure: 9 PSI
- Minimum Pressure: 4 PSI
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 8 ORB
- Outlet Port Quantity: 4
- Outlet Type: ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 5
- Pressure Range: 4-9 PSI
- Pressure Rating: 4-9 PSI
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Return Size: 10 ORB
- Style: EFI
- Vacuum Port Quantity: 1
Installation Notes:
Regulator is compatible with Diesel #1 and Diesel #2.
