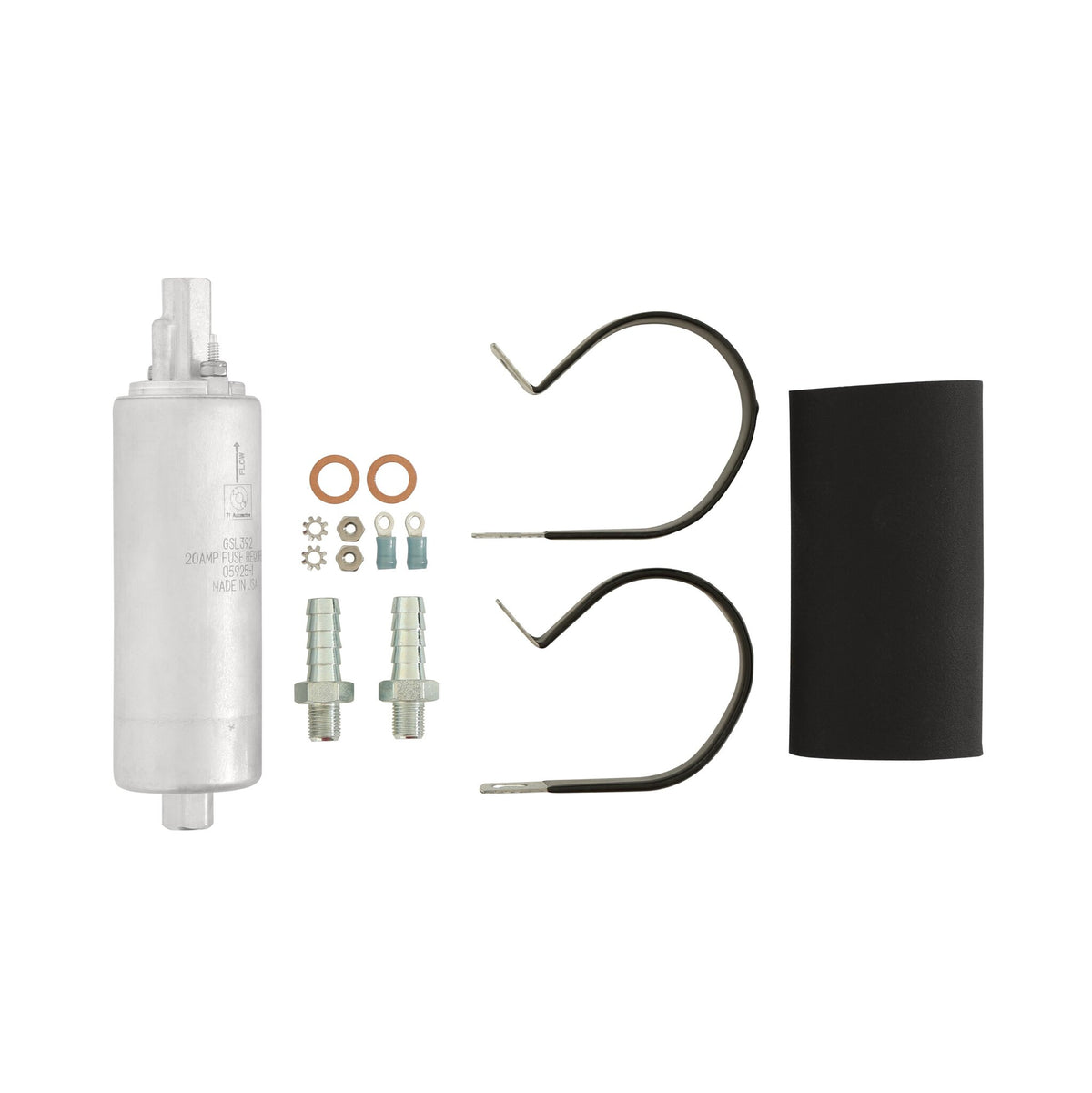

Holley 80 GPH In-line Universal Electric Fuel Pump - 12-920
$337.95
Skip to product information
The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Holley 80 GPH In-line Universal Electric Fuel Pump - 12-920
$337.95
Features:
- Draws 5 amps at 15 psi
- Will feed up to 800 horsepower throttle body EFI units
- Will feed up to 700 horsepower multipoint units
- Will feed up to 600 horsepower forced induction multipoint units
- OE proven design
- Lightweight and compact
- Rubber isolator, mounting clamps and electrical hardware included
- 3/8" barbed fittings included
- Not designed for use on aircraft of any type.
Product Specifications:
- Product Details: Street/Strip EFI Applications Compatible with Gasoline only
- Application: Automotive
- Average Flow Rating: 80 GPH
- Bracket Color: Black
- Coast Guard Approved: Yes
- Color: Silver
- Finish: Zinc
- Forced Induction HP@43PSI: 600
- Free Flow GPH: 80
- Free Flow LPH: 302
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- GPH@15PSI: 80
- GPH@43PSI: 67
- GPH@60PSI: 62
- GPH@8PSI: 85
- Grade Type: Performance
- Inlet Fitting Thread Size: M10 x 1.0 3/8"
- Inlet Type: Metric Barb
- Internal Or External: External
- LPH@15PSI: 302
- LPH@43PSI: 254
- LPH@60PSI: 235
- LPH@8PSI: 322
- Material: Steel
- Maximum Flow Rating: 85
- Maximum Pressure: 60 PS
- Mounting Hardware Included: Yes
- Naturally Aspirated HP@15PSI: 800
- Naturally Aspirated HP@43PSI: 700
- Naturally Aspirated HP@8PSI: 850
- Negative Ground: Yes
- Outlet Fitting Thread Size: M10 x 1.0 3/8"
- Outlet Quantity: 1
- Outlet Type: Metric Barb
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Pump Body Color: Silver
- Regulator Included: No
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Voltage: 12 2H
- Wire Quantity: 2
- Wiring Harness Included: No
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180
