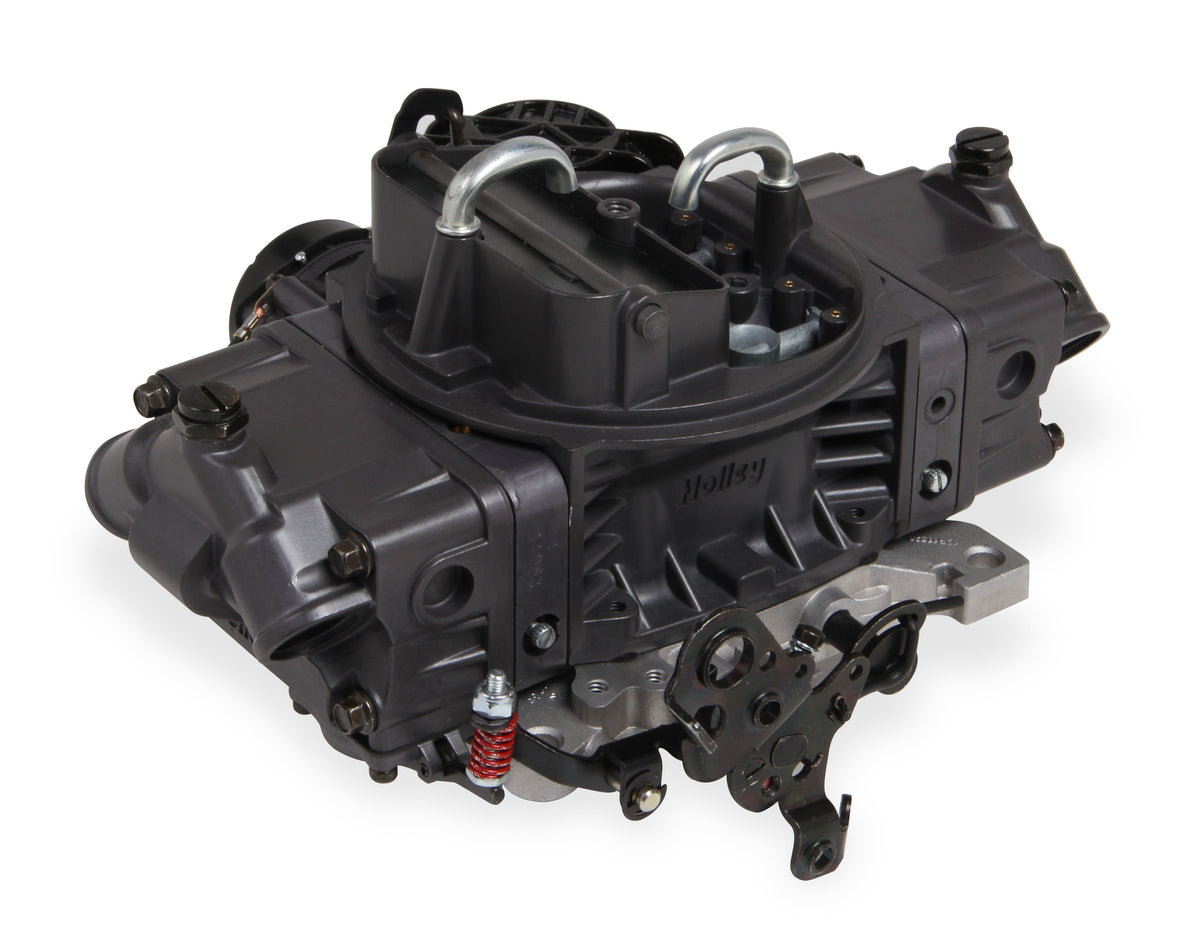

Holley Aluminum Marine Avenger Carburetor - 0-82670
$749.95
Skip to product information
Building on the proven performance and durability of the Aluminum Street Avenger Series- we have engineered the new marine models to continue that performance heritage that Holley is known for. The all-aluminum carburetors are hard coat anodized in a Hard Core Gray finish to protect them from corrosion in fresh water or salt water conditions. The new Marine Avengers are built to exceed the Coast Guard standards and are J1223 Marine Standard certified.
So, if you are hitting the lake for an easy cruise or some high speed fun, the new Aluminum Marine Avengers will meet and exceed your performance demands!
The Marine Avenger Carburetors come with the same Limited Lifetime Warranty as our Street Avengers do. Holley warrants its Marine Avenger Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley will charge standard rates for repair labor.
Holley Aluminum Marine Avenger Carburetor - 0-82670
$749.95
Features:
- All aluminum construction
- Hard Core Gray finish for corrosion protection in marine environments
- Built to exceed Coast Guard standards and are J1223 Marine Standard Certified
- Dual metering block system utilizing four corner idle adjustment for precision tuning
- Throttle shafts are PTFE coated for corrosion protection
- Calibrated to compensate for unique engine loads found on boats
- Available in 570 CFM, 670 CFM, and 770 CFM sizes to match your application needs
- Limited Lifetime Warranty
Product Specifications:
- Product Details: 670 CFM - 4150 - Vacuum Secondaries - Hard Core Gray - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Body Color: Hard Core Gray
- Body Finish: E-Coated
- Body Material: Aluminum
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Marine
- CFM: 670
- CFM Rating: 670
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Hard Coat Gray
- Condition: New
- Cubic Feet Per Minute Rating: 670
- Finish: Hard Core Gray
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Marine
- Linkage Attached: Yes
- Marine Approved: Yes
- Marine Engine Size: Universal
- Marine Use: Yes
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Hard Core Grey
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Needle and Seat Size: 110; 110
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 62
- Primary Main Jet Size: 62
- Primary Power Valve: 2.5
- Primary Pump Nozzle Size: .037
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.28
- Product Type: Marine Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 84
- Secondary Throttle Bore Diameter: 1.688
- Series: Marine Avenger
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.6875 inch
- Vacuum Ports: 1 timed (spark) port, 1 full, and 1 PCV port
- Venturii Size: 1.280 inch
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
