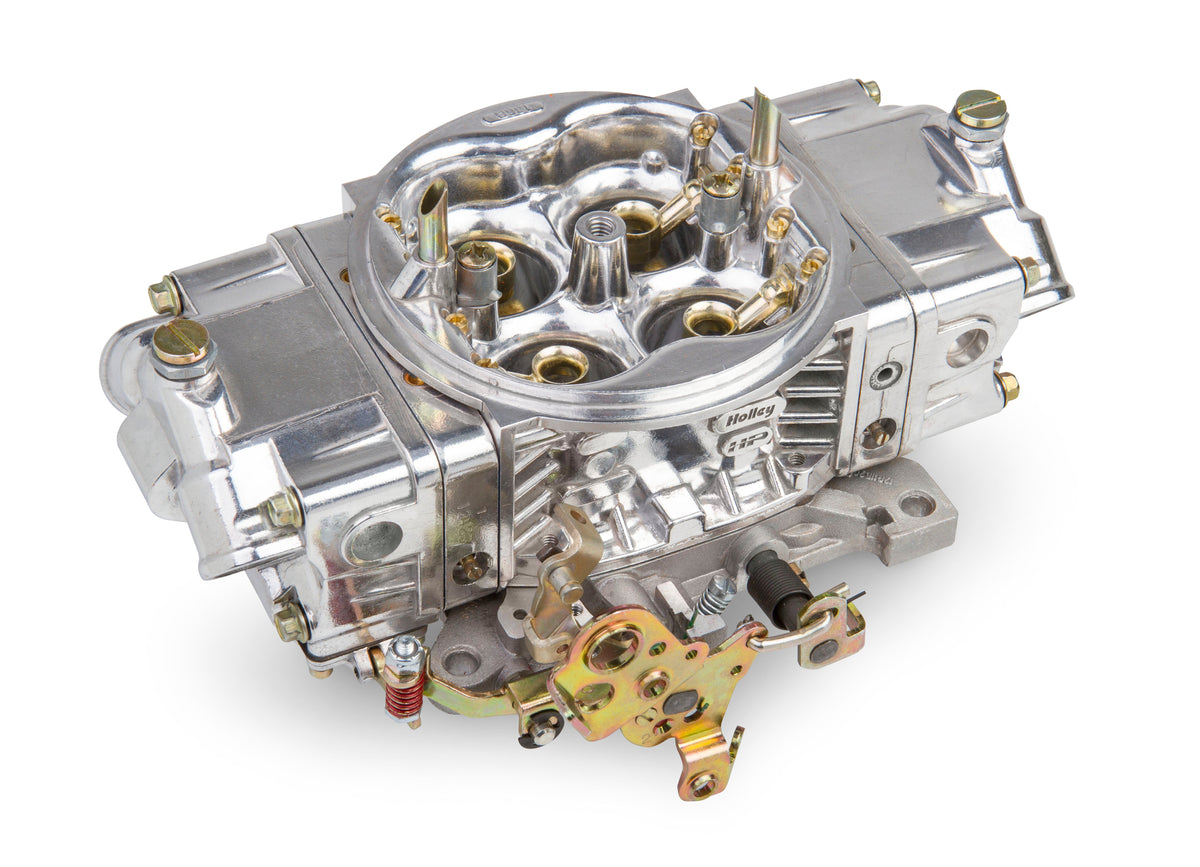

Holley Aluminum Street HP Carburetor - 0-82751SA
$799.95
Skip to product information
Tire smoking performance has never been so affordable! The all new Aluminum Street HPs weigh up to 40% less and are even easier on your wallet.
Holley is proud to introduce the all new Aluminum Street HP™. They utilize the best features from Holley's Race Bred 4150 HP™ carbs, but are tamed for street and light competition use. The Street HP features an aluminum contoured main body design taken from the race winning 4150 HP™ and has a tumble polished shiny finish and screw in air bleeds for precision tuning capabilities. The metering system includes a timed spark port for a vacuum advance distributor and is calibrated for a hot street/strip engine setup for outstanding throttle response, drivability and maximum performance. A street HP base plate is used on the 650 and 750 cfm models so there are plenty of vacuum ports for power brakes, PCV, etc.
The Aluminum Street HP takes all the great features from the race bred HP and the Double Pumper and combines them into the perfect street/strip carburetor.
Holley Aluminum Street HP Carburetor - 0-82751SA
$799.95
Features:
- Aluminum construction for weight savings and long lasting good looks
- Optimized street/strip calibration for outstanding throttle response and drivability
- Contoured venturi inlet offers balanced airflow for increased horsepower
- Screw in air bleeds for precision tuning capabilities
- Four corner idle for precise idle control
- Mechanical secondaries for awesome tire turning performance
- Dual accelerator pumps for additional fuel under initial acceleration
- Dual feed fuel inlets for constant high volume fuel delivery
- Available in 650, 750, 850, and 950 CFM versions
- Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
Product Specifications:
- Product Details: 750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
- Adjustable Air Bleeds: Yes
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster: Downleg
- Booster Design: Downleg
- Carburetor Material: Aluminum
- Carburetor Use: Performance and Race
- CFM: 750
- CFM Rating: 750
- Choke: None
- Choke Type: None
- Circuit Count: 2
- Color: Polished Aluminum
- Condition: New
- Cubic Feet Per Minute Rating: 750
- Finish: Polished
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street/Strip
- High Speed Air Bleed: 36
- Idle Air Bleed Size: 71
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Shiny
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 77
- Primary Main Jet Size: 77
- Primary Power Valve: 4.5
- Primary Pump Nozzle Size: 28
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.375
- Product Type: Carburetor
- Secondaries: Mechanical
- Secondary Barrel Type: Mechanical
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 84
- Secondary Pump Nozzle Size: 31
- Secondary Throttle Bore Diameter: 1.688
- Series: Street HP
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.688 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
- Venturii Size: 1.375 inch
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
