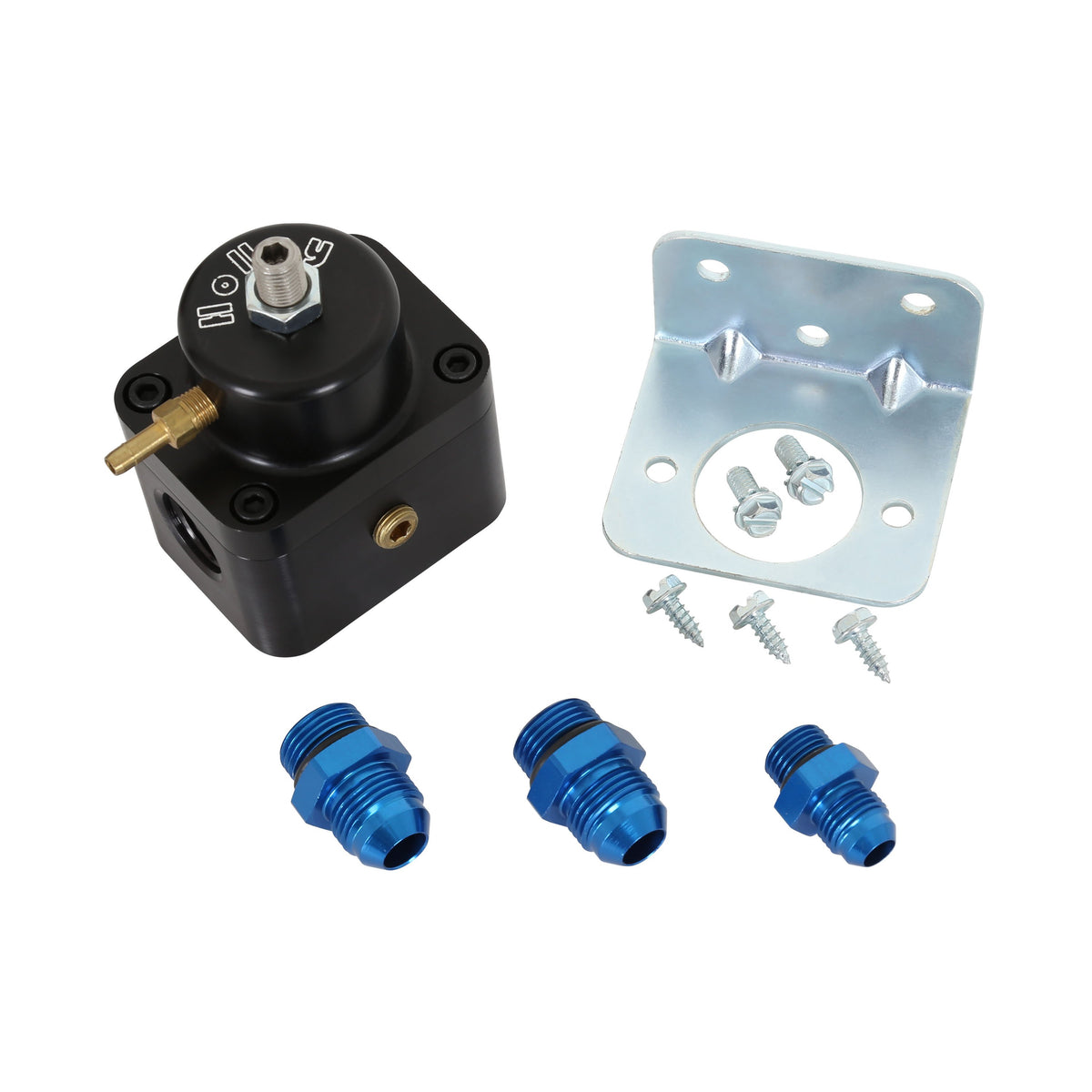

Holley Boost Compensating Universal EFI Fuel Pressure Regulator - 512-504-5
$449.95
Skip to product information
This precision adjustable fuel metering regulator is the ultimate fuel pressure control unit designed to work on all naturally aspirated EFI, turbo and supercharged applications like vehicles that run in the Pro Street, Pro Import and Outlaw classes. This is a 2 port 1:1 boost compensating return style regulator that is adjustable from 15-65 PSI +
boost reference and is designed to be used in conjunction with any electric EFI fuel pump. Features built in gauge port, mounting bracket, two AN -8 O-ring fittings and a AN-6 O-ring return fitting.
Black anodized.
Holley Boost Compensating Universal EFI Fuel Pressure Regulator - 512-504-5
$449.95
Features:
- Black anodized
- Easy installation
- -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
- Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
- Engineered to regulate extreme flow volumes generated by racing fuel systems
- CNC machined billet aluminum
- Allows adjustment from 15-65 psi + boost reference
Product Specifications:
- Product Details: Hot Street/Race EFI Applications Two Port Adjustable from 15-65 PSI
- Adjustable: Yes
- Color: Hard Coat Anodized
- Fuel System: Gasoline
- Fuel Type: Gasoline
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: 8 AN ORB
- Inlet Port Quantity: 1
- Inlet Size: 8 AN O-Ring
- Inlet Type: 8 AN ORB
- Material: Aluminum
- Maximum Pressure: 65 PS
- Minimum Pressure: 15 PS
- Mounting Bracket Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 6 AN ORB, 8 AN ORB
- Outlet Port Quantity: 2
- Outlet Size: 8 AN O-Ring
- Outlet Type: 6 AN ORB, 8 AN ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 2
- Pressure Range: 15-65 PSI
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Return Size: 6 AN O-Ring
- Style: Bypass
- Vacuum Port Quantity: 1
