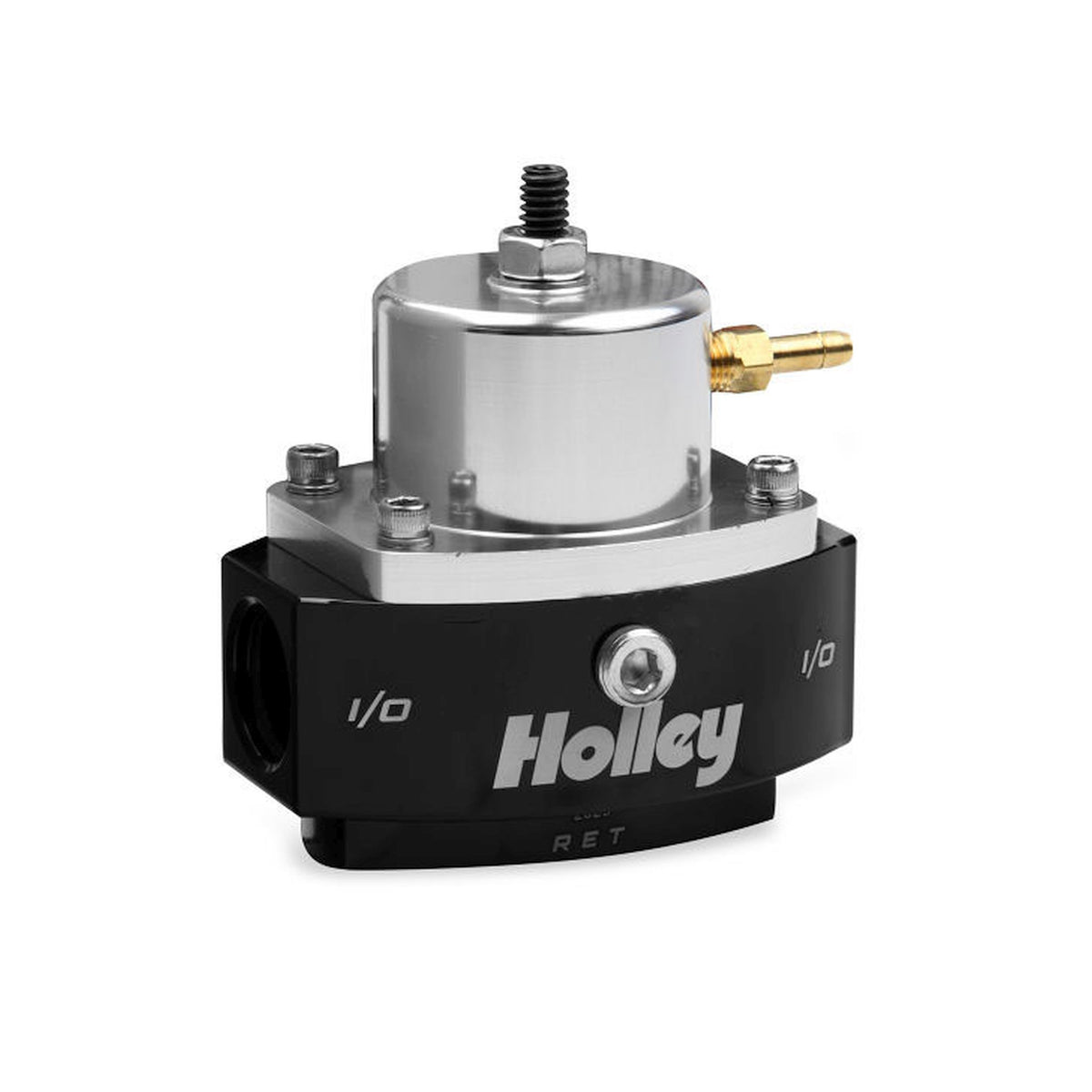

Holley Carb/EFI Adjustable Billet By-Pass Regulator-6AN - 12-880
$207.95
Skip to product information
Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability. These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. A second pressure spring is included allowing you to increase the fuel pressure range up to 65 psi for EFI systems. They are offered with two port sizes, 3/8" NPT or 6AN to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.
Holley Carb/EFI Adjustable Billet By-Pass Regulator-6AN - 12-880
$207.95
Features:
- Carb/EFI adjustable from 4-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and a clear anodized top for good looks
- Used in systems with a return line back to the tank
- (1) 6AN O-ring Inlet, (1) 6AN O-ring Outlet, and (1) 6AN O-ring return
- Includes fitting for manifold reference
- Includes an 1/8 NPT gauge port
- Boost Reference - 1:1
- The 4-15 psi carbureted spring comes installed in the regulator
Product Specifications:
- Product Details: Carb/EFI adjustable billet by-pass return style fuel pressure regulator 6AN Boost Reference - 1:1
- Adjustable: Yes
- Color: Black
- Fuel System: EFI/Carb
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Quantity: 1
- Inlet Size: 6 AN O-Ring
- Inlet Type: 6 AN ORB
- Material: Aluminum
- Mounting Hardware Included: Yes
- Mounting Type: Inline
- Outlet Quantity: 1
- Outlet Size: 6 AN O-Ring
- Outlet Type: 6 AN ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 3
- Product Type: Fuel Pressure Regulator
- Return Size: 6 AN O-Ring
- Style: Bypass
