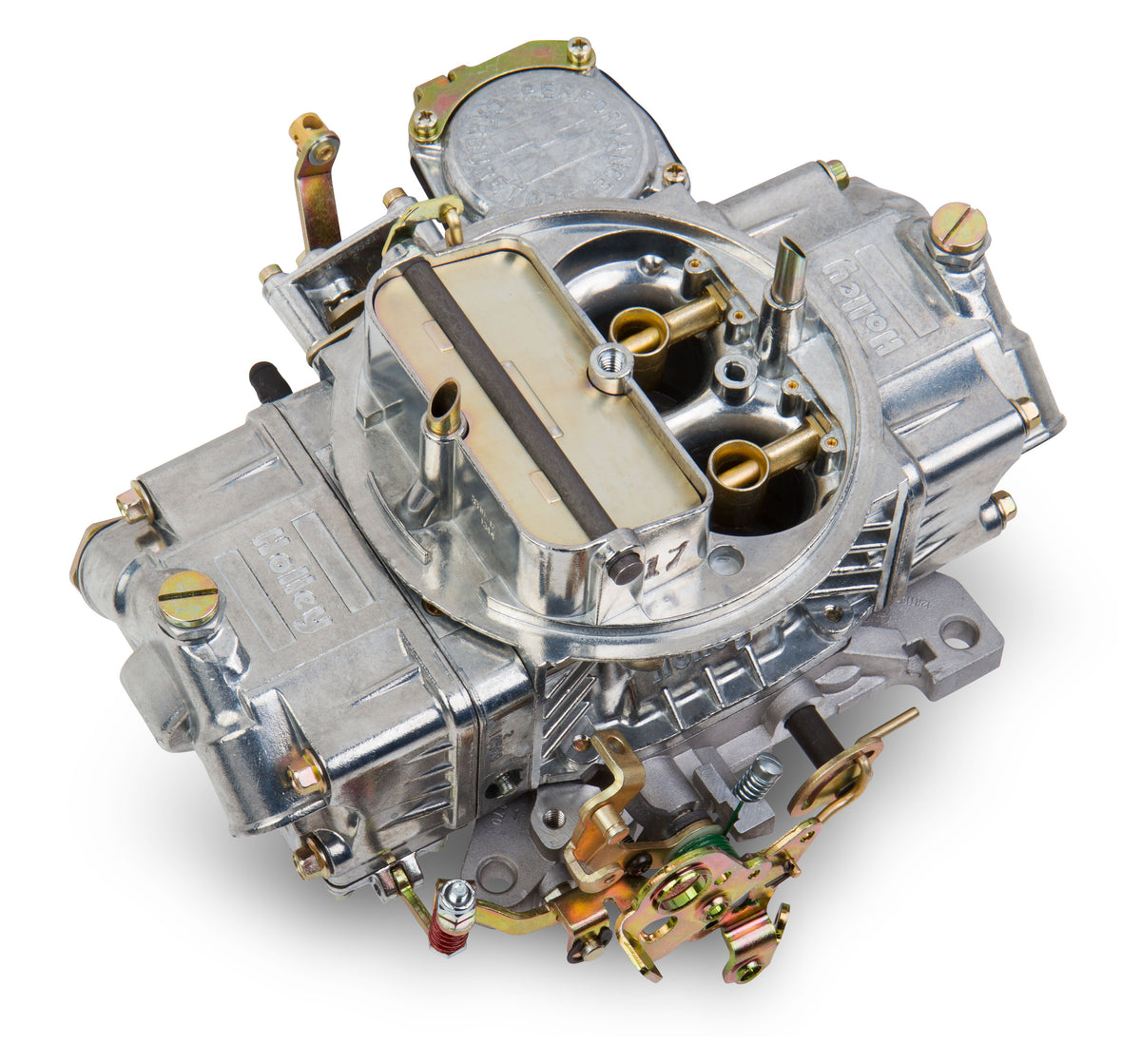

Holley Classic Carburetor - 0-3310S
$549.95
Skip to product information
The 0-3310S is a shiny aluminum version of the classic 0-3310 - a hot rod staple for over four decades! Dual feed fuel inlets assure you get all the fuel you need while its vacuum secondaries and manual choke make it amazingly universal. The famed 0-3310 is one of ten inaugrual inductees into the Hot Rod Magazine Speed Parts Hall of Fame! Its well known performance calibration and 750 CFM airflow keep it on top still today. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's.
Holley Classic Carburetor - 0-3310S
$549.95
Features:
- Vibratory polished for good looks
- Performance upgrade for stock to mildly modified vehicles
- Universal calibration for easy bolt-on performance
- Manual choke (cable actuated - hand controlled) for precise cold start control
- Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
- Dual feed fuel inlets for constant high volume fuel delivery
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Product Specifications:
- Product Details: 750 CFM - 4160 - Vacuum Secondaries - Shiny - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Billet Color: None
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster: Straight
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Street
- CFM: 750
- CFM Rating: 750
- Choke: Manual
- Choke Type: Manual
- Circuit Count: 2
- Color: Polished Aluminum
- Condition: New
- Cubic Feet Per Minute Rating: 750
- Finish: Polished
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 8.8
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Shiny
- Model: 4160
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 72
- Primary Main Jet Size: 72
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.375
- Product Type: Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Throttle Bore Diameter: 1.688
- Series: Classic
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.688 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
