Holley Complete Transmission Installation Kit - 319-501
$1,199.95
Skip to product information

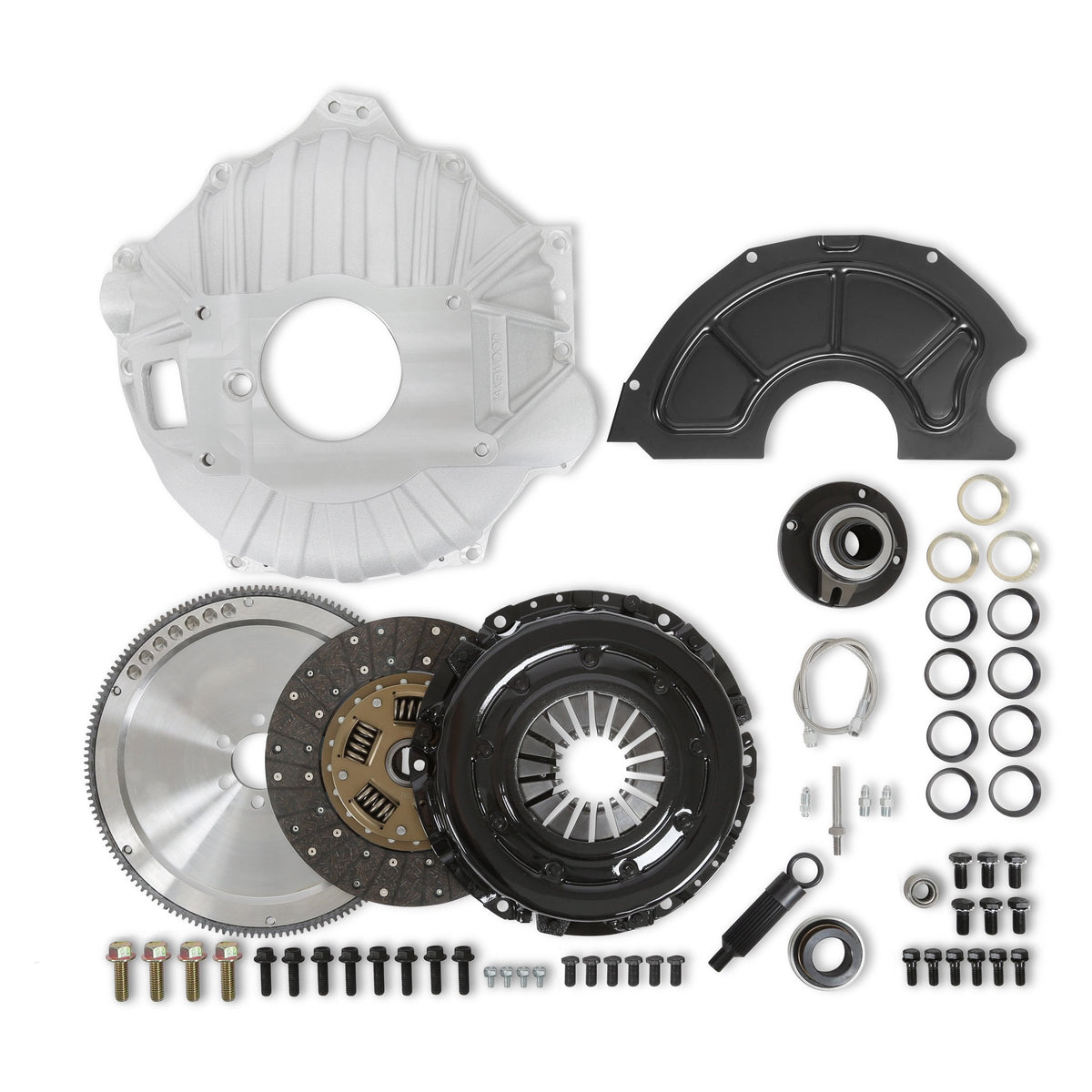

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1986-1993 small-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays, and Mr. Gasket. Kit includes a roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
Holley Complete Transmission Installation Kit - 319-501
$1,199.95
Features:
- Designed for 1986-1993 Small-Block Chevrolet Engines using a TKX or TKO transmission
- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance
- Billet steel 30 lb, 153 tooth externally balanced flywheel for light weight and strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
- 26 spline, 10.50-inch clutch disk offers superior clamping force for engines up to 500 hp
- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Organic clutch disc features heavy-duty hub spring assembly for increased load capacity
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Product Specifications:
- Product Details: For GM TKO/TKX - Fits 1986-1993 Externally Balanced Small Block Chevrolet Engines
- Bellhousing Material: Aluminum
- Disc Diameter: 10.5
- Disc Material: Organic
- Disc Style: Spring Hub
- Engine: Chevrolet Small Block Gen I
- Engine Balance: External
- Engine Make: GM
- Flywheel Balance: External
- Flywheel Material: Billet Steel
- Grade Type: Performance
- Hardware: Steel
- Input Shaft Diameter: 1-1/8 in.
- Input Spline: 26
- Part Type: Transmission Installation Kit
- Pilot Bearing: Roller
- Pressure Plate Style: Diaphragm
- Product Type: Installation Kit
- Release Bearing: Hydraulic
- Transmission: TKO GM, TKX GM
Installation Notes:
Designed for externally balanced small block Chevy engines with 1-pc rear main seal and a 2.067-inch crank register diameter.
