Holley Complete Transmission Installation Kit - 319-601
$2,299.95
Skip to product information

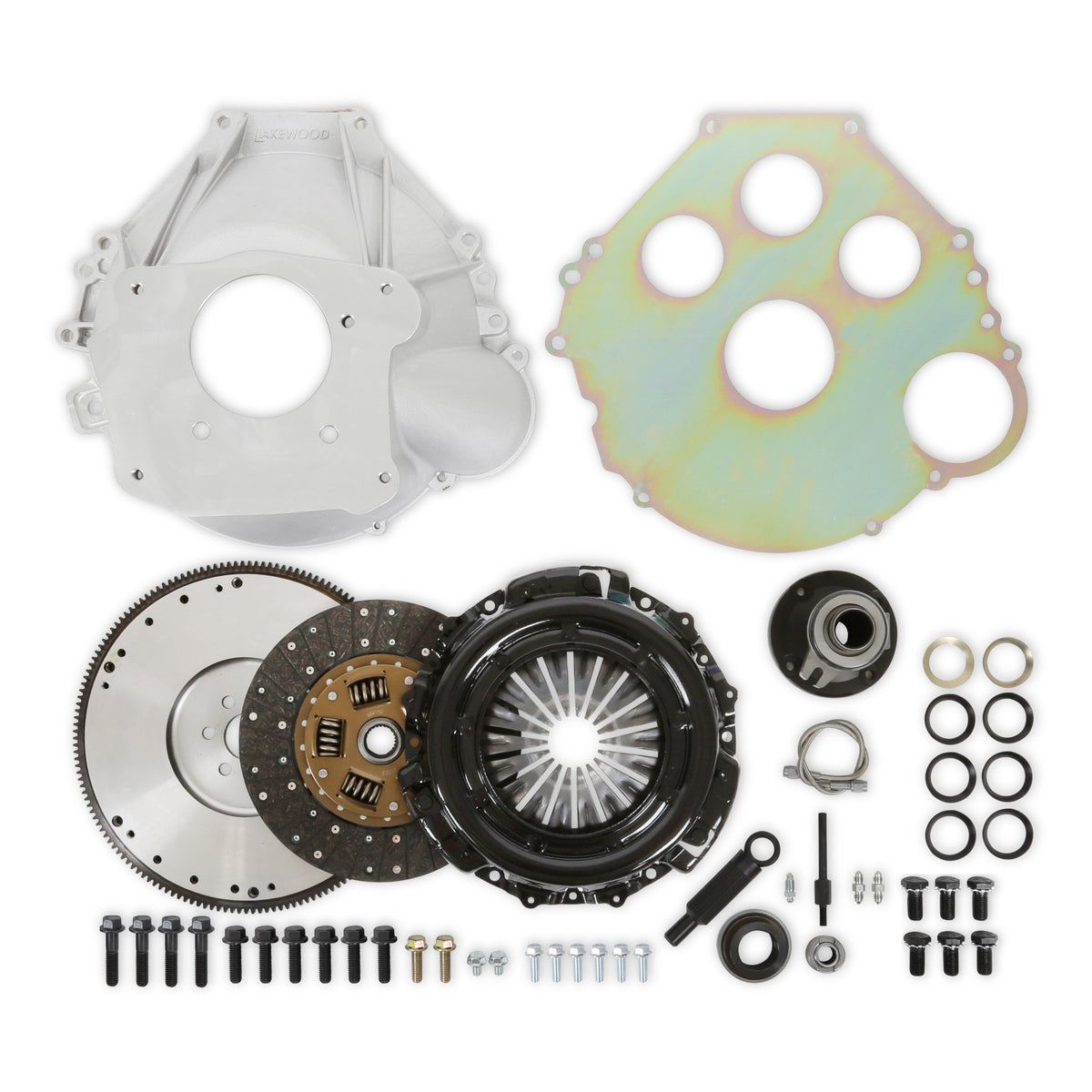

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 50-ounce externally balanced small-block Ford engine. Built with a mixture of our best brands including Lakewood, Hays and Mr Gasket. Kits include: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
Holley Complete Transmission Installation Kit - 319-601
$2,299.95
Features:
- Designed for 50-ounce balance Small Block Ford engines using a TKX or TKO transmission
- Light weight cast aluminum bellhousing and steel block plate provide a factory-like installation and appearance
- Billet steel, 25-pound, 157 Tooth externally balanced flywheel for light weight and strength
- 26 spline, 10.5-inch clutch disk offers superior clamping force for engines up to 500hp
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Product Specifications:
- Product Details: Ford TKX/TKO Installation Kit for 50-ounce externally balanced Small Block Ford Engines
- Bellhousing Material: Aluminum
- Disc Diameter: 10.5
- Disc Material: Organic
- Disc Style: Spring Hub
- Engine: Ford 302, Ford Small Block
- Engine Balance: External
- Engine Make: Ford
- Flywheel Balance: 50-ounce External
- Flywheel Material: Billet Steel
- Grade Type: Performance
- Hardware: Steel
- Input Shaft Diameter: 1-1/16 in.
- Input Spline: 26
- Part Type: Transmission Installation Kit
- Pilot Bearing: Roller
- Pressure Plate Style: Diaphragm
- Product Type: Installation Kit
- Release Bearing: Hydraulic
- Transmission: TKO Ford, TKX Ford
Installation Notes:
Designed for 50 oz externally balanced small block Ford engines. Starter register hole = 4.084 inches
