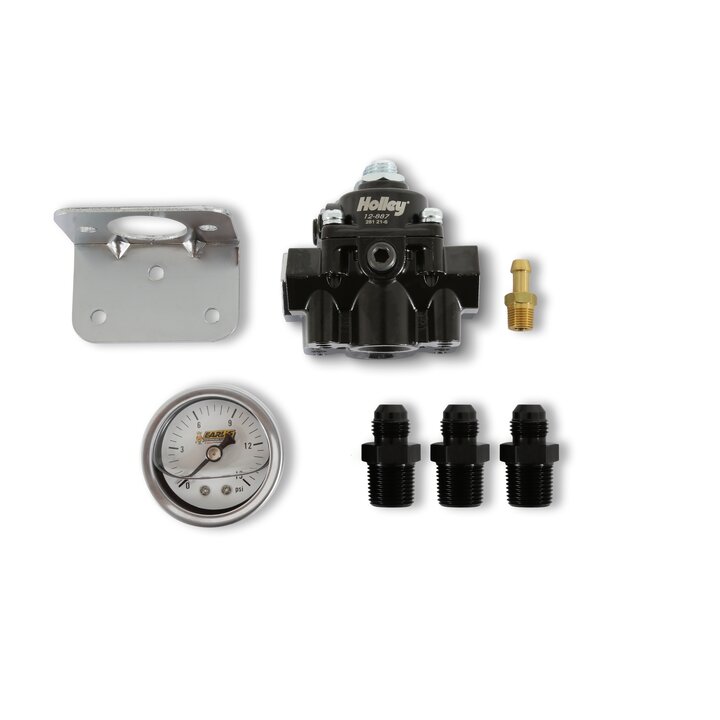

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-887 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, and a 1/8" NPT gauge port. In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Holley Die Cast Bypass Fuel Pressure Regulator Kit - 12-887KIT
$155.95
Features:
- Die Cast Aluminum Construction
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 3/8” NPT Inlet, Outlet Ports
- 3/8" NPT Return Port
- 1/8” NPT Gauge Port
- Earl's Fuel Pressure Gauge (100187ERL)
- Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)
- Mounting Bracket Included
Product Specifications:
- Product Details: 4.5-9 Psi - Fittings and Gauge Included
- Adjustable: Yes
- Color: Black
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Port Diameter: 3/8 IN
- Inlet Quantity: 1
- Inlet Size: 3/8 inch NPT
- Inlet Type: NPT
- Material: Aluminium
- Maximum Pressure Reading: 15 PS
- Mounting Hardware Included: Yes
- Mounting Type: Inline
- Outlet Port Diameter: 3/8 IN
- Outlet Quantity: 1
- Outlet Size: 3/8 inch NPT
- Outlet Type: NPT
- Part Type: Fuel Pressure Regulator
- Port Quantity: 3
- Pressure Range: 4.5-9 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 3/8 inch NPT
- Style: Bypass
Installation Notes:
The mounting holes in the regulator are not threaded. The screws included are self-tapping for use in installation.
