Holley EFI 1600 PSI Stainless Pressure Sensor - 554-104
$225.95
Skip to product information

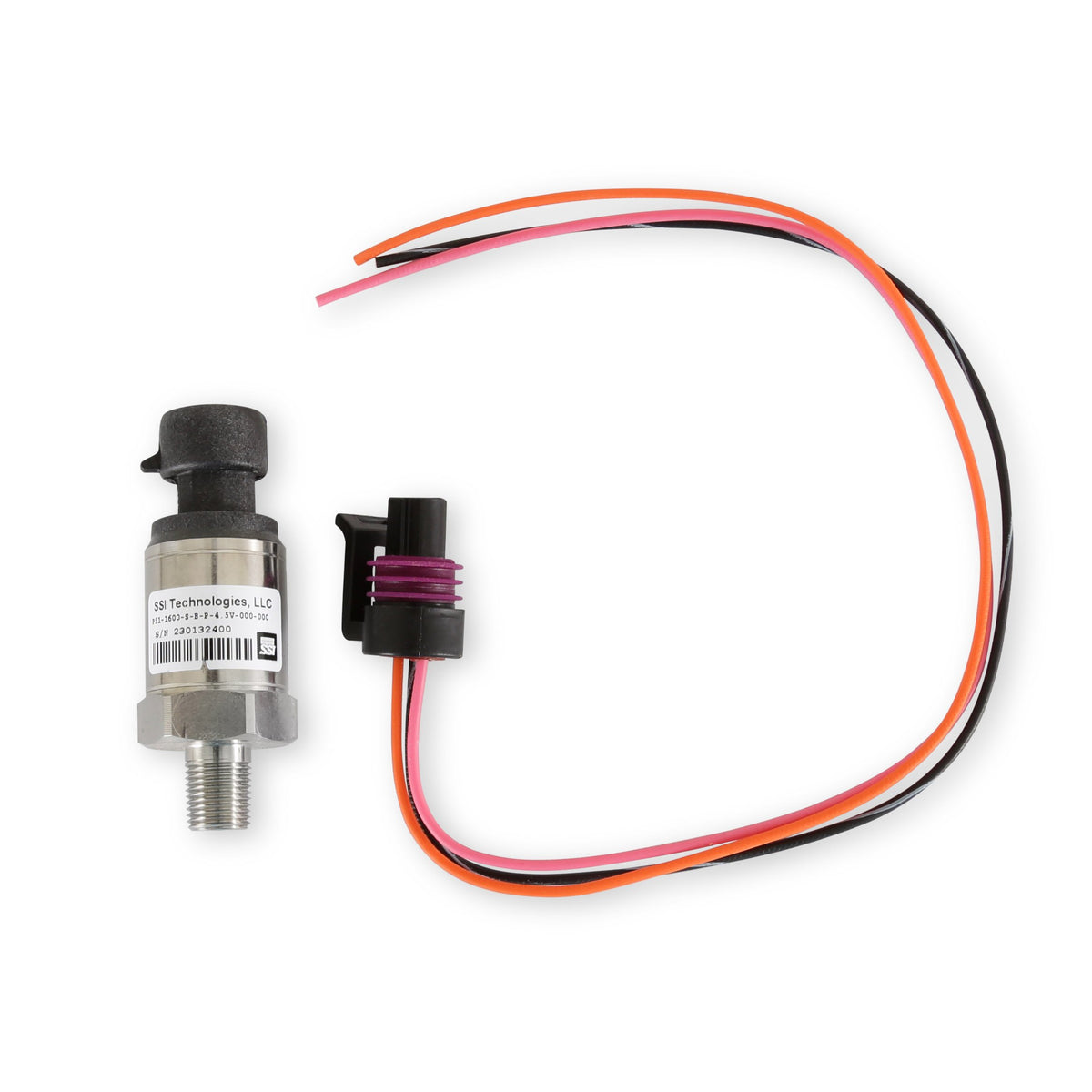

1600 PSI Stainless Pressure Sensor
Holley EFI 1600 PSI Stainless Pressure Sensor - 554-104
$225.95
Features:
- 0-1600 PSI
- Stainless steel
- Preconfigured for use in Dominator and HP systems
- Has linear voltage output range of 0.5 - 4.5 volts
- Pigtail is included with the sensor
Product Specifications:
- Product Details: 1600 PSI Stainless Pressure Sensor
- Body Diameter: .875"
- Body Length: 2.558"
- Connector Gender: Male
- Connector Quantity: 1
- Fuel System Type: EFI
- Grade Type: Performance
- Inlet Size: 1/8 inch NPT
- Linear voltage output: .5 - 4.5 Volts
- Material: Stainless Steel
- Maximum Pressure Reading: 1600 PS
- Mount Type: Screw-In
- Part Type: Fuel Injection Pressure Sensor
- Pressure Range: 0-1600 PSI
- Product Type: Pressure Senser - Transducer
- reference voltage required: 5 Volts
- Terminal Gender: Female
- Terminal Quantity: 1
- Threaded End Diameter: 1/8-27 NPT IN
Installation Notes:
It is not recommended to directly mount a pressure transducer directly to the engine. It is best to remote mount the transducer. Extreme vibration can result in premature failure.
