Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-846KIT
$318.95
Skip to product information

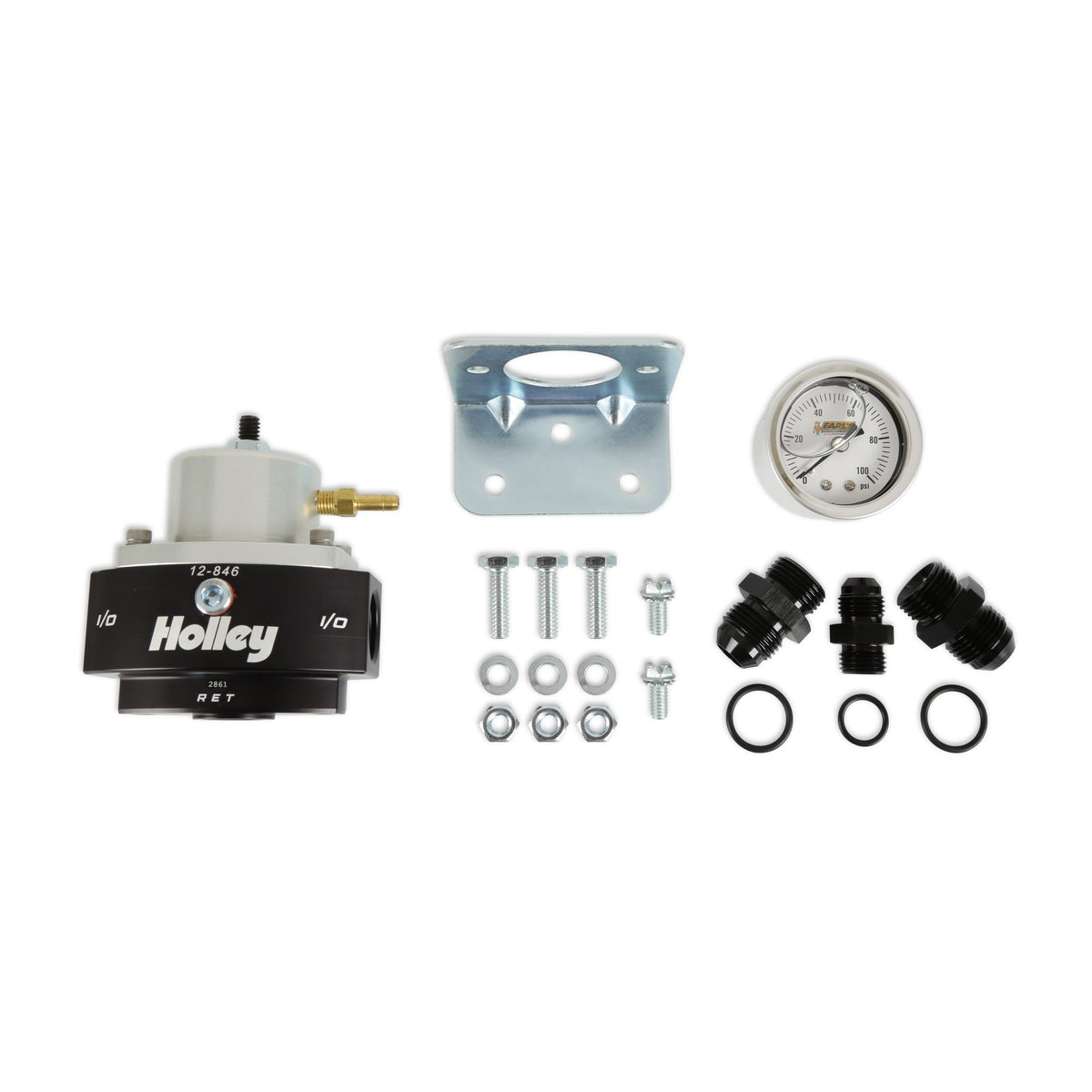

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-846KIT
$318.95
Features:
- Die Cast Aluminum Construction
- Adjustable from 15-65 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port
- 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
- 1/8" NPT Boost Reference (1:1) and Barbed Fitting
- Mounting Bracket Included
Product Specifications:
- Product Details: 15-65 PSI - Fittings and Gauge Included
- Adjustable: Yes
- Color: Black
- Fuel Pressure Range: 15-65 PSI
- Fuel System: EFI
- Fuel System Type: EFI
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Port Diameter: 8 ORB
- Inlet Quantity: 1
- Inlet Size: 8 ORB
- Inlet Type: ORB
- Material: Aluminium
- Mounting Hardware Included: Yes
- Mounting Type: Bolt On
- Outlet Port Diameter: 8 ORB
- Outlet Quantity: 2
- Outlet Size: 8 ORB
- Outlet Type: ORB
- Part Type: Fuel Injection Pressure Regulator
- Port Quantity: 4
- Pressure Range: 15-65 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 6 ORB
- Style: Bypass
