Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-848KIT
$318.95
Skip to product information

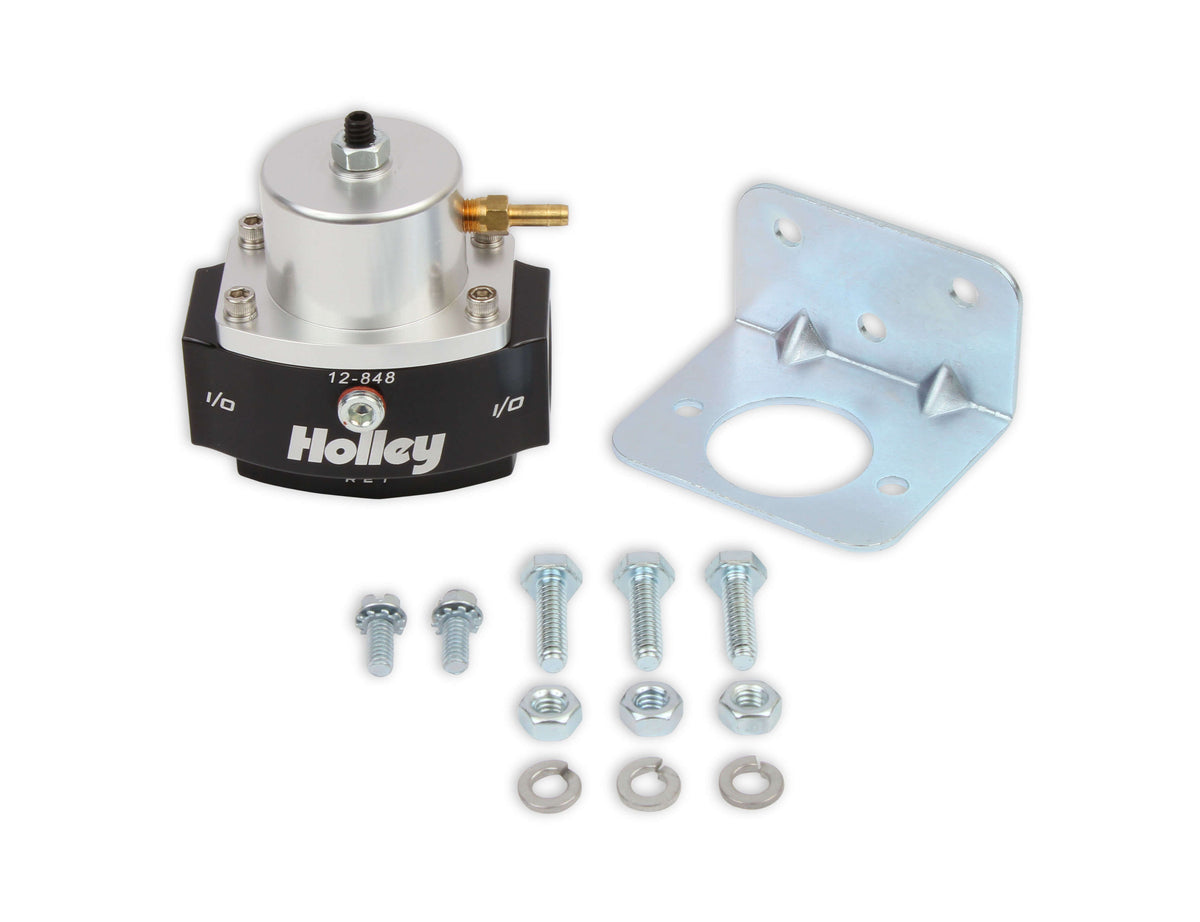

Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.
Holley EFI Billet Bypass Fuel Pressure Regulator Kit - 12-848KIT
$318.95
Features:
- Die Cast Aluminum Construction
- Adjustable from 15-60 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 10 AN O-ring Inlet, Outlet, and 8 AN O-ring Return Port
- 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
- 1/8" NPT Boost Reference (1:1) and Barbed Fitting
- Included mounting bracket
Product Specifications:
- Product Details: Included gauge and fittings
- Adjustable: Yes
- Color: Black
- Fuel Pressure Range: 15-60
- Fuel System: EFI
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Port Diameter: -10AN
- Inlet Quantity: One
- Inlet Size: 10 AN O-ring
- Inlet Type: ORB
- Material: Aluminium
- Maximum Pressure Reading: 60 PS
- Mounting Hardware Included: Yes
- Mounting Type: Bolt On
- Outlet Port Diameter: -10AN
- Outlet Quantity: Two
- Outlet Size: 10 AN O-ring
- Outlet Type: ORB
- Part Type: Fuel Injection Pressure Regulator
- Port Quantity: 5
- Pressure Range: 15-60 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 8 AN O-Ring
- Style: Bypass
