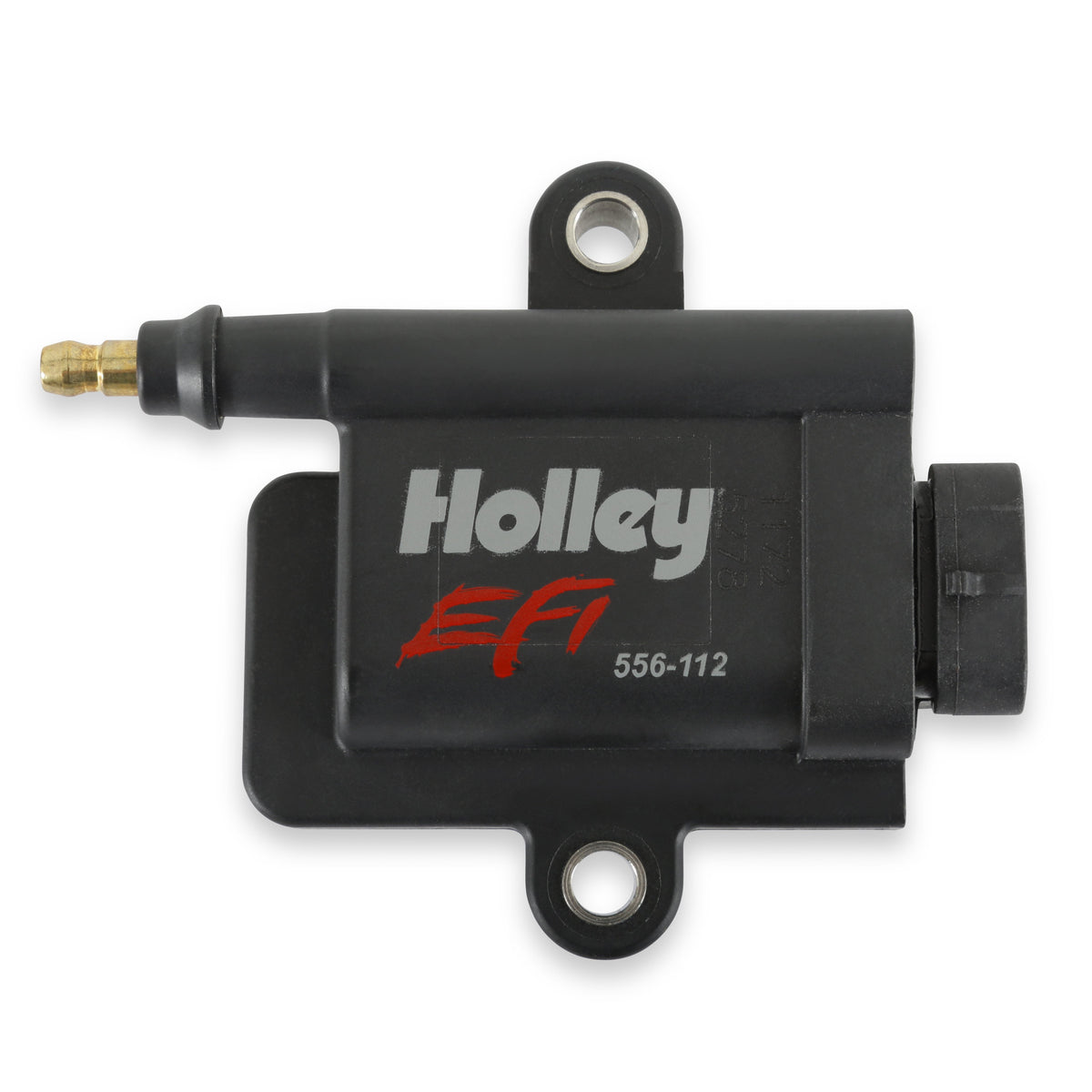

Holley EFI Coil-Near-Plug Smart Coil - 556-112
$99.95
Skip to product information
This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well.
Holley EFI Coil-Near-Plug Smart Coil - 556-112
$99.95
Features:
- Peak Voltage - 44,000V
- Peak Output - 102 Mj
- Maximum Battery Voltage - 17V
- Mating Connector - Delphi P/N 12162825 “Pull to Seat”
- Connector Pin - Delphi P/N 12124075 “Pull to Seat”
- Includes mating connector and pins
Product Specifications:
- Product Details: For Dominator, HP ECU's, and other EFI systems
- Coil Type: Holley SmartCoil
- Coil Wire Included: No
- Color: Black
- Connector Gender: Female
- Grade Type: Performance
- Height: 1.86"
- Ignition Wire Terminal Type: HEI Style Tower
- Mounting Bolt Pattern: 74mm
- Mounting Bracket Included: No
- Mounting Hardware Included: No
- Mounting Hole Quantity: 2
- Oil Filled: No
- Overall Length: 4.3"
- Part Type: Direct Ignition Coil
- Product Type: Distrutorless Ignition - DIS - smart coil
- Terminal Gender: Male
- Width: 3.6"
Installation Notes:
The wire must be fed through the back of the housing, out the front, and then the pin crimped. Pull the wire back in to seat it. Always use proper crimping tools to ensure a proper connection.
