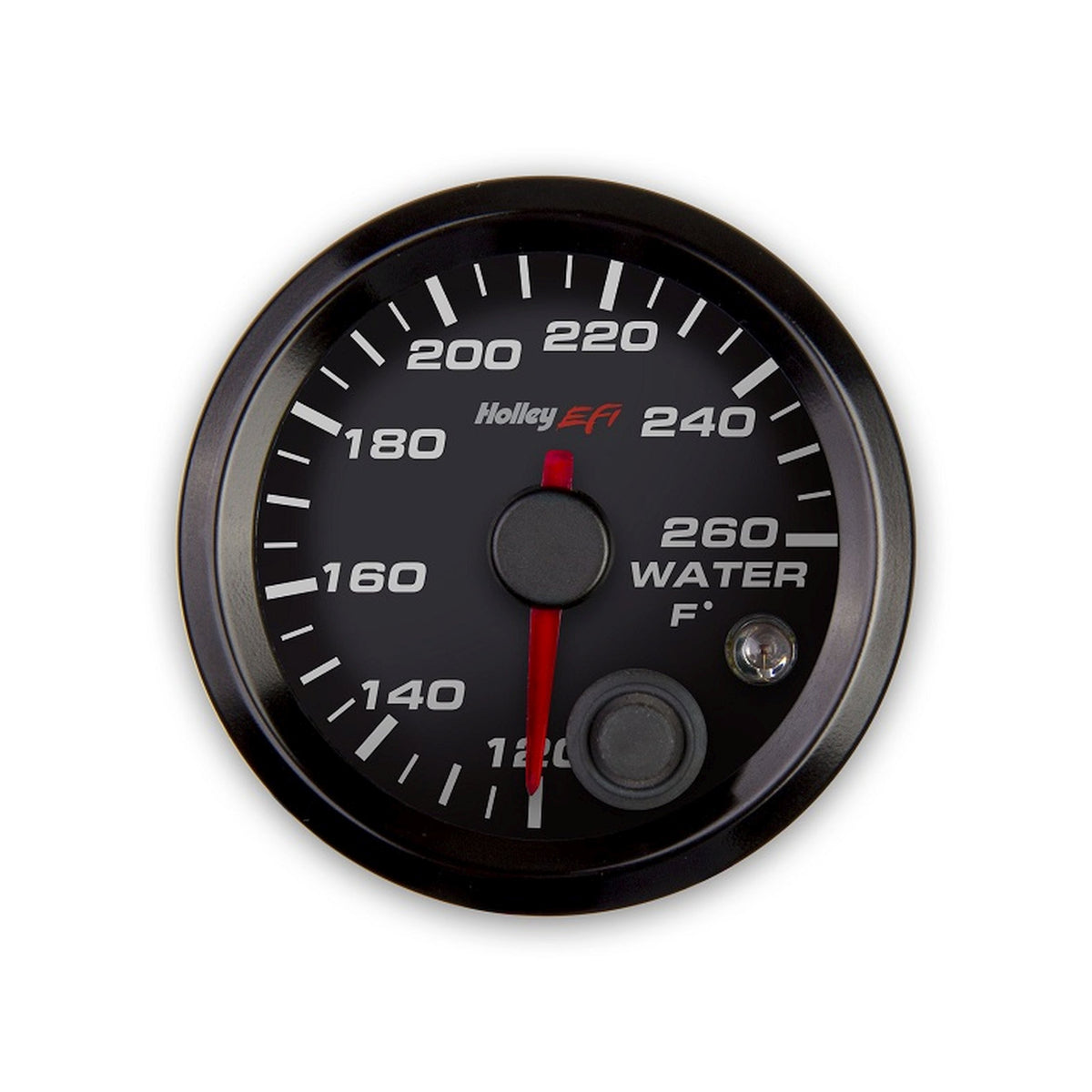

Holley EFI Coolant Temp Gauge - 553-128
$259.95
Skip to product information
These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection.
Holley EFI Coolant Temp Gauge - 553-128
$259.95
Features:
- Plug and play compatibility with all Terminator, HP, and Dominator ECU’s (w/ module P/N 554-130)
- No programming necessary; eliminates the need to install duplicate sending units
- Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set both low and high trigger points
- LED warning light brightness can be configured for both day and night
- Peak recall lets user view the min/max gauge readings with the push of a button
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference
- Gauges include 6 in. daisy chain cable and 3 ft. power harness
- Additional length cables and multi-connection power distribution harness available separately
Product Specifications:
- Product Details: coolant temperature - Standard 2-1/16" size - 120°-260° - Black Face - Black Bezel
- Bezel Color: Black
- Bezel Material: Aluminum
- Body Color: Black
- Color Change Button: No
- Dimmable: No
- Display Type: Analog
- Face Color: Black
- Face Diameter: 2-1/16 IN
- Face Shape: Round
- Gauge Background Color: Black
- Gauge Type: Coolant Temperature
- Grade Type: Performance
- Illuminated: Yes
- Indicator Markings Color: Multiple Colors
- Lens Color: Clear
- Liquid Filled: No
- Maximum Temperature Reading: 260 FA
- Minimum Temperature Reading: 120 FA
- Mounting Hardware Included: Yes
- Mounting Pod Included: No
- Part Type: Engine Coolant Temperature Gauge
- Pointer Color: Red
- Product Type: Gauge
- Sensor Included: No
- Sensor Type: Electrical
- Size: 2-1/16"
- Type: Electrical
- Universal Or Specific Fit: Universal
- Warning Light: Yes
Installation Notes:
Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.
