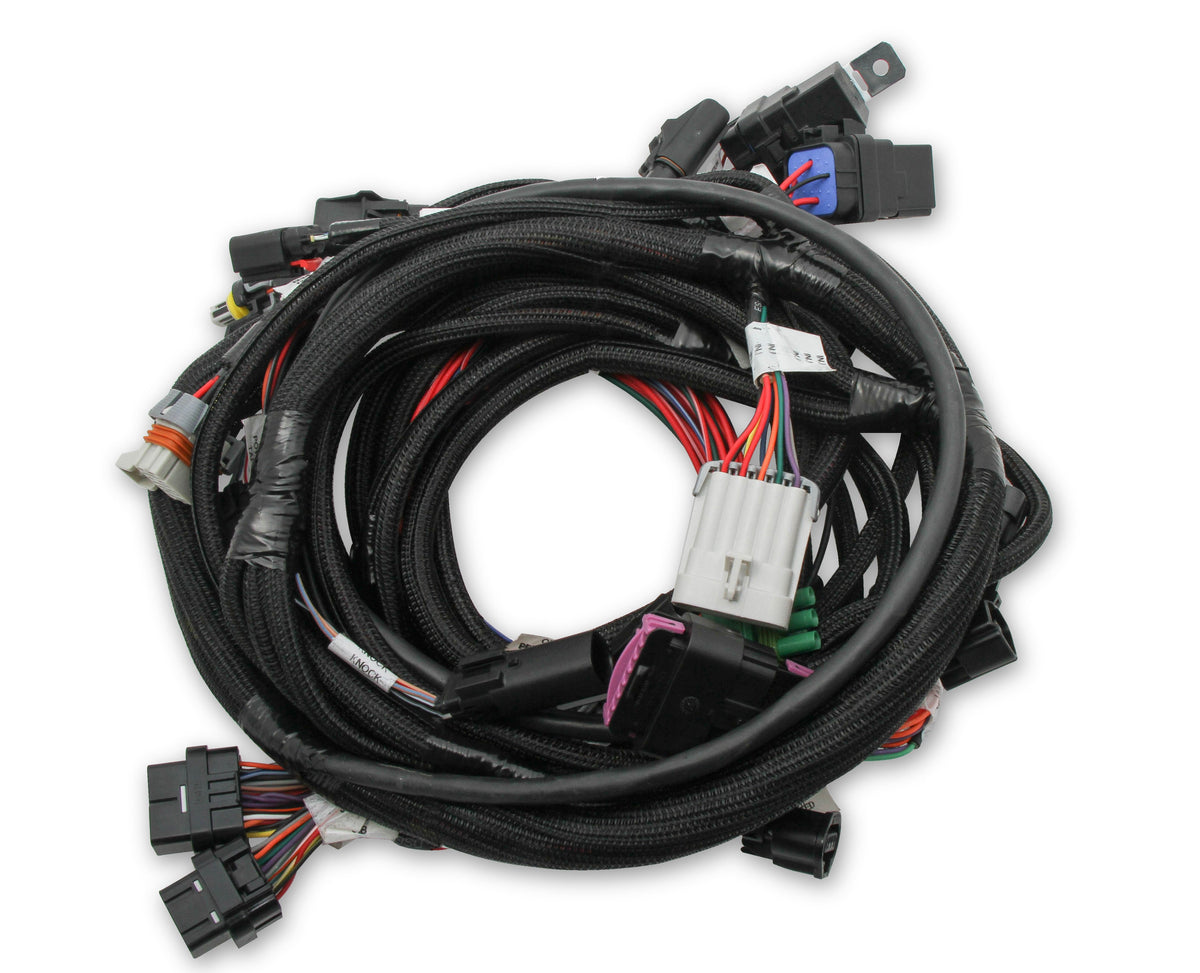

Holley EFI Coyote Ti-VCT Main Harness for Holley EFI HP Smart Coils (2011-2017) - 558-122
$999.95
Skip to product information
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Holley EFI Coyote Ti-VCT Main Harness for Holley EFI HP Smart Coils (2011-2017) - 558-122
$999.95
Features:
- Plug and Play Coyote Main Engine Harness
- Connectors are labeled for easy identification
- Terminated with Ford TPS and IAC Connectors for DBW to Cable Driven Throttle Body Conversions (99-04 Style Connectors)
- Includes Power Tap Connector for additional powers and grounds for sensors or solenoids
- Single CAN connector for optional accessories, such as the Holley EFI Digital Dash (553-106)
- Optional Fuel and Oil Pressure transducer connectors pre-terminated for datalogging or gauge monitoring
Product Specifications:
- Product Details: Coyote Ti-VCT Main Harness for 2011-2017 Coyote Engines using Holley EFI HP smart coils
- Grade Type: Performance
- Harness Application: Ford
- Harness Type: Main
- Part Type: Engine Wiring Harness
- Product Type: ECU Assembly
Installation Notes:
Requires MAP Sensor P/N 538-24 Designed to be used with Holley EFI Smart Coil Kit: 556-127 or 556-128 Or Holley EFI Smart Coil Harness: 558-312 or 558-318 and Holley EFI HP Smart Coils - 556-112 When utilizing this Harness with Ti-VCT applications the following parts are required: 554-145 Coyote Ti-VCT Controller, and supporting Harnesses.
