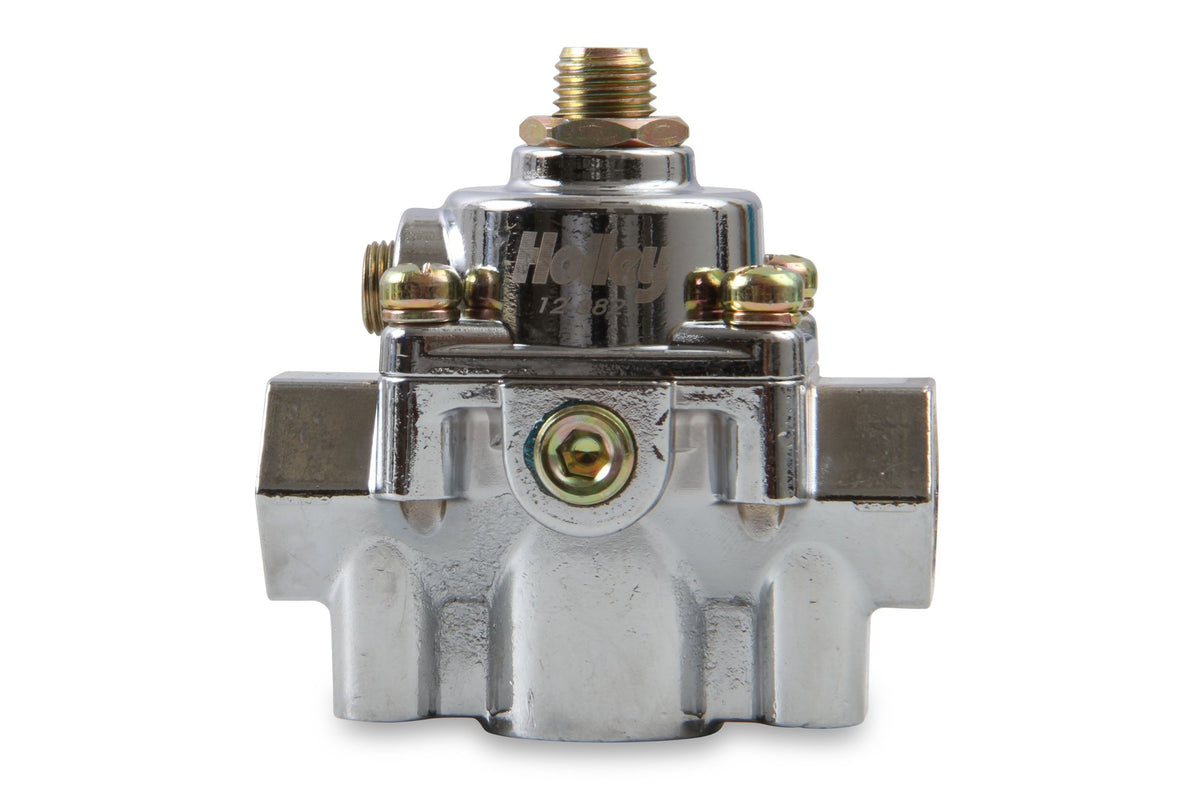

Holley EFI Die Cast EFI By Pass Style Fuel Pressure Regulators - 12-882
$103.95
Skip to product information
Holley does it again with their new die cast aluminum fuel pressure regulators. The same Holley quality that you expect at a price point that every budget can handle.
The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1).
1/8" NPT barb fitting for boost reference port also included.
Holley EFI Die Cast EFI By Pass Style Fuel Pressure Regulators - 12-882
$103.95
Features:
- Die Cast aluminum construction
- 3/8” NPT Inlet, Outlet, and Return ports
- 1/8” NPT Gauge Port
- 1/8" NPT Boost Reference – 1:1
Product Specifications:
- Product Details: Chrome Die Cast Fuel Regulator - 60 PSI
- Adjustable: Yes
- Color: Chrome
- Fuel System: EFI
- Fuel System Type: EFI
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Port Diameter: 3/8 NPT IN
- Inlet Quantity: One
- Inlet Size: 3/8 inch NPT
- Inlet Type: NPT
- Material: Aluminum
- Mounting Hardware Included: No
- Mounting Type: Bolt On
- Outlet Port Diameter: 3/8 NPT IN
- Outlet Quantity: Two
- Outlet Size: 3/8 inch NPT
- Outlet Type: NPT
- Part Type: Fuel Injection Pressure Regulator
- Port Quantity: 5
- Pressure Range: 15-60 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 3/8 inch NPT
- Style: Bypass
Installation Notes:
The mounting holes in the regulator are not threaded. The screws included are self-tapping for use in installation.
