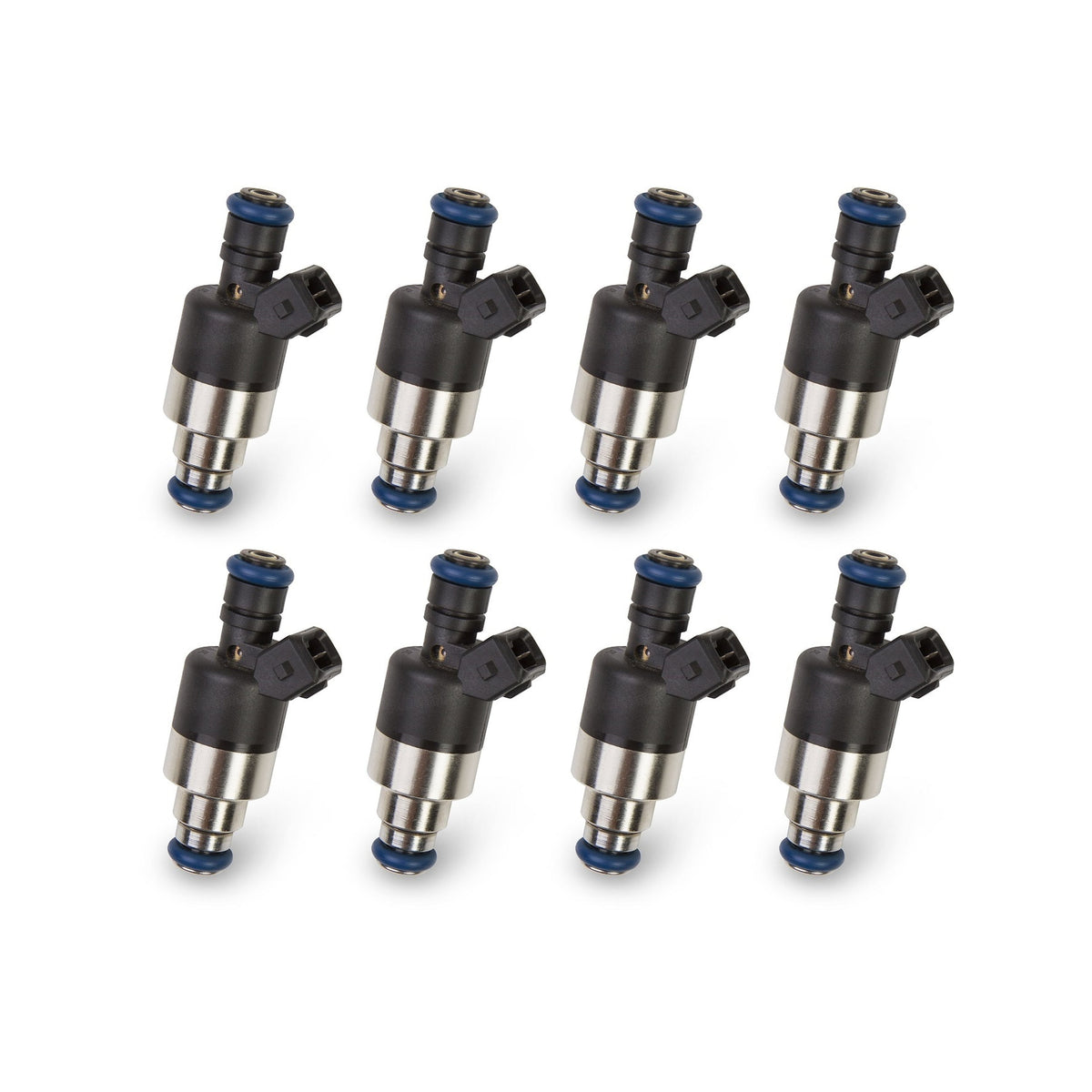

Holley EFI Fuel Injectors - Set of Eight - 522-368
$623.95
Skip to product information
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Holley EFI Fuel Injectors - Set of Eight - 522-368
$623.95
Features:
- Bosch/EV1 style performance injectors - Set of 8
- High impedance (12.2 Ohms) for use with saturated drivers
- Rated injector flow: 36 lb/hr @ 43 PSI
- Supports up to 575 horsepower
- Tri-cone spray pattern
- Compatible with Terminator X
Product Specifications:
- Product Details: Bosch/EV1 - 36 lb/hr - High Impedance
- Body Diameter: 0.97
- Body Length: 2.85"
- Body Style: EV1
- Color: Black
- Connector Series: EV1 - Jetronic - (Bosch Style)
- Connector Shape: EV1 - Jetronic - (Bosch Style)
- Flow Matched: No
- Flow Rate: 36 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High (12.2 Ohm)
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 2.415"
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Qty: 8
- Rated Injector Flow: 36 lb/hr
- Retainer Clips Included: No
- Terminal Gender: Male
Installation Notes:
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
