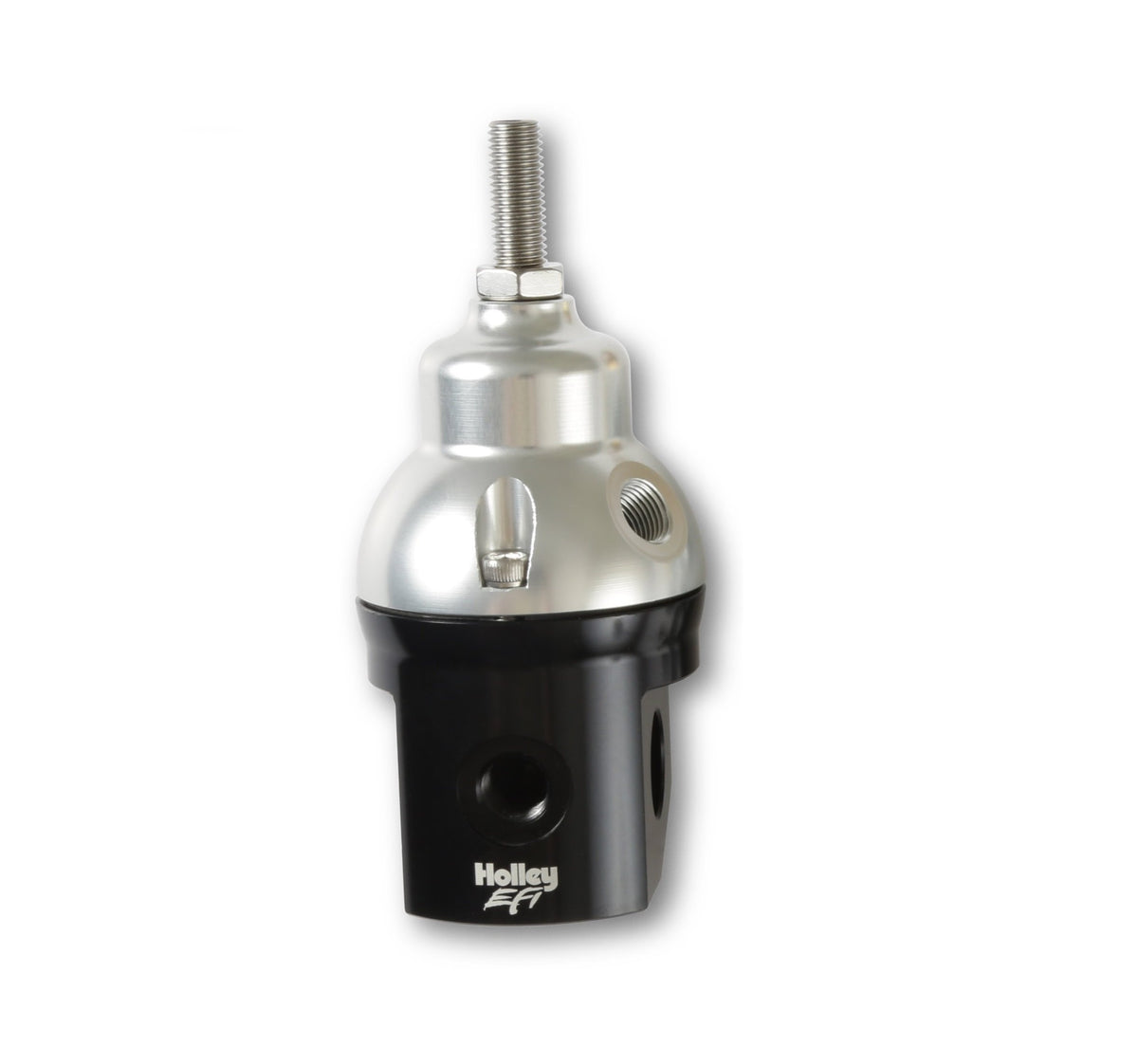

Holley EFI Fuel Regulator 6AN - 12-894
$249.95
Skip to product information
Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.
Holley EFI Fuel Regulator 6AN - 12-894
$249.95
Features:
- Adjustable from 15-90 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems with a return line back to tank
- Includes fitting for manifold reference
- Use with electric pumps only
- Available in -6AN and -8AN Port sizes
- 1/8-inch NPT Boost Reference Port (Ratio 1:1)
- 1/8-inch NPT Fuel Gauge Port
- Mounting bracket included
Product Specifications:
- Product Details: Holley EFI 15-90 PSI Fuel Regulator 6AN Boost Reference 1:1
- Adjustable: Yes
- Color: Black Anodized
- Fuel System: EFI
- Fuel Type: Gasoline
- Gauge Included: No
- Gauge Port: Yes
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: -6AN
- Inlet Quantity: 1
- Inlet Type: ORB
- Material: Aluminium
- Maximum Pressure: 90 PS
- Minimum Pressure: 15 PS
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Mounting Type: Bolt On
- Outlet Gender: Female
- Outlet Port Diameter: -6AN
- Outlet Quantity: 2
- Outlet Type: ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 5
- Pressure Range: 15-90 PS
- Pressure Rating: 15-90 PS
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Style: Bypass
- Vacuum Port Quantity: 1
