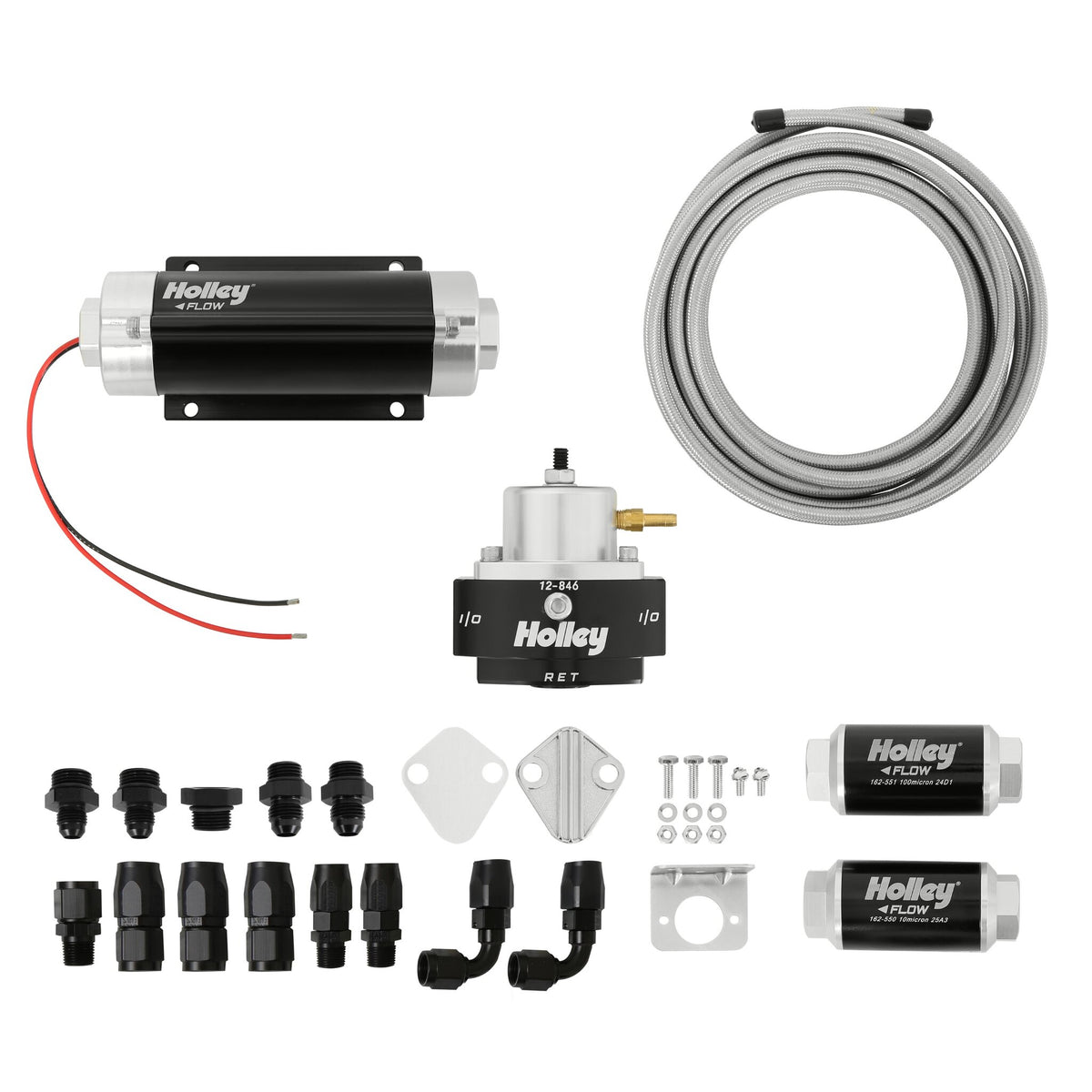

Holley EFI Fuel System Kit - 526-1
$1,449.95
Skip to product information
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They're engineered using Holley fuel pumps, regulators, and filters, coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System.
Holley EFI Fuel System Kit - 526-1
$1,449.95
Features:
- Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI
- Billet Fuel Pump P/N 12-600 65 GPH
- Billet Regulator P/N 12-846 Adjustable from 40-70 PSI with manifold reference
- Billet Filters P/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)
- Earl's Stainless Perform-O-Flex™ Hose P/N 400060ERL, 20 ft. of -6 hose
- Swivel-Seal™ Hose Ends
Product Specifications:
- Product Details: Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Stainless Perform-O-Flex™ hose, Swivel-Seal™ hose ends
- Application: Automotive
- CFM: N/A
- Color: Silver
- Finish: Anodized
- Forced Induction HP@43PSI: 450
- Forced Induction HP@60PSI: 380
- Forced Induction HP@8PSI: 560
- Free Flow GPH: 65
- Free Flow LPH: 302
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- GPH@43PSI: 48
- GPH@60PSI: 41
- GPH@8PSI: 65
- Grade Type: Performance
- Hose Length: 20'
- Hose Series: Earl's Stainless Perform-O-Flex™
- Internal Or External: External
- LPH@43PSI: 181
- LPH@60PSI: 155
- LPH@8PSI: 230
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Naturally Aspirated HP@43PSI: 600
- Naturally Aspirated HP@60PSI: 500
- Naturally Aspirated HP@8PSI: 730
- Negative Ground: Yes
- Outlet Type: ORB
- Part Type: Electric Fuel Pump
- Pressure Range: 40-70 PSI
- Product Type: EFI Fuel System Kit
- Regulator Included: Yes
- Seal And Lock Ring Included: No
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Wiring Harness Included: No
Installation Notes:
Additional items required for installation are -8AN hose and fittings from the tank to pre-filter, hose and fittings from return back to the tank, O-ring lubricant, PTFE paste, -6/-8 rubber coated steel hose mounting clamps, and (2) sets of filter mounting brackes (Holley #162-573). This kit is recommended for pump or race gas use only as the included fuel pump is not compatible with E85.
