Holley EFI Fuel System Kit - 526-2
$1,499.95
Skip to product information
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Holley EFI Fuel System Kit - 526-2
$1,499.95
Features:

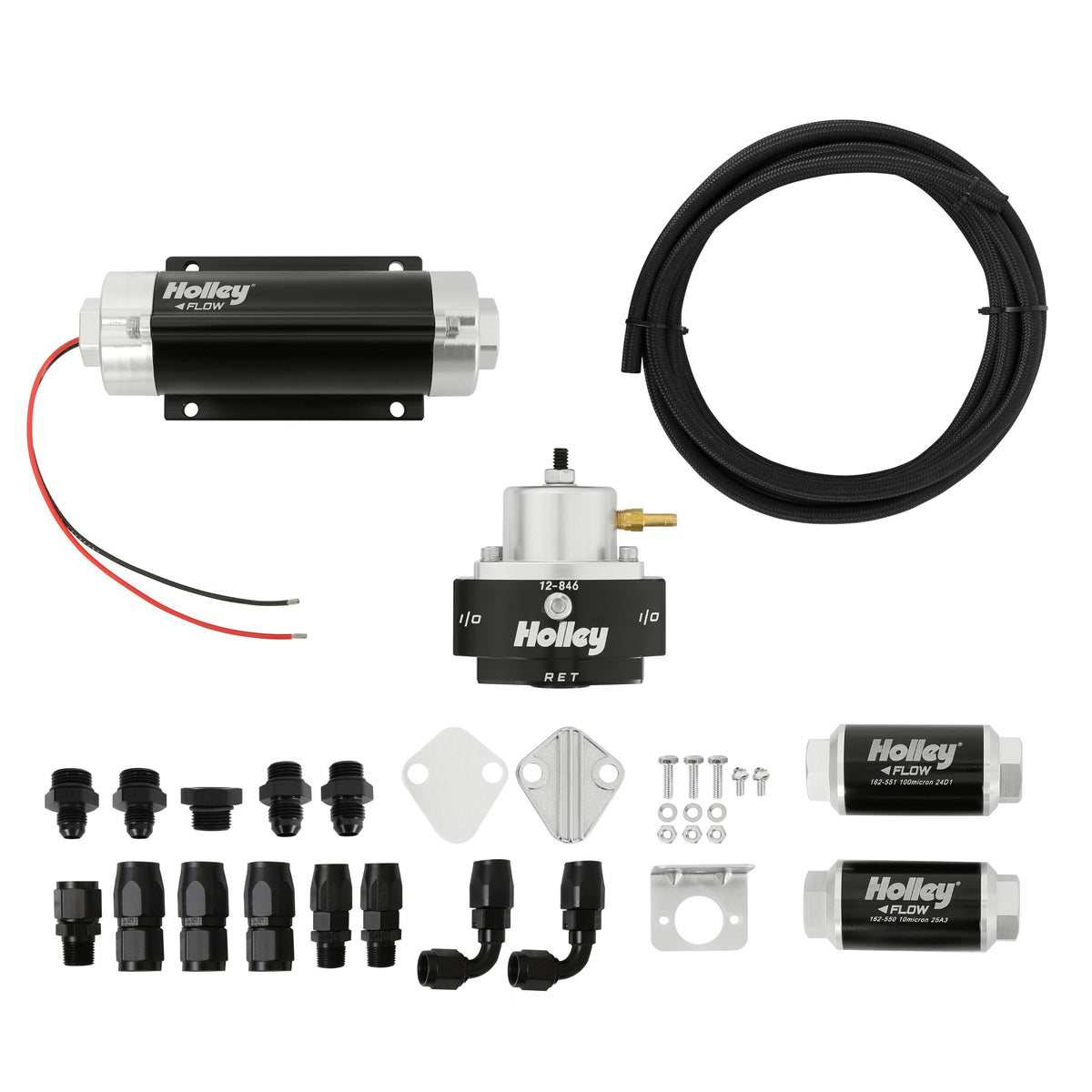

- Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:
- Billet Fuel PumpP/N 12-600 65 GPH
- Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference
- Billet FiltersP/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)
- Earl's Pro-Lite 350™ Black HoseP/N 350006ERL, 20 ft. of -6 hose
- Swivel-Seal™ Hose EndsView the instructions below for a list of all fittings included
Product Specifications:
- Product Details: Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends
- Application: Automotive
- CFM: N/A
- Color: Silver
- Finish: Anodized
- Forced Induction HP@43PSI: 450
- Forced Induction HP@60PSI: 380
- Forced Induction HP@8PSI: 560
- Free Flow GPH: 65
- Free Flow LPH: 302
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- GPH@43PSI: 48
- GPH@60PSI: 41
- GPH@8PSI: 65
- Grade Type: Performance
- Hose End Size: 6 AN
- Hose Length: 20'
- Hose Series: Earl's Pro-Lite 350™ Black
- Internal Or External: External
- LPH@43PSI: 181
- LPH@60PSI: 155
- LPH@8PSI: 230
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Naturally Aspirated HP@43PSI: 600
- Naturally Aspirated HP@60PSI: 500
- Naturally Aspirated HP@8PSI: 730
- Negative Ground: Yes
- Outlet Type: ORB
- Part Type: Electric Fuel Pump
- Pressure Range: 40-70 PSI
- Product Type: EFI Fuel System Kit
- Regulator Included: Yes
- Seal And Lock Ring Included: No
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Wiring Harness Included: No
Installation Notes:
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
