Holley EFI Fuel System Kit - 526-4
$779.95
Skip to product information
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Holley EFI Fuel System Kit - 526-4
$779.95
Features:

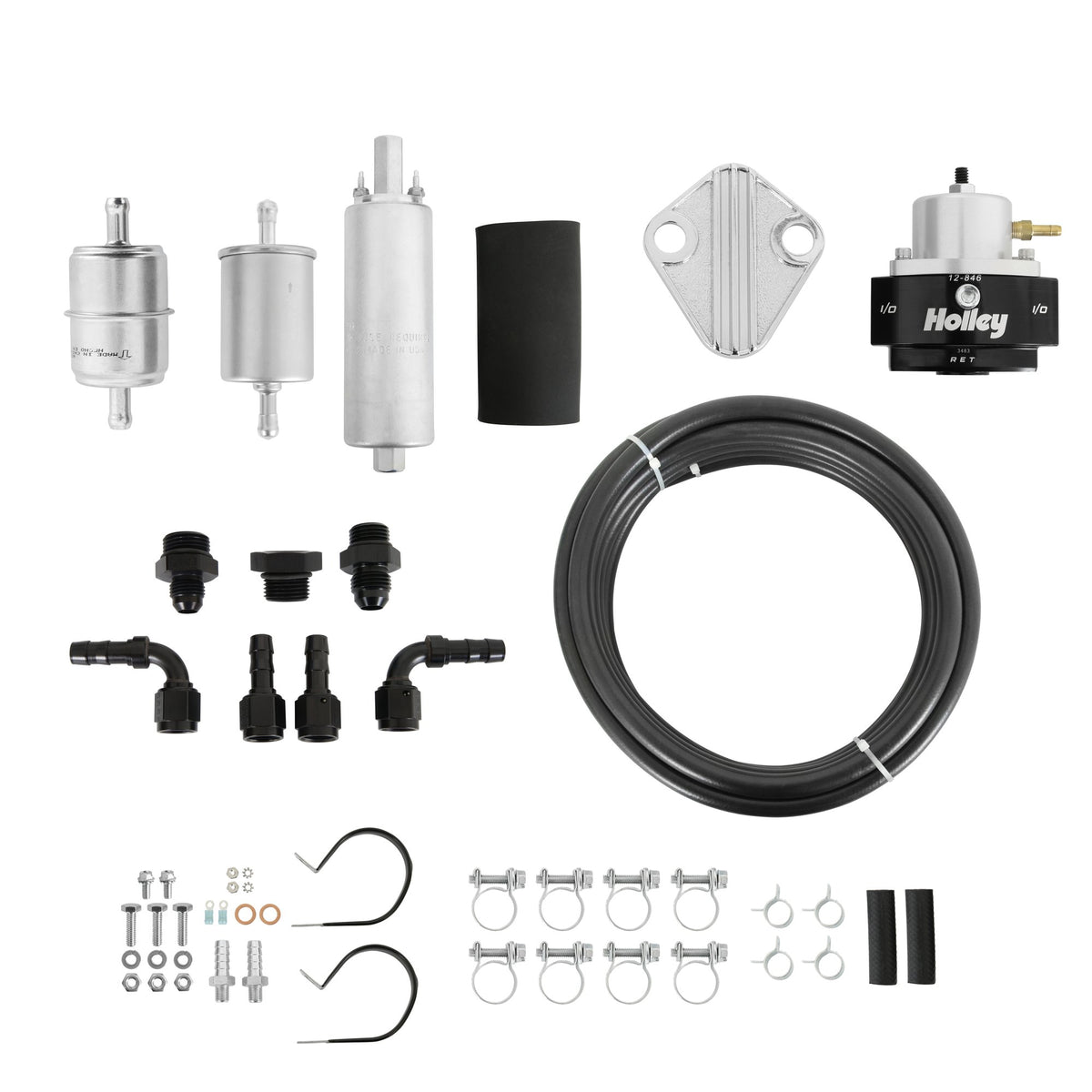

- Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:
- In-Line Fuel PumpP/N 12-920
- Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference
- Pre and Post FiltersP/N 562-1 (10 Micron Post Filter)
- Earl's Super Stock™ Black HoseP/N 780006ERL, 20 ft. of -6 hose
- Earl's Super Stock™ Hose EndsView the instructions below for a list of all fittings included
Product Specifications:
- Product Details: In-line Fuel Pump (12-920), Billet Regulator, Metal Filters, Earl's Super Stock™ hose, Barbed hose ends
- Application: Automotive
- CFM: N/A
- Color: Silver
- Finish: Anodized
- Forced Induction HP@43PSI: 600
- Free Flow GPH: 80
- Free Flow LPH: 302
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- GPH@15PSI: 80
- GPH@43PSI: 67
- GPH@8PSI: 85
- Grade Type: Performance
- Hose Length: 20'
- Hose Series: Earl's Super Stock™ Black
- Internal Or External: External
- LPH@15PSI: 302
- LPH@43PSI: 254
- LPH@8PSI: 322
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Naturally Aspirated HP@15PSI: 800
- Naturally Aspirated HP@43PSI: 700
- Naturally Aspirated HP@8PSI: 850
- Negative Ground: Yes
- Outlet Type: ORB
- Part Type: Electric Fuel Pump
- Pressure Range: 40-70 PSI
- Product Type: EFI Fuel System Kit
- Regulator Included: Yes
- Seal And Lock Ring Included: No
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Wiring Harness Included: No
Installation Notes:
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
