Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure.

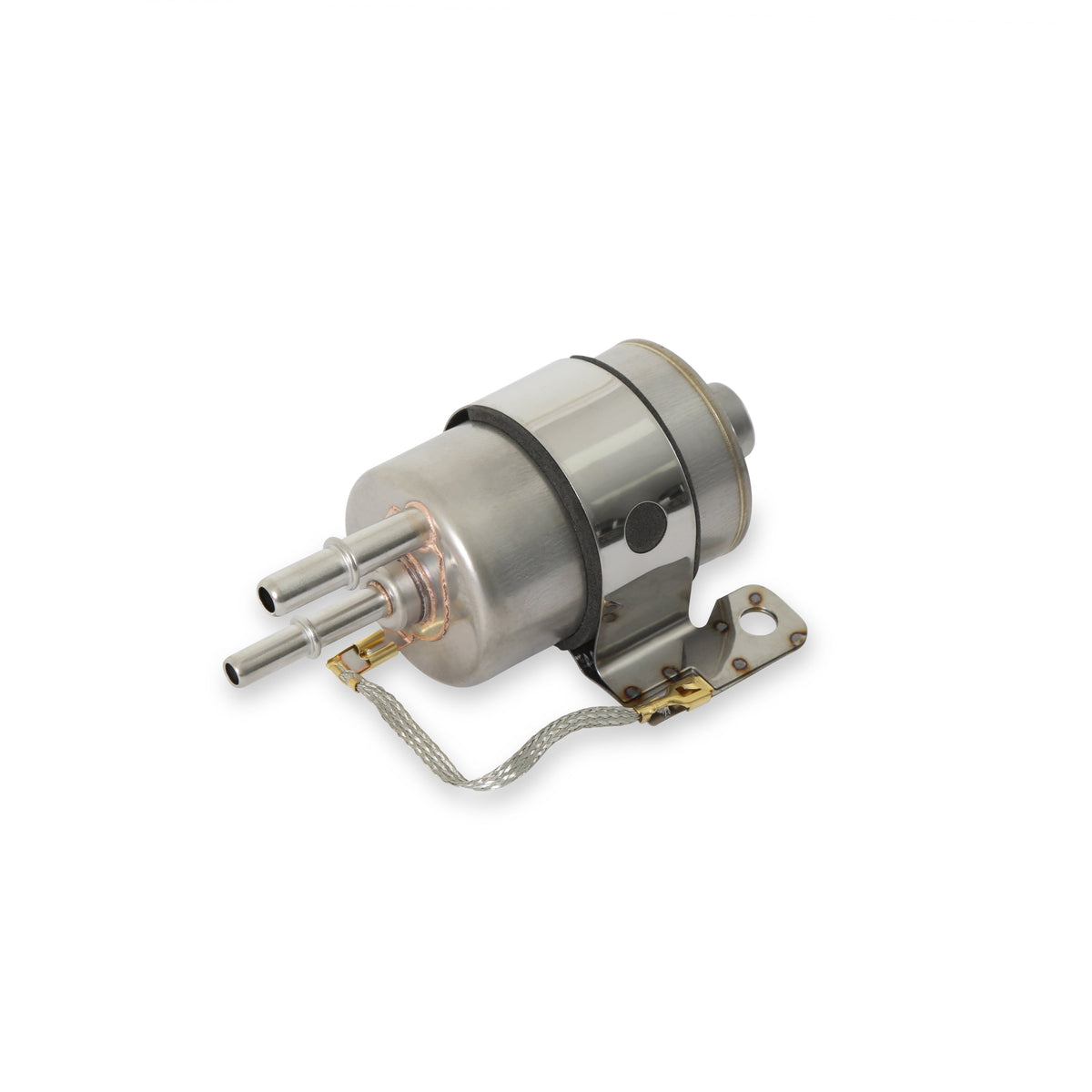

Holley EFI GM Style Filter/ Regulator Standard - 162-590
$56.79
Features:
- GM style Filter / Bypass Style Regulator
- All stainless steel construction for improved corrosion resistance
- Designed with one inlet, one outlet, and one return
- Fixed pressure at 58 psi
- Nominal Micron Rating: 5
- Can be used with other EFI systems that require 58 psi
- Not recommended with fuel pumps that flow over 450 LPH
- Available with stock quick connectors or with -6AN male connections
- Return line required for proper regulator operation
Product Specifications:
- Product Details: Filter / Regulator Assembly, return style preset at 58 PSI, GM quick style connections
- Adjustable: No
- Fuel System: EFI
- Fuel System Type: EFI
- Fuel Type: Gas
- Gauge Port: No
- Grade Type: Performance
- Inlet Quantity: One
- Inlet Type: GM Quick Disconnect
- Material: Stainless Steel
- Micron: 5
- Mounting Hardware Included: No
- Mounting Type: Bolt On
- Outlet Quantity: Two
- Outlet Type: GM Quick Disconnect
- Part Type: Fuel Injection Pressure Regulator
- Port Quantity: 3
- Product Type: Fuel Pressure Regulator
- Style: Return Style
