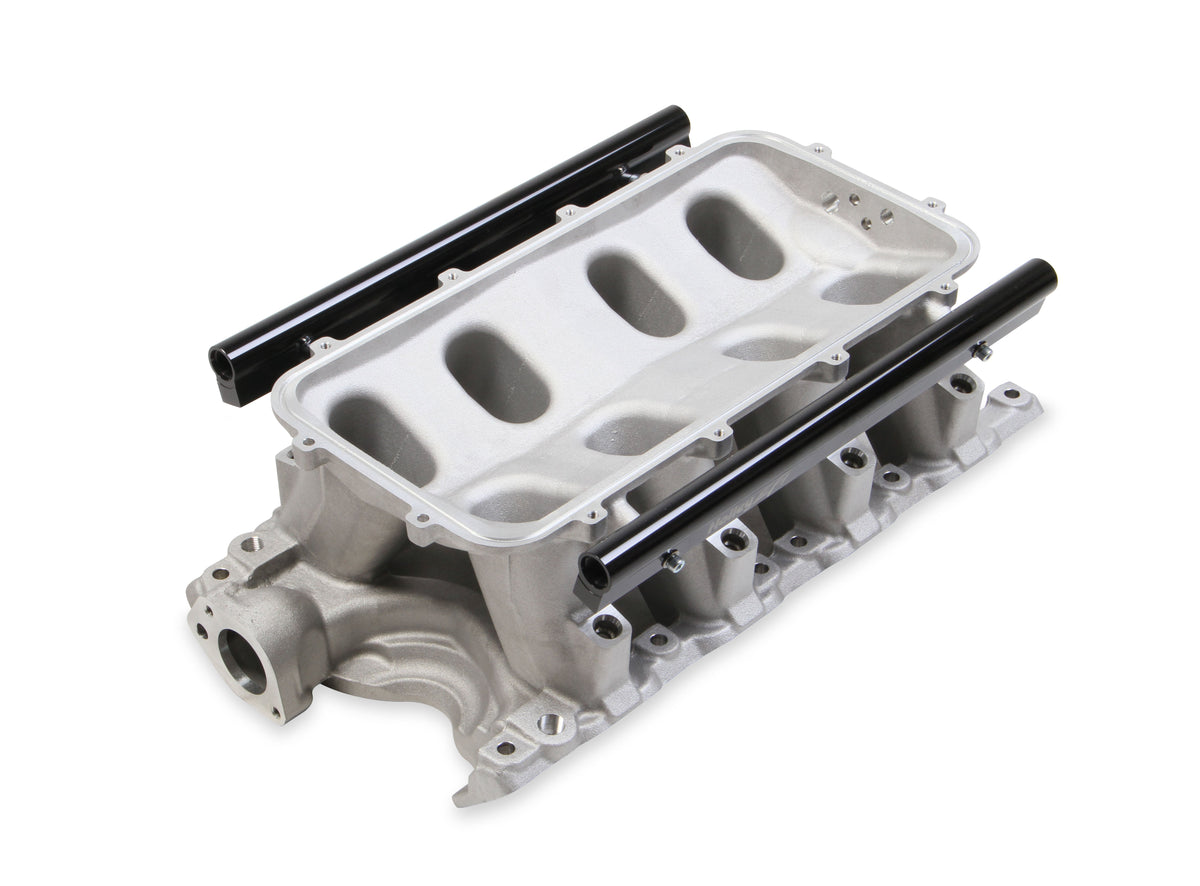

Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244

Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244

$999.95
Skip to product information
Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244
  • Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244
  • Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244
Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244

Holley EFI Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244

$999.95
Manifold is designed for a 9.5" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Manifold width is 11.32". • Cast aluminum construction.

Features:

  • Manifold is designed for a 9.5" deck height.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Requires the Use of Holley EFI Dual Sync Distributor - 565-111
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies

Product Specifications:

  • Product Details: Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base
  • Basic Operating RPM Range: 1500-7000 RPM
  • Carburetor Flange: N/A
  • Carburetor Quantity: N/A
  • Carburetor Studs Included: N/A
  • CNC Ported: No
  • Color: Natural
  • Construction: Cast
  • Cylinder Head Port Shape: Rectangle
  • Deck Height: 9.5 IN
  • EGR Port: No
  • Engine: Ford 351W
  • Flange Style: EFI
  • Fuel Injectors Included: No
  • Fuel Rail(s) Included: Yes
  • Fuel System Type: EFI
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Intake Port Gasket(s) Included: No
  • Manifold Type: Hi-Ram
  • Material: Aluminum
  • Nitrous Bung(s) Included: No
  • Part Type: Engine Intake Manifold
  • Plenum Finish: Natural
  • Port Size: 2.00" x 1.190"
  • Product Type: Intake Manifold Base
  • Removable Runners: No
  • Removable Top/Lid: Yes
  • Single Or Dual Plane Type: Single Plane
  • Throttle Body Bore Diameter: N/A
  • Throttle Body Gasket Included: No
  • Throttle Body Included: No
  • Vacuum Ports: Yes

Installation Notes:

*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. ***Warning- Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
