Holley EFI Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit - 12-886KIT
$145.95
Skip to product information

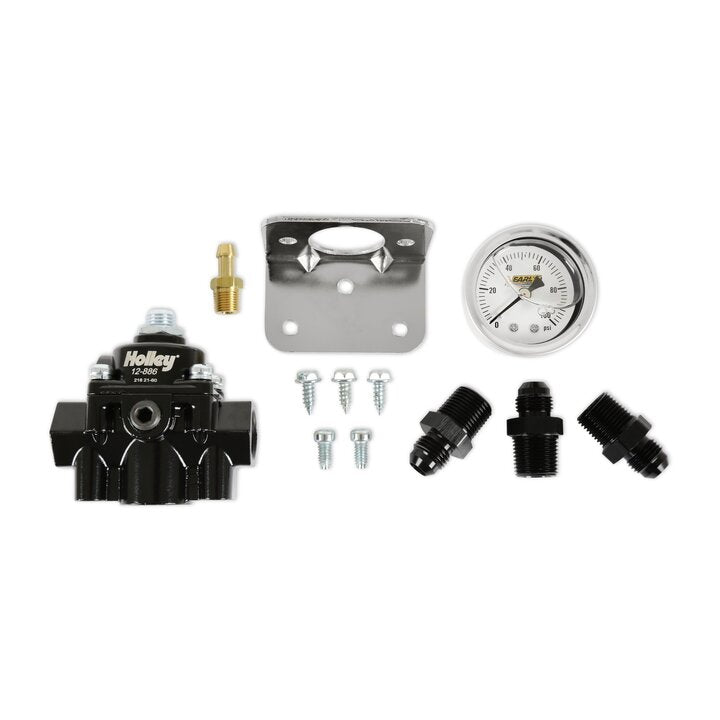

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Holley EFI Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit - 12-886KIT
$145.95
Features:
- Die Cast Aluminum Construction
- Adjustable from 15-60 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 3/8” NPT Inlet/Outlet Ports
- 3/8” NPT Return Port
- 1/8” NPT Gauge Port
- Earl's Fuel Pressure Gauge (100187ERL)
- Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)
- 1/8" NPT Boost Reference (1:1) and Barbed Fitting
- Mounting Bracket Included
Product Specifications:
- Product Details: 15-60 Psi - Fittings and Gauge Included
- Adjustable: Yes
- Color: Black
- Fuel System: EFI
- Fuel System Type: EFI
- Fuel Type: Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Port Diameter: 3/8 NPT IN
- Inlet Quantity: One
- Inlet Size: 3/8 inch NPT
- Inlet Type: NPT
- Material: Aluminium
- Maximum Pressure Reading: 100 PS
- Mounting Hardware Included: Yes
- Mounting Type: Bolt On
- Outlet Port Diameter: 3/8 NPT IN
- Outlet Quantity: Two
- Outlet Size: 3/8 inch NPT
- Outlet Type: NPT
- Part Type: Fuel Injection Pressure Regulator
- Port Quantity: 5
- Pressure Range: 15-60 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 3/8 inch NPT
- Style: Bypass
