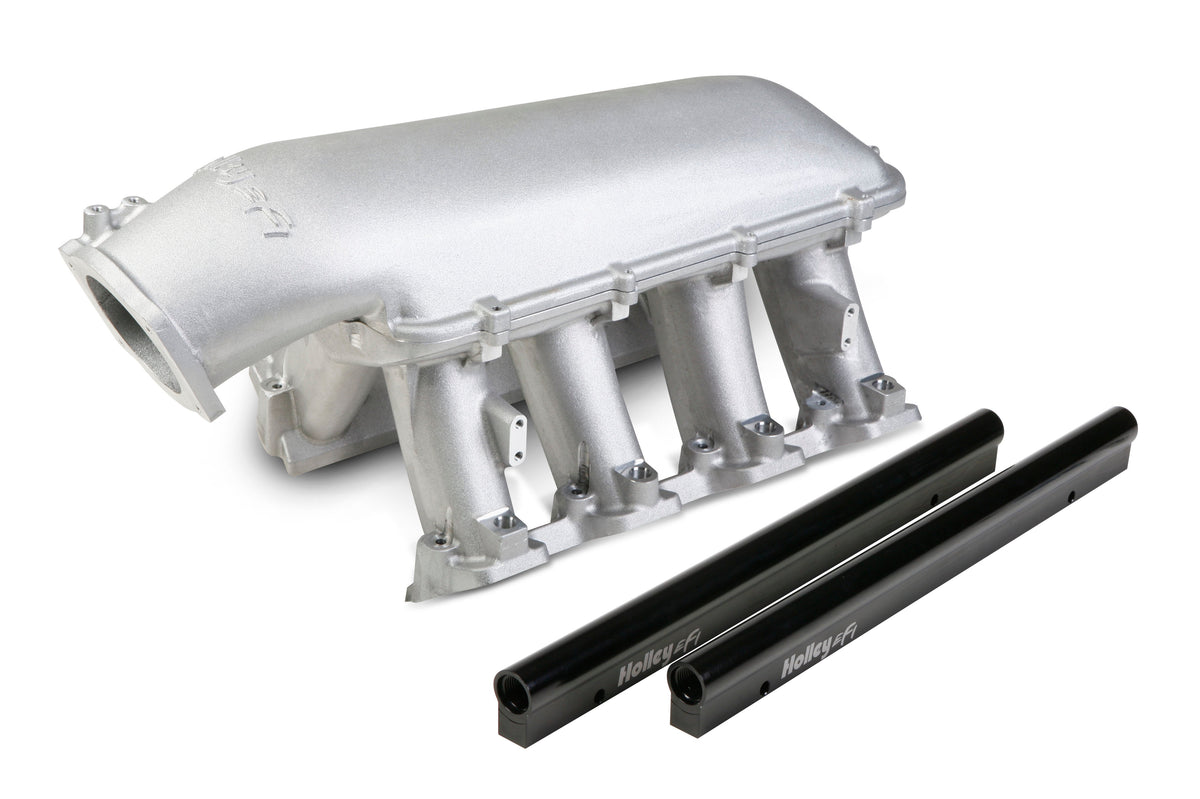

Holley EFI Holley Hi-Ram Intake - GM LS3/L92 - 300-117
$1,249.95
Skip to product information
• Cast aluminum construction.
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
• EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Holley EFI Holley Hi-Ram Intake - GM LS3/L92 - 300-117
$1,249.95
Features:
- Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Port Size – 2.49” Height x 1.21” Wide
- Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
- Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings
- Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
- Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
Product Specifications:
- Product Details: EFI Hi-Ram Intake for 1 x 105mm GM LS Throttle Body - Longitudinal Mount Plenum Top
- Basic Operating RPM Range: 3500-8000 RPM
- Carburetor Flange: N/A
- Carburetor Quantity: N/A
- Carburetor Studs Included: N/A
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.24 IN
- EGR Port: No
- Engine: GM LS3/L92
- Flange Style: EFI
- Front Maximum Height: 12.32 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold
- Recommended Use: Forced Induction
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 105 MM
- Throttle Body Gasket Included: Yes
- Throttle Body Included: No
- Vacuum Ports: Yes
Installation Notes:
*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
